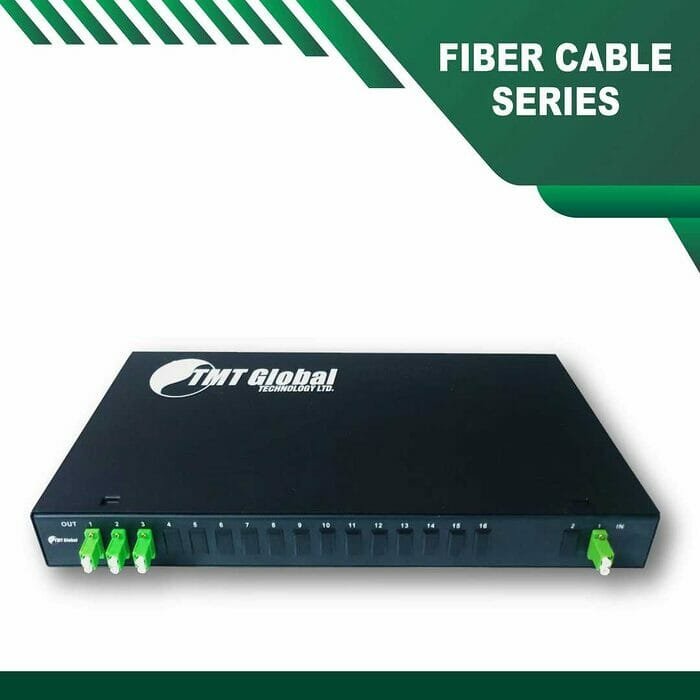

TMT Global fiber optic splitter LC-APC Rack Mounted 2X6
TMT Global Technology LTD aims to provide the best quality products r Structured Cabling Systems Copper And Fiber Optics Range Access Control Systems Gate Automation Lighting Control Systems Pir Motion Sensors UHF Long Range Readers Automatic Parking Solutions SMATV Systems Audio Video Intercom Systems Audio Visual Systems Public Address Systems. Industrial and Building automation Cables and Accessories which leads to Satisfaction and reliability to customers.fiber optic splitter LC-APC Rack Mounted 2X6
Features
Low Insertion loss
Low PDL
High Return Loss
Compact Design
Wide Operating Wavelength
Wide Operating Temperature
High Reliability and Stability
Uniform Power Splitting
Applications
Passive Optical Networks (PON)
Cable Television (CATV Links)
Local Area Networks (LAN)
Test Equipment’s
Optical Signal Distribution
FTTX Deployments (FTTP, FTTH, FTTN,
FTTC, FTTB
OPTICALÂ PARAMETER’S
Operating Wavelength : nm 1260 ~ 1650
Insertion Loss : Typ:8.6dB/Max: 9.2dB
Channel Uniformity: Typ:0.9dB / Max: 1.1dB
PDL: Typ:0.1dB / Max: 0.2dB
Wavelength dependent loss: Typ:0.1dB / Max: 0.3dB
Temperature stability: Typ:0.3dB / Max: 0.5dB
Return Loss : Min. dB 50
Directivity : Min. dB 55
Operating Temperature : °C -40 ~ 85
Storage Temperature :°C 40 ~ 85
Fiber Length : 1.0+/0.1 or Customer specified
Fiber Type : G.652D,G.657A1/A2
Connector Type :LC/APC
