Door Locks
Magnetic Door Lock single Door 280kg
SKU:
TMT-7646
General Specification
Lock Size : 170Lx35Wx21H(mm)
Armature plate : 130Lx33Wx9.3H(mm)
Holding Force : 280kg(350Lbs)
Voltage : DC12V or DC24V (adjustable)
Current Draw : 12V/500mA 24V/250mA
Signal Output : Dry Contact, Max Rating of Contact Current 3A
Surface Temp : ≤+20℃
Operating Temp: -10~+55℃(14-131F)
Finishes for Magnetic : Zinc
Weight : 1.1kg
Model No. : TMT-7646

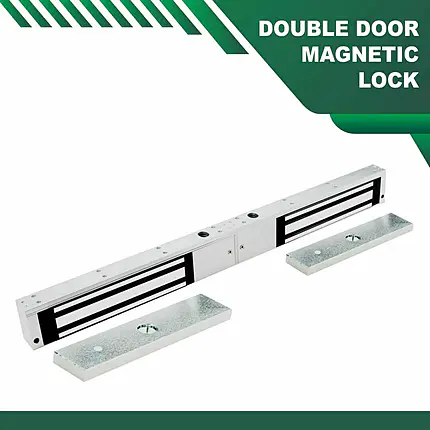

Magnetic Door Lock Double Door 500kg
SKU:
TMT-7649
General Specification
Lock Size: 500L*47W*26H(mm)
Armature plate : 180L*38W*11H(mm)
Holding Force : 280kg(350Lbs)
Voltage : DC12V or DC24V (adjustable)
Current Draw : 12V/500mA 24V/250mA
Signal Output: Dry Contact, Max Rating of Contact Current 3A
Surface Temp: ≤+20℃
Operating Temp: -10~+55℃(14-131F)
Finishes for Magnetic: Zinc
Weight : 4kg
Model No: TMT-7649
electric bolt glass lock
SKU:
TMT-7665
General Specification
Fail-Safe: Unlock when power off
Lock size : 150Lx42Wx37H(mm)
Magnet plate: size 150Lx42Wx20H(mm)
Lock pin: 12mmDIA, stainless steel 15mm throw
Voltage: DC12V
Start Current: 1.1A
Standby: Current 0.15A
Solid Lock Pin: Polishing housing, 1000Kg Holding Force
Suitable For: Non-frame glass door
Weight : 0.7kg
Carton size : 53Lx30Wx14H(cm)
Model No. : TMT-7665
electric bolt lock
SKU:
TMT-7664
General Specification
Voltage: DC12V)
Start Current: 900mA
Standby Current: 150mA
Fail-Safe: power to lock
Face Plate: 205Lx35WX41H(mm)
Strike plate: 90Lx25Wx2W(mm)
Surface Temp: Low Temperature
Operating Temp: -10~+55℃(14-131F)
Suitable For : Wooden Door, Glass Door, Metal Door, Glass Door
Weight : 0.7kg
Standard Packing : 30pcs
Model No. : TMT-7664
electric strike lock
SKU:
TMT-7667
General Specification
Voltage: DC12V)
Start Current: 900mA
Standby Current: 150mA
Fail-Safe: power to lock
Face Plate: 205Lx35WX41H(mm)
Strike plate: 90Lx25Wx2W(mm)
Surface Temp: Low Temperature
Operating Temp: -10~+55℃(14-131F)
Suitable For : Wooden Door, Glass Door, Metal Door, Glass Door
Weight : 0.7kg
Standard Packing : 30pcs
Model No. : TMT-7667
L bracket for magnetic locks
SKU:
TMT-7654
General Specification:
Feature: Fail Safe
Dimension : 170x38mm(180L)
Material :High Strength Aluminum, Sandblast Finished
Voltage: 12VDC/24V
Finished for Shell: Anodized aluminum
Opening Mode: 90 Degree Door
Weight : 0.24kg/0.32kg/0.5kg
Suitable For: Inner open wooden door, narrow box door, metal door
Model No. : TMT-7654
U bracket for glass
SKU:
TMT-7655
General Specification:
Feature: Fail Safe
Dimension:
130x46x28mm(180U)
182x45x28mm (280U)
185x70x39mm(500U)
Material: High Strength Aluminum, Sandblast Finished
Voltage : DC12V or DC24V (adjustable)
Voltage: 12VDC/24V
Finished for Shell: Anodized aluminium
Opening Mode: 90-Degree Door
Suitable For: Frameless Glass Door
Weight : 0.24kg/0.32kg/0.5kg
Model No. : TMT-7655
Bracket Z-L Magnetic Locks
SKU:
TMT-7653
General Specification
Material: High Strength Aluminum, Sandblast Finished
Suitable: Narrow Door
Opening Mode: 90-Degree Door
Finished for Shell: Anodized aluminium
Weight : 0.4kg/0.75kg/0.82kg/1.3kg/1.6kg
Certification: CE /MA
Material : Special alloy aluminium, flashing silver sandblasting
Suitable For : Inner open wooden door, narrow box door, metal door
Model No. : TMT-7653
