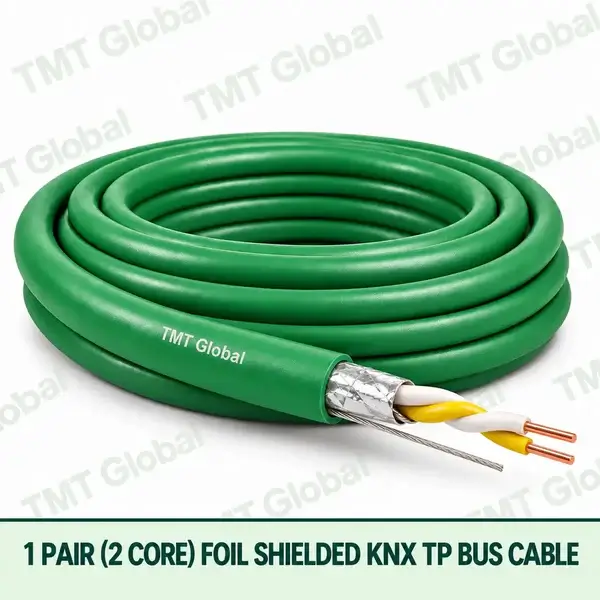

1 Pair (2 Core) Foil Shielded KNX TP Bus Cable
KEY FEATURES
- 1 × 2 × 0.8 mm solid bare-copper twisted-pair construction
- Overall aluminium/polyester foil + drain wire
- PVC green, LSZH green and PE Outdoor black ordering options
- 20 AWG item-code field representing the 0.8 mm KNX conductor format
- Exact searchable SKU for every standard jacket option
- 305 m standard TMT package; project lengths subject to release
Chat with Sales
| AWG | 20 awg |
|---|---|
| Colour | Green |
| Jacket Type | PVC, LSZH, PE Outdoor |
| Brand | TMT Global |
| Length | 305 m |
Supplied in Oman by Khan Cables from our Muscat office and showroom in Ruwi, for projects in Muscat and across the Sultanate. Request a quote
Full specifications & datasheet: tmtglobal.co.uk →
Description
TMT Global 1 Pair (2 Core) Foil Shielded KNX TP Bus Cable Series
TMT Global 1 Pair (2 Core) Foil Shielded KNX TP Bus Cable is a controlled twisted-pair cable family for KNX TP building-automation bus installations. This is a valid secondary market option for compact single-pair installations. The product page fixes the 1 × 2 × 0.8 mm foil shielded construction, while the TMT Series ordering table provides exact jacket-specific item codes for customer search, quotation and project selection.
KEY FEATURES
- 1 × 2 × 0.8 mm solid bare-copper twisted-pair construction
- Overall aluminium/polyester foil + drain wire
- PVC green, LSZH green and PE Outdoor black ordering options
- 20 AWG item-code field representing the 0.8 mm KNX conductor format
- Exact searchable SKU for every standard jacket option
- 305 m standard TMT package; project lengths subject to release
TYPICAL APPLICATIONS
- KNX TP bus lines and device interconnection
- Lighting, HVAC, blinds and room-control networks
- Residential, commercial, hospitality and public buildings
- Compact single-pair KNX TP installation
- Secondary compact KNX TP installations
Technical Specification
AWG / NOMINAL AREA / SERIES AVAILABILITY
