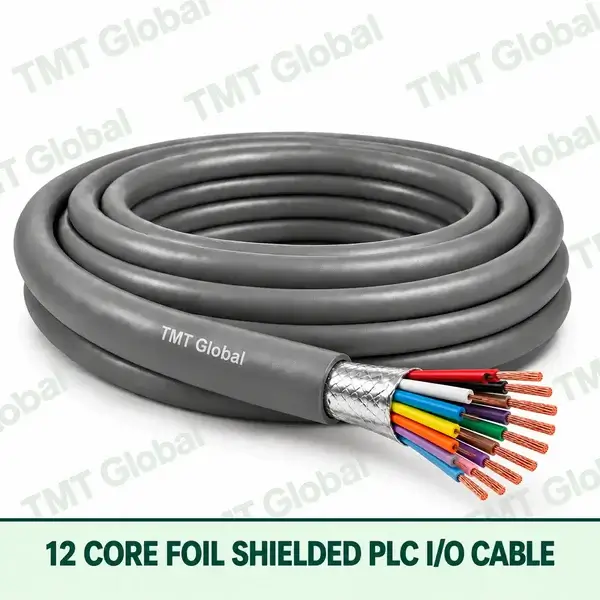

12 Core Foil Shielded PLC I/O Cable

Choosing the 12 Core Foil Shielded PLC I/O Cable

Twelve cores match a typical PLC I/O module, so one cable can connect a full card to a terminal or marshalling panel. An overall aluminium/polyester foil screen with drain wire blocks high-frequency interference, so it suits signal and data circuits that share containment with other cabling.

Related options in this range: 6 Core Foil Shielded PLC I/O Cable · 8 Core Foil Shielded PLC I/O Cable · 16 Core Foil Shielded PLC I/O Cable · 20 Core Foil Shielded PLC I/O Cable · 12 Core Foil + Braid Shielded PLC I/O Cable · 12 Core Unshielded PLC I/O Cable

Order code: 12S-PL. Send us the length, jacket and quantity for a project quotation and datasheet.

TMT Global 12 Core Foil Shielded PLC I/O Cable Series

TMT Global 12 Core Foil Shielded PLC I/O Cable is a configurable multicore cable family for digital and analogue PLC/DCS I/O signals between controller cabinets, remote-I/O stations, marshalling panels and field devices. The product page fixes the 12-core foil shielded construction, while the TMT Series ordering table provides exact AWG and jacket-specific item codes for customer search, quotation and project selection.

KEY FEATURES

• 12-core controlled construction
• Overall aluminium/polyester foil + drain wire
• 16, 18, 20, 22 and 24 AWG Series options
• PVC, LSZH and outdoor PE jacket choices
• Bare-copper conductor; solid or stranded by released drawing
• Exact searchable ordering code for every standard combination

TYPICAL APPLICATIONS

• PLC and DCS digital / analogue I/O circuits
• Remote-I/O racks, marshalling panels and controller cabinets
• Sensors, encoders, solenoids, valves and actuators
• OEM machine interfaces and industrial automation interconnection
• Protocol-specific network cables are listed separately under Bus Cables

Technical Specification

AWG / NOMINAL AREA / SERIES AVAILABILITY
