Choosing the 2 Core Foil-Shielded Security Control Cable

Two cores suit one device: a lock, exit button, door contact or a powered sensor. An overall aluminium/polyester foil screen with drain wire blocks high-frequency interference, so it suits signal and data circuits that share containment with other cabling.

Related options in this range: 4 Core Foil Shielded Control Cable · 5 Core Foil Shielded Control Cable

Order code: 02S-ST. Send us the length, jacket and quantity for a project quotation and datasheet.

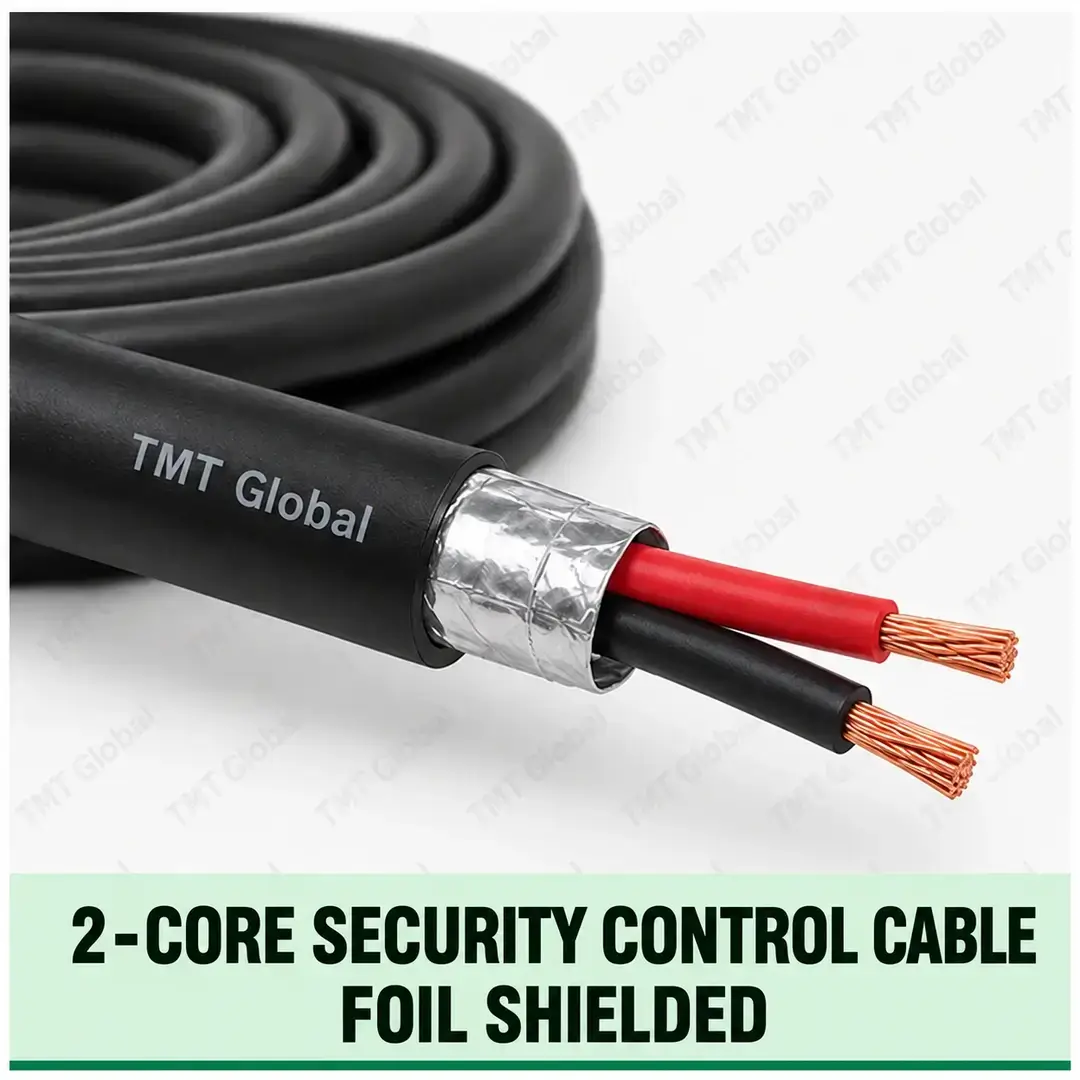

TMT 2 Core Foil-Shielded Security Control Cable Series

TMT Global 2 Core Foil-Shielded Security Control Cable is a controlled low-voltage Security & ELV cable family for General security control, dry-contact and auxiliary I/O wiring. The product page fixes the 2-core foil-shielded round construction, while 18 / 20 / 22 AWG and PVC / LSZH / PE Outdoor variants remain exact searchable TMT Series rows.

KEY FEATURES

2-core round security-control construction
Overall foil screen + drain wire
18 / 20 / 22 AWG Series range
PVC / LSZH / PE Outdoor variants
305 m standard package

APPLICATIONS

Security control panels
Relay / dry-contact circuits
Supervisory and auxiliary I/O
General security-device interconnection
Power-limited control interfaces

Technical Specification

TECHNICAL SPECIFICATION	VALUE
Product family	2 Core Foil-Shielded Security Control Cable
Series	02S-ST
Primary application	General security-system / power-limited control wiring; non-protocol auxiliary and supervisory circuits
Core configuration	2 conductors
Conductor material	Bare copper
Available conductor sizes	18 AWG / 20 AWG / 22 AWG
Screening	Overall foil screen + drain wire
Cable form	Round
Outer-jacket options	PVC / LSZH / PE Outdoor
Standard colours	Grey indoor; Black outdoor
Standard package	305 m
Cable type	Security control cable
Series variants	18 / 20 / 22 AWG with PVC / LSZH / PE Outdoor options
