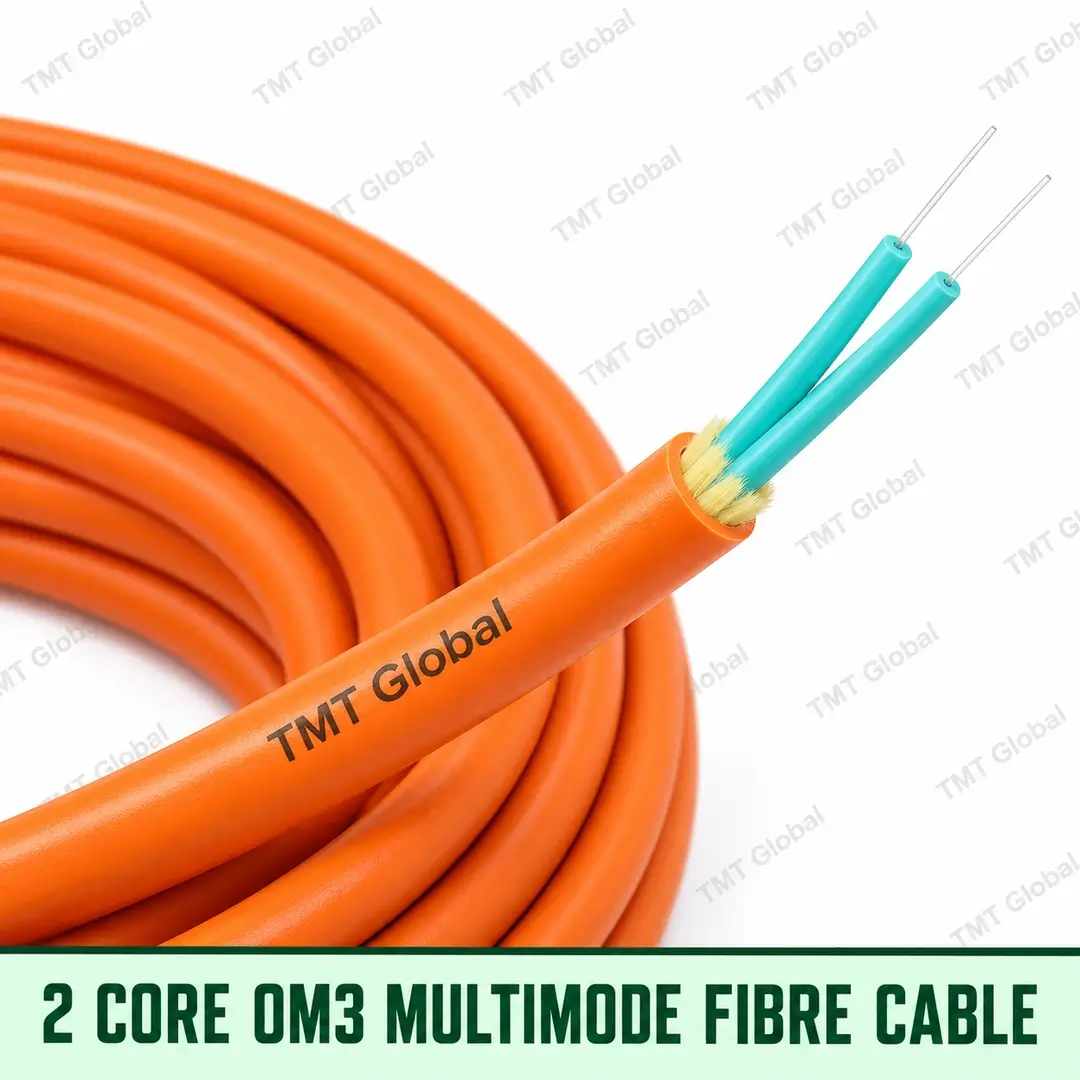

2 Core OM3 laser-optimised multimode Tight-buffered distribution cable
KEY FEATURES
- 2 fibre core construction / 4 fibre core construction / 8 fibre core construction / 12 fibre core construction / 24 fibre core construction / 48 fibre core construction
- OM3 laser-optimised multimode 50/125 um
- Tight-buffered distribution cable / Indoor/outdoor tight-buffered cable / Outdoor loose-tube cable
- LSZH indoor jacket / LSZH indoor/outdoor jacket / UV-resistant PE/HDPE outdoor jacket
- Bend-radius controlled cable design
- RoHS / REACH material declarations required
- Low-smoke zero-halogen jacket for building use / Water-blocked / outdoor-ready construction
| Brand | TMT Global |
|---|
Supplied in Oman by Khan Cables from our Muscat office and showroom in Ruwi, for projects in Muscat and across the Sultanate. Request a quote
Full specifications & datasheet: tmtglobal.co.uk →
Choosing the 2 Core OM3 laser-optimised multimode Tight-buffered distribution cable
Two fibres suit a single link: an FTTH drop, a CCTV camera or one switch-to-switch connection, with a spare. OM3 laser-optimised fibre carries 10 Gb up to 300 m and 40/100 Gb up to 100 m. Non-armoured construction keeps it light for ducts, trays and indoor/outdoor routes with mechanical protection.
Related options in this range: 2 Core OM5 wideband multimode Tight-buffered distribution cable · 2 Core OM4 laser-optimised multimode Tight-buffered distribution cable · 2 Core OM2 multimode Tight-buffered distribution cable · 2 Core OS2 / G.652.D Tight-buffered distribution cable · 1 Core G.657.A1 bend-insensitive Tight-buffered distribution cable
Order code: TMT-FOC-OM3-002F-TB-LSZH. Send us the length, jacket and quantity for a project quotation and datasheet.
TMT Global 2 Core OM3 laser-optimised multimode Tight-buffered distribution cable Series
The 2 Core OM3 laser-optimised multimode Tight-buffered distribution cable is a TMT Global fibre optic cable designed for indoor backbone, riser, telecom room and cabinet links. The cable uses OM3 laser-optimised multimode 50/125 um fibre with tight-buffered 900 um fibre construction and lszh indoor jacket, providing a controlled product baseline for website publication, catalogue listing and OEM manufacturing reference.
KEY FEATURES
- 2 fibre core construction / 4 fibre core construction / 8 fibre core construction / 12 fibre core construction / 24 fibre core construction / 48 fibre core construction
- OM3 laser-optimised multimode 50/125 um
- Tight-buffered distribution cable / Indoor/outdoor tight-buffered cable / Outdoor loose-tube cable
- LSZH indoor jacket / LSZH indoor/outdoor jacket / UV-resistant PE/HDPE outdoor jacket
- Bend-radius controlled cable design
- RoHS / REACH material declarations required
- Low-smoke zero-halogen jacket for building use / Water-blocked / outdoor-ready construction
APPLICATIONS
- Indoor riser and backbone fibre
- Telecom rooms and rack/cabinet links
- Enterprise LAN and ELV networks
- Data-centre distribution
- Building fibre infrastructure
OEM / PUBLICATION POSITIONING
Supplier must provide datasheet, construction drawing and applicable test/conformity evidence matching this TMT SKU
STANDARDS / TEST BASIS
- Standards Framework — IEC 60793, IEC 60794, ISO/IEC 11801, EN 50173 and applicable ITU-T fibre recommendation
- Fire / Cpr — Halogen-free and Euroclass Cca-s1b,d2,a2 where permanent-building authority requirement applies; IEC/EN 60332-1-2 minimum flame test where applicable.
- Material Compliance — RoHS and REACH declarations required from supplier
QUALITY / ACCEPTANCE
- Supplier must provide datasheet, construction drawing and applicable test/conformity evidence matching this TMT SKU
- TMT-FOC-OM3-002F-TB-LSZH defines fibre grade, core count, construction and jacket. Do not substitute construction without TMT approval.
TECHNICAL SPECIFICATION
