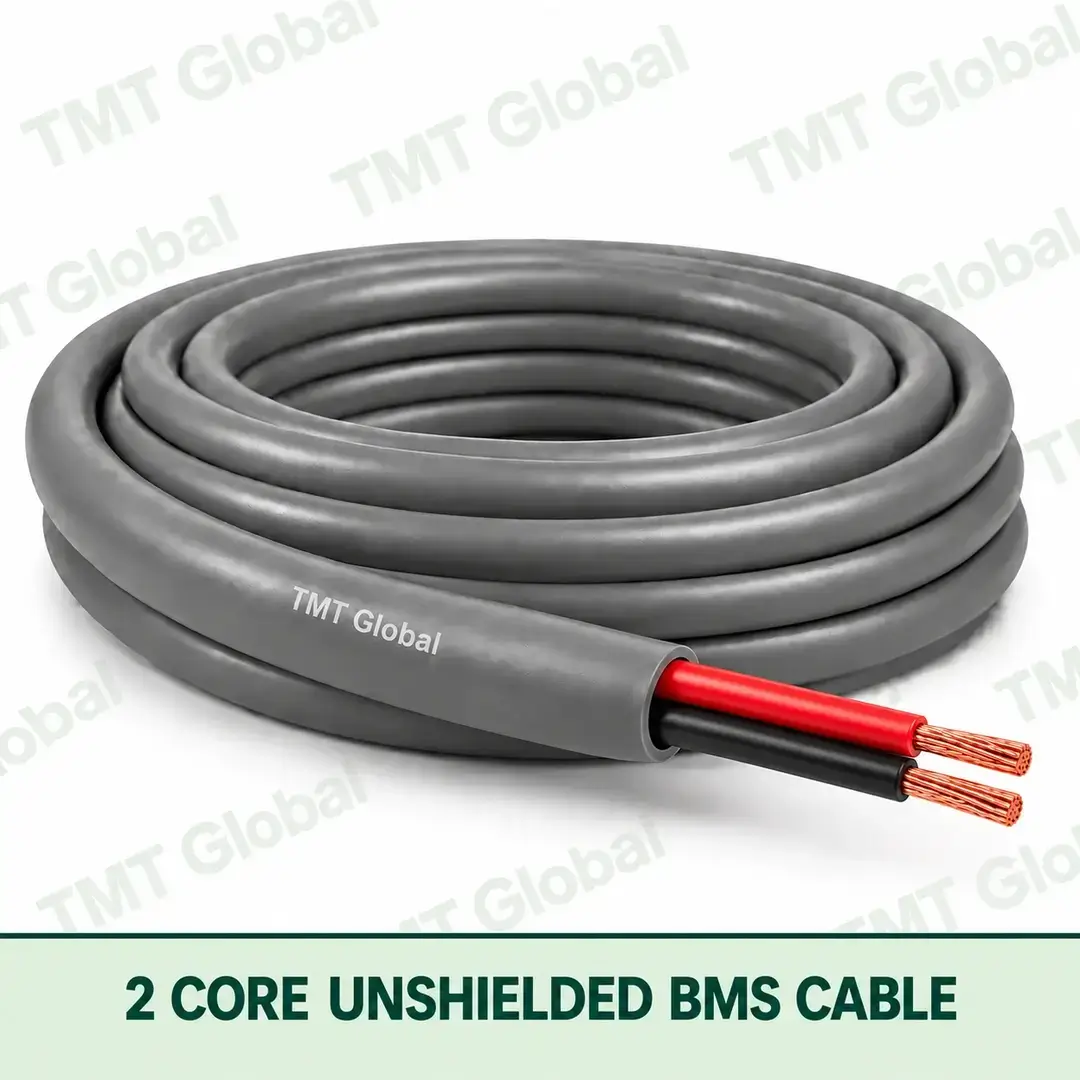

TMT Global 2 Core Unshielded BMS Cable product cable with 2 clearly visible conductors; unshielded.

2 Core Unshielded BMS Cable

KEY FEATURES

  • 2-core controlled construction
  • No metallic screen
  • 12, 14, 16, 18, 20, 22, 23 and 24 AWG Series options
  • PVC, LSZH and outdoor PE jacket choices
  • Bare-copper conductor; solid or stranded by released drawing
  • Exact searchable ordering code for every standard combination
Chat with Sales
AWG12 awg, 14 awg, 16 awg, 18 awg, 20 awg, 22 awg, 23 awg, 24 awg
BrandTMT Global
Jacket TypePVC, LSZH, PE Outdoor
ColourBlack, Grey
Length305 m

Supplied in Oman by Khan Cables from our Muscat office and showroom in Ruwi, for projects in Muscat and across the Sultanate. Request a quote

View / Print DatasheetContact Sales
Description

Choosing the 2 Core Unshielded BMS Cable

Two cores connect a single BMS point, such as a sensor, damper or valve actuator, to its controller. No metallic screen keeps it light, flexible and quick to terminate; choose it for clean electrical environments where the route stays away from mains power and motor drives.

Related options in this range: 3 Core Unshielded BMS Cable · 4 Core Unshielded BMS Cable · 2 Core Foil + Braid Shielded BMS Cable · 2 Core Foil Shielded BMS Cable

Order code: 02U-BS. Send us the length, jacket and quantity for a project quotation and datasheet.

TMT Global 2 Core Unshielded BMS Cable Series

TMT Global 2 Core Unshielded BMS Cable is a configurable building-management-system cable family for low-voltage control, monitoring, input/output and equipment interconnection. The product page fixes the 2-core unshielded construction, while the TMT Series ordering table provides exact AWG and jacket-specific item codes for customer search and quotation.

KEY FEATURES

  • 2-core controlled construction
  • No metallic screen
  • 12, 14, 16, 18, 20, 22, 23 and 24 AWG Series options
  • PVC, LSZH and outdoor PE jacket choices
  • Bare-copper conductor; solid or stranded by released drawing
  • Exact searchable ordering code for every standard combination

TYPICAL APPLICATIONS

  • BMS controller and field-device wiring
  • HVAC control panels and plant rooms
  • Sensors, actuators, valves and damper interfaces
  • Input/output and low-voltage control circuits
  • Commercial buildings, hospitality, healthcare and infrastructure

Technical Specification

PARAMETER TECHNICAL SPECIFICATION
Product type BMS control cable
Typical use Low-voltage control, monitoring, input/output and equipment interconnection
Core configuration 2 insulated cores
Conductor material Bare copper
Conductor construction Solid or stranded Series constructions
Available conductor sizes 12 / 14 / 16 / 18 / 20 / 22 / 23 / 24 AWG
Screening No metallic screen
Outer-jacket options PVC / LSZH / PE Outdoor
Cable form Round
Standard colours Grey for PVC/LSZH; black for PE Outdoor
Package length 305 m

AWG / NOMINAL AREA / SERIES AVAILABILITY

AWG NOMINAL AREA SERIES AVAILABILITY
12 AWG 3.31 mm² PVC / LSZH / PE Outdoor  •  305 m  •  Project engineering
14 AWG 2.08 mm² PVC / LSZH / PE Outdoor  •  305 m  •  Project engineering
16 AWG 1.31 mm² PVC / LSZH / PE Outdoor  •  305 m  •  Made to order
18 AWG 0.823 mm² PVC / LSZH / PE Outdoor  •  305 m  •  Standard range
20 AWG 0.519 mm² PVC / LSZH / PE Outdoor  •  305 m  •  Standard range
22 AWG 0.326 mm² PVC / LSZH / PE Outdoor  •  305 m  •  Standard range
23 AWG 0.258 mm² PVC / LSZH / PE Outdoor  •  305 m  •  Made to order
24 AWG 0.205 mm² PVC / LSZH / PE Outdoor  •  305 m  •  Standard range
Download

visit: www.tmtglobal.co.uk

UL
BASEC
Intertek
IEC
ISO
SIRA
rohs
etisalat
DU
tmt global
tmt global
COO
Ordering Information
Item NameItem Code / SKUSeriesAWG / mm²JacketColourPackQR Code
2 Core Unshielded BMS Cable02U-BS12 awgPVCGrey305 m QR code for 0212BPURG-BS
2 Core Unshielded BMS Cable02U-BS12 awgLSZHGrey305 m QR code for 0212BLURG-BS
2 Core Unshielded BMS Cable02U-BS12 awgPE OutdoorBlack305 m QR code for 0212BKURK-BS
2 Core Unshielded BMS Cable02U-BS14 awgPVCGrey305 m QR code for 0214BPURG-BS
2 Core Unshielded BMS Cable02U-BS14 awgLSZHGrey305 m QR code for 0214BLURG-BS
2 Core Unshielded BMS Cable02U-BS14 awgPE OutdoorBlack305 m QR code for 0214BKURK-BS
2 Core Unshielded BMS Cable02U-BS16 awgPVCGrey305 m QR code for 0216BPURG-BS
2 Core Unshielded BMS Cable02U-BS16 awgLSZHGrey305 m QR code for 0216BLURG-BS
2 Core Unshielded BMS Cable02U-BS16 awgPE OutdoorBlack305 m QR code for 0216BKURK-BS
2 Core Unshielded BMS Cable02U-BS18 awgPVCGrey305 m QR code for 0218BPURG-BS
2 Core Unshielded BMS Cable02U-BS18 awgLSZHGrey305 m QR code for 0218BLURG-BS
2 Core Unshielded BMS Cable02U-BS18 awgPE OutdoorBlack305 m QR code for 0218BKURK-BS
2 Core Unshielded BMS Cable02U-BS20 awgPVCGrey305 m QR code for 0220BPURG-BS
2 Core Unshielded BMS Cable02U-BS20 awgLSZHGrey305 m QR code for 0220BLURG-BS
2 Core Unshielded BMS Cable02U-BS20 awgPE OutdoorBlack305 m QR code for 0220BKURK-BS
2 Core Unshielded BMS Cable02U-BS22 awgPVCGrey305 m QR code for 0222BPURG-BS
2 Core Unshielded BMS Cable02U-BS22 awgLSZHGrey305 m QR code for 0222BLURG-BS
2 Core Unshielded BMS Cable02U-BS22 awgPE OutdoorBlack305 m QR code for 0222BKURK-BS
2 Core Unshielded BMS Cable02U-BS23 awgPVCGrey305 m QR code for 0223BPURG-BS
2 Core Unshielded BMS Cable02U-BS23 awgLSZHGrey305 m QR code for 0223BLURG-BS
2 Core Unshielded BMS Cable02U-BS23 awgPE OutdoorBlack305 m QR code for 0223BKURK-BS
2 Core Unshielded BMS Cable02U-BS24 awgPVCGrey305 m QR code for 0224BPURG-BS
2 Core Unshielded BMS Cable02U-BS24 awgLSZHGrey305 m QR code for 0224BLURG-BS
2 Core Unshielded BMS Cable02U-BS24 awgPE OutdoorBlack305 m QR code for 0224BKURK-BS
