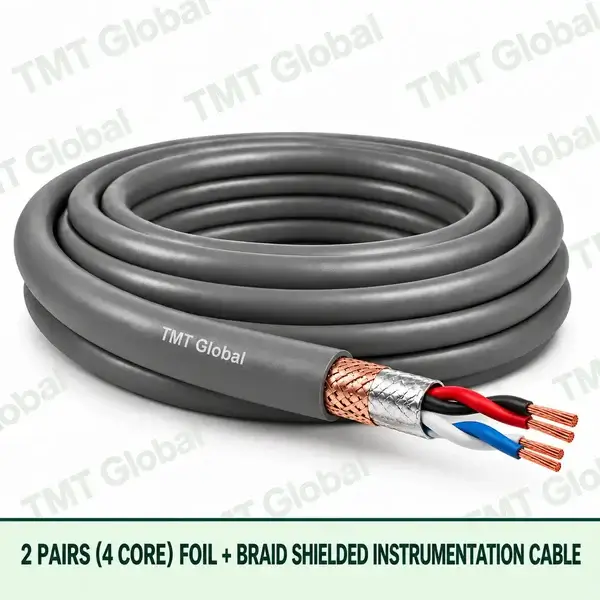

2 Pairs (4 Core) Foil + Braid Shielded Instrumentation Cable
KEY FEATURES
- 2 Pairs (4 Core) controlled twisted-pair construction
- Individually foil-screened pairs/triads plus overall foil and tinned-copper braid
- 14, 16, 18, 20, 22 and 24 AWG Series options
- PVC, LSZH and outdoor PE jacket choices
- Bare-copper conductor; solid or stranded by released drawing
- Exact searchable ordering code for every standard combination
| Length | 305 m |
|---|---|
| Colour | Black, Grey |
| Jacket Type | PVC, LSZH, PE Outdoor |
| AWG | 14 awg, 16 awg, 18 awg, 20 awg, 22 awg, 24 awg |
| Brand | TMT Global |
Supplied in Oman by Khan Cables from our Muscat office and showroom in Ruwi, for projects in Muscat and across the Sultanate. Request a quote
Full specifications & datasheet: tmtglobal.co.uk →
Choosing the 2 Pairs (4 Core) Foil + Braid Shielded Instrumentation Cable
Two pairs serve one or two 4–20 mA loops, the typical run from a single transmitter to its junction box. Foil plus tinned-copper braid gives the strongest protection against electrical noise and adds mechanical strength, which is why it is the usual choice in plant rooms, near VFDs and motors, and across industrial sites.
Related options in this range: 1 Pair (2 Core) Foil + Braid Shielded Instrumentation Cable · 1 Triad (3 Core) Foil + Braid Shielded Instrumentation Cable · 2 Triads (6 Core) Foil + Braid Shielded Instrumentation Cable · 4 Pairs (8 Core) Foil + Braid Shielded Instrumentation Cable · 2 Pairs (4 Core) Foil Shielded Instrumentation Cable · 2 Pairs (4 Core) Unshielded Instrumentation Cable
Order code: P02B-MC. Send us the length, jacket and quantity for a project quotation and datasheet.
TMT 2 Pairs (4 Core) Foil + Braid Shielded Instrumentation Cable Series
TMT Global 2 Pairs (4 Core) Foil + Braid Shielded Instrumentation Cable is a configurable instrumentation-cable family for analogue, digital and process-control signals between field instruments, control panels, PLC/DCS systems and monitoring equipment. The product page fixes the 2 pairs (4 core) foil + braid shielded construction, while the TMT Series ordering table provides exact AWG and jacket-specific item codes for customer search, quotation and project selection.
KEY FEATURES
- 2 Pairs (4 Core) controlled twisted-pair construction
- Individually foil-screened pairs/triads plus overall foil and tinned-copper braid
- 14, 16, 18, 20, 22 and 24 AWG Series options
- PVC, LSZH and outdoor PE jacket choices
- Bare-copper conductor; solid or stranded by released drawing
- Exact searchable ordering code for every standard combination
TYPICAL APPLICATIONS
- 4–20 mA and 0–10 V instrumentation loops
- Process measurement, transmitters and monitoring circuits
- PLC/DCS analogue and digital I/O wiring
- RTD, valve, actuator and positioner circuits
- Industrial plants, utilities and building-services systems
Technical Specification
AWG / NOMINAL AREA MATRIX
