24 Fibre Heat-Shrink Dome Closure
KEY FEATURES
- Protected splice tray organisation
- Controlled fibre bend radius and storage
- Cable entry, sealing and strain relief
- Re-entry/service access appropriate to sealing type
- Identification and routing provision
- Corrosion-resistant non-metallic or protected hardware
- Suitable for OS2 and multimode passive fibre routes
| Brand | TMT Global |
|---|
Supplied in Oman by Khan Cables from our Muscat office and showroom in Ruwi, for projects in Muscat and across the Sultanate. Request a quote
Full specifications & datasheet: tmtglobal.co.uk →

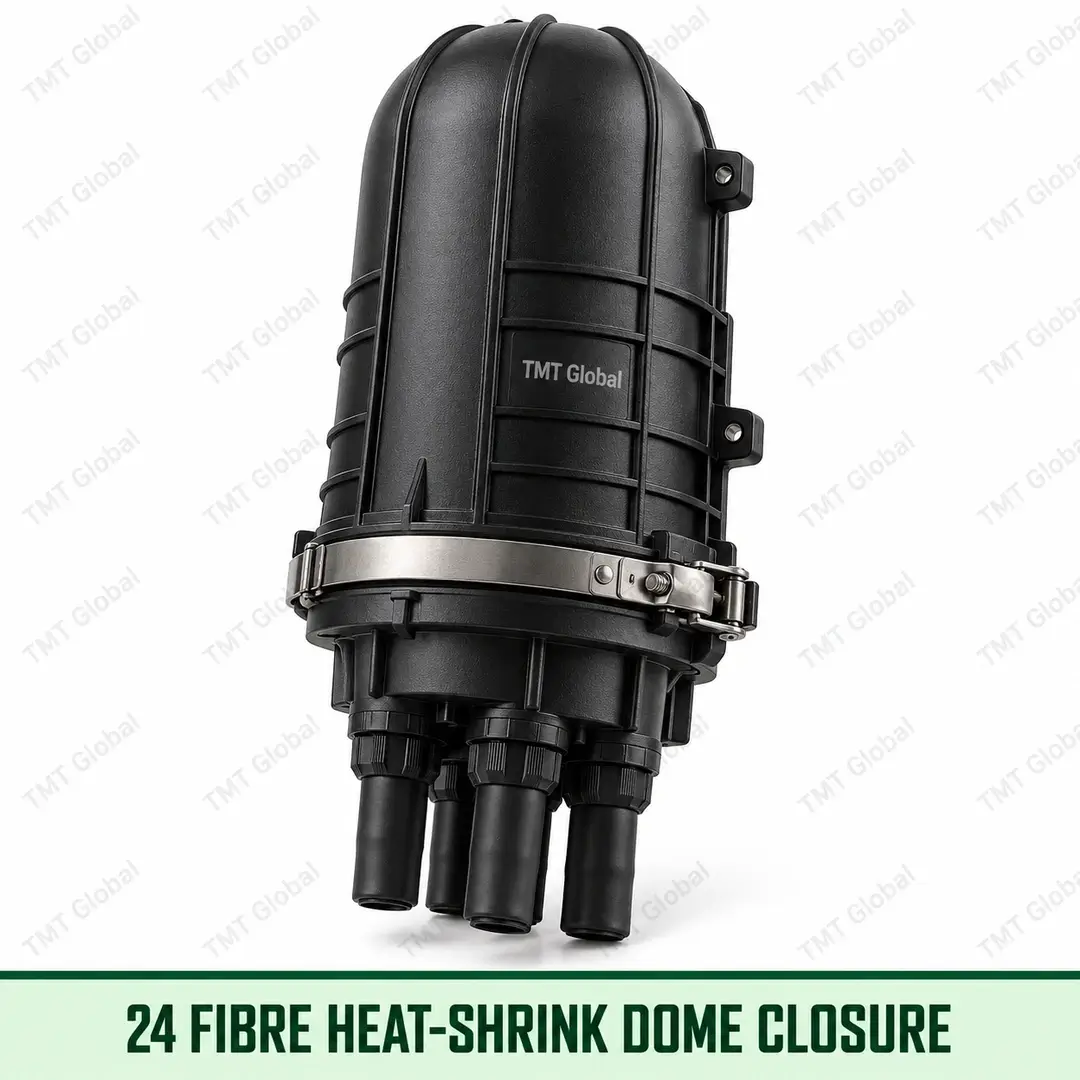

TMT Global 24 Fibre Heat-Shrink Dome Closure Series
The TMT Global 24 Fibre Heat-Shrink Dome Closure is a passive optical network enclosure for protected fibre splicing, routing and storage in aerial deployments. The TMT-24-D-A-4-H-N is configured for up to 24 fibres with 4 nominal cable-entry ports, heat-shrink sealing and dedicated splice-management capacity. The closure is intended for telecom, FTTH, campus, CCTV and structured fibre infrastructure where controlled bend radius, cable strain relief and service access are required.
KEY FEATURES
- Protected splice tray organisation
- Controlled fibre bend radius and storage
- Cable entry, sealing and strain relief
- Re-entry/service access appropriate to sealing type
- Identification and routing provision
- Corrosion-resistant non-metallic or protected hardware
- Suitable for OS2 and multimode passive fibre routes
APPLICATIONS
- Aerial fibre joints
- FTTH / FTTx distribution
- Campus and backbone fibre
- Telecom access networks
- CCTV / ELV fibre links
- Building and outside-plant transition points
OEM / PUBLICATION POSITIONING
Installation shall maintain minimum fibre bend radius, cable strain relief, splice protection and sealing integrity. OEM shall submit the production drawing, tray arrangement, supported cable-diameter range, material declaration, dimensional tolerances, sealing/IP test evidence where claimed, temperature/environmental qualification, packaging specification and pre-production sample for TMT approval. No change to TMT-24-D-A-4-H-N construction or declared capacity is permitted without TMT approval.
STANDARDS / TEST BASIS
- IEC 61758 series — fibre optic interconnecting devices and passive components: closures
- IEC 61300 series — basic test and measurement procedures for fibre optic interconnecting devices/passive components
- IEC 60529 — ingress protection classification where an IP claim is declared
- ISO/IEC 11801 / EN 50173 — structured cabling system application context
- RoHS / REACH declarations for supplied materials where applicable
QUALITY / ACCEPTANCE
- Installation shall maintain minimum fibre bend radius, cable strain relief, splice protection and sealing integrity. OEM shall submit the production drawing, tray arrangement, supported cable-diameter range, material declaration, dimensional tolerances, sealing/IP test evidence where claimed, temperature/environmental qualification, packaging specification and pre-production sample for TMT approval. No change to TMT-24-D-A-4-H-N construction or declared capacity is permitted without TMT approval.
TECHNICAL SPECIFICATION
