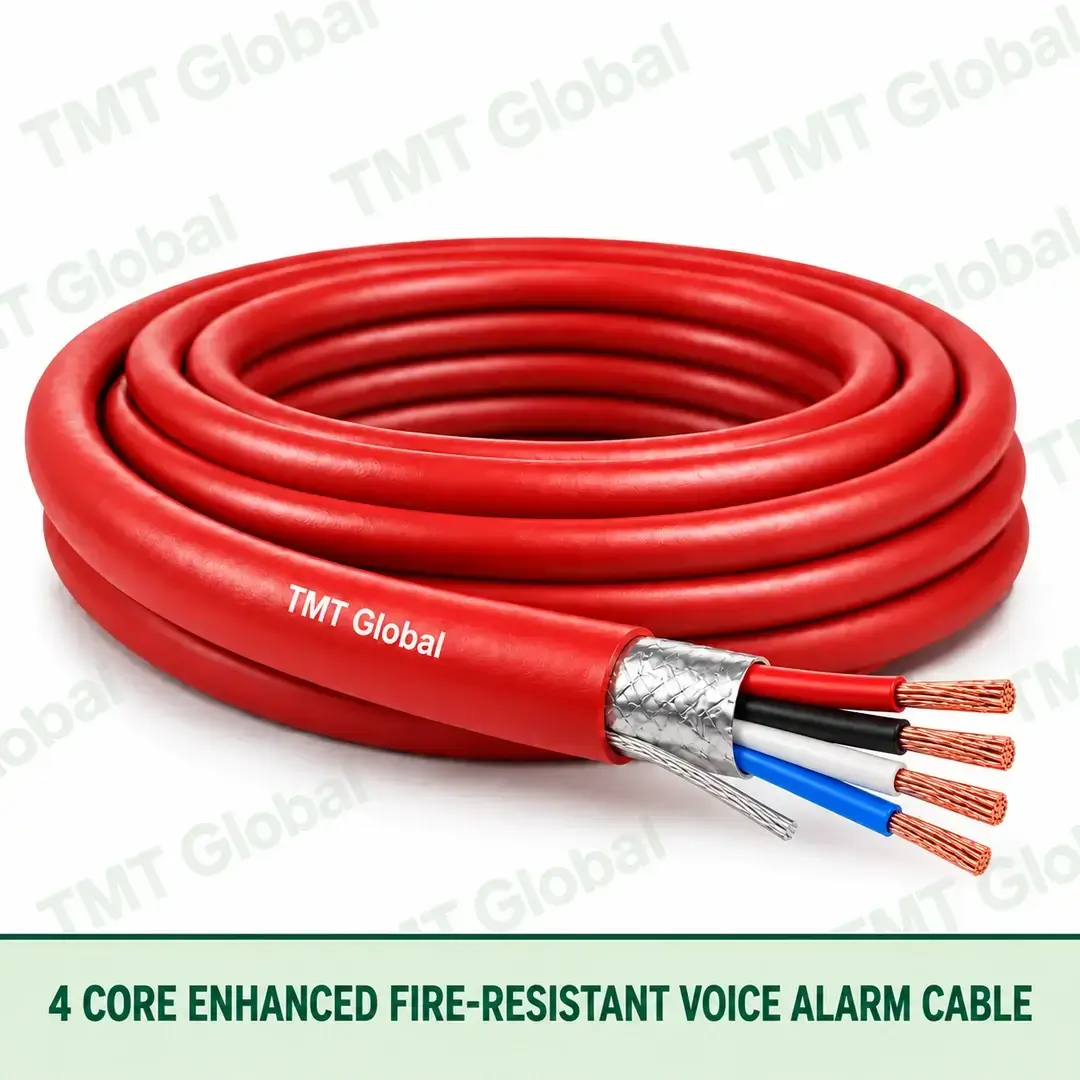

4 Core Enhanced Fire-Resistant Voice Alarm Cable

KEY FEATURES

4 copper conductors with enhanced fire-resistant insulation system
Overall foil screen and drain wire
LSZH sheath for critical public buildings
Red, orange and white project colours
Enhanced fire-resistance target subject to evidence

Chat with Sales

Jacket Type

LSZH

Colour

Orange, Red, White

AWG

14 awg, 16 awg, 18 awg

Brand

TMT Global

Length

305 m

Supplied in Oman by Khan Cables from our Muscat office and showroom in Ruwi, for projects in Muscat and across the Sultanate. Request a quote

Choosing the 4 Core Enhanced Fire-Resistant Voice Alarm Cable

Four cores carry 2 speaker lines or a speaker line plus control in one run.

Order code: 04C-S-VE. Send us the length, jacket and quantity for a project quotation and datasheet.

TMT Global 4 Core Enhanced Fire-Resistant Voice Alarm Cable Series

TMT Global 4 Core Enhanced Fire-Resistant Voice Alarm Cable is an enhanced circuit-integrity family for voice-alarm, emergency communication and evacuation systems that must continue operating under severe fire conditions. Enhanced or PH120 claims remain blocked until the exact factory construction is supported by accepted test evidence.

KEY FEATURES

4 copper conductors with enhanced fire-resistant insulation system
Overall foil screen and drain wire
LSZH sheath for critical public buildings
Red, orange and white project colours
Enhanced fire-resistance target subject to evidence

TYPICAL APPLICATIONS

Multi-phase evacuation systems
Enhanced voice-alarm circuits
Emergency voice communication
High-rise and critical buildings
Fire-safety communication backbones

Technical Specification

PARAMETER	SPECIFICATION
Product type	Fire-resistant screened voice-alarm / emergency communication cable
Geometry / configuration	4 core
Conductor material	Bare copper
Conductor construction	Stranded copper conductors
Available conductor sizes	14 AWG / 16 AWG / 18 AWG
Fire-resistance family	Enhanced fire-resistant construction family; exact tested classification supplied with approved product documentation
Core / pair construction	4 core; colour-coded insulated conductors with fire-resistant insulation system
Screening	Overall foil screen
Drain wire	Drain wire included
Outer-jacket options	Fire-resistant LSZH
Cable form	Round
Standard colours	Red / Orange / White
Package length	305 m standard package
Typical applications	Voice-alarm, emergency communication and public-address evacuation circuits

AWG / NOMINAL AREA / SERIES AVAILABILITY

AWG	NOMINAL AREA	SERIES AVAILABILITY
14 AWG	2.08 mm²	Fire-resistant LSZH • Red / Orange / White • 305 m
16 AWG	1.31 mm²	Fire-resistant LSZH • Red / Orange / White • 305 m
18 AWG	0.823 mm²	Fire-resistant LSZH • Red / Orange / White • 305 m
