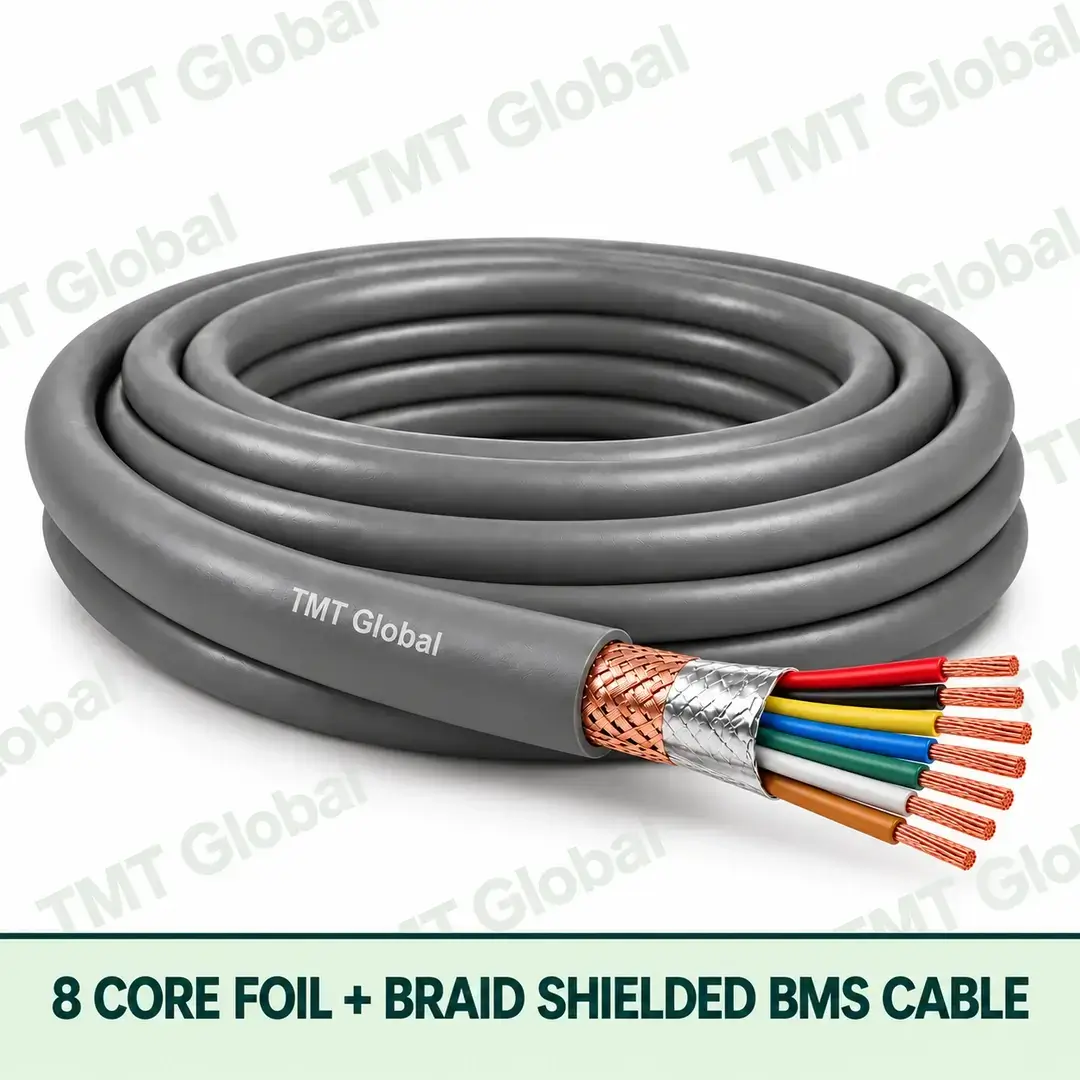

8 Core Foil + Braid Shielded BMS Cable
KEY FEATURES
- 8-core controlled construction
- Overall foil + tinned-copper braid + drain wire
- 12, 14, 16, 18, 20, 22, 23 and 24 AWG Series options
- PVC, LSZH and outdoor PE jacket choices
- Bare-copper conductor; solid or stranded by released drawing
- Exact searchable ordering code for every standard combination
| AWG | 12 awg, 14 awg, 16 awg, 18 awg, 20 awg, 22 awg, 23 awg, 24 awg |
|---|---|
| Brand | TMT Global |
| Colour | Black, Grey |
| Jacket Type | PVC, LSZH, PE Outdoor |
| Length | 305 m |
Supplied in Oman by Khan Cables from our Muscat office and showroom in Ruwi, for projects in Muscat and across the Sultanate. Request a quote
Full specifications & datasheet: tmtglobal.co.uk →
Choosing the 8 Core Foil + Braid Shielded BMS Cable
Eight cores serve a group of BMS points from one field controller, for example an air-handling unit’s sensors and actuators. Foil plus tinned-copper braid gives the strongest protection against electrical noise and adds mechanical strength, which is why it is the usual choice in plant rooms, near VFDs and motors, and across industrial sites.
Related options in this range: 4 Core Foil + Braid Shielded BMS Cable · 6 Core Foil + Braid Shielded BMS Cable · 10 Core Foil + Braid Shielded BMS Cable · 12 Core Foil + Braid Shielded BMS Cable · 8 Core Foil Shielded BMS Cable · 8 Core Unshielded BMS Cable
Order code: 08B-BS. Send us the length, jacket and quantity for a project quotation and datasheet.
TMT Global 8 Core Foil + Braid Shielded BMS Cable Series
TMT Global 8 Core Foil + Braid Shielded BMS Cable is a configurable building-management-system cable family for low-voltage control, monitoring, input/output and equipment interconnection. The product page fixes the 8-core foil + braid shielded construction, while the TMT Series ordering table provides exact AWG and jacket-specific item codes for customer search and quotation.
KEY FEATURES
- 8-core controlled construction
- Overall foil + tinned-copper braid + drain wire
- 12, 14, 16, 18, 20, 22, 23 and 24 AWG Series options
- PVC, LSZH and outdoor PE jacket choices
- Bare-copper conductor; solid or stranded by released drawing
- Exact searchable ordering code for every standard combination
TYPICAL APPLICATIONS
- BMS controller and field-device wiring
- HVAC control panels and plant rooms
- Sensors, actuators, valves and damper interfaces
- Input/output and low-voltage control circuits
- Commercial buildings, hospitality, healthcare and infrastructure
Technical Specification
AWG / NOMINAL AREA / SERIES AVAILABILITY
