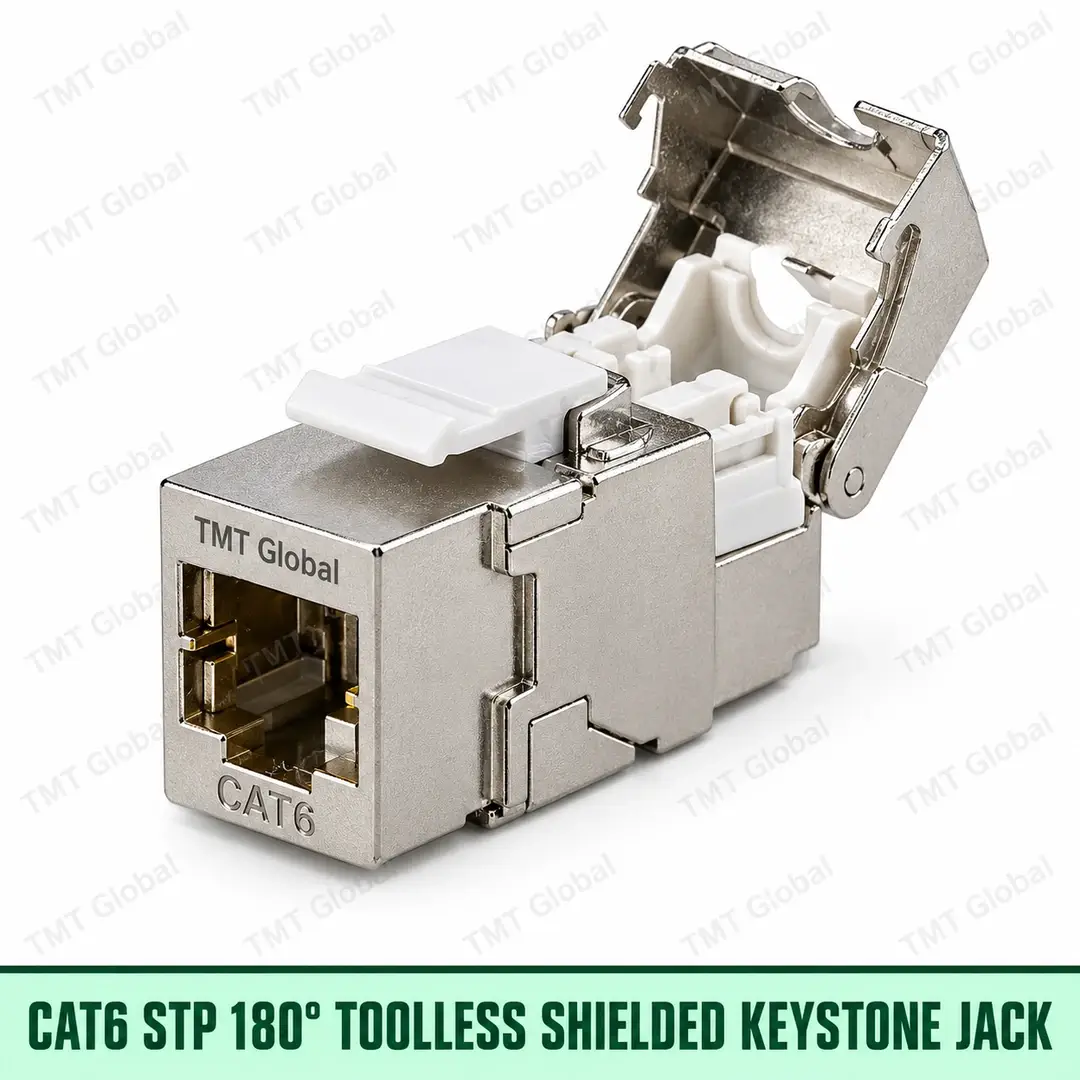

Cat6 STP 180° Toolless Shielded Keystone Jack

TMT Global Cat6 STP 180° Toolless Shielded Keystone Jack Series

The TMT Global Cat6 STP 180° Toolless Shielded Keystone Jack is a controlled keystone connectivity product for Cat6 / Class E structured cabling terminations. It provides a standards-aligned RJ45 8P8C interface with toolless termination, 180° straight geometry and f/utp / shielded construction. The product is intended for professional network installations where repeatable termination, reliable contact performance and consistent TMT specification control are required.

FEATURES

• Cat6 / Class E transmission target
• 1–250 MHz performance range
• F/UTP / Shielded RJ45 8P8C interface
• Toolless termination
• T568A / T568B wiring identification
• 360° shield continuity / earthing path

APPLICATIONS

• Shielded structured cabling
• Data centres
• Industrial LAN
• Security networks
• High-EMI environments

Technical Specification

STANDARDS & COMPLIANCE

• IEC 60603-7-5:2010
• ISO/IEC 11801-1 structured cabling system application
• Shield continuity / bonding path for screened cabling
• ANSI/TIA-568.2-D where applicable
• EN 50173 where applicable
• UL 94 V-0 polymer components
• RoHS
• REACH

AUTHORITY FIRE-PERFORMANCE NOTE

Keystone jacks are connectivity hardware, not permanent telecom cables. Euroclass/CPR
cable fire-rating and IEC/EN 60332-1-2 cable flame tests are not applied to this hardware
unless a specific accredited assembly test covers the product Use UL 94 V-0 for applicable
plastic parts.

PRODUCT CONTROL STATEMENT

This SKU is defined by the published TMT website datasheet specification. Any OEM
production must match the listed construction, interface, category, termination and
compliance requirements and provide supporting test conformity evidence.
