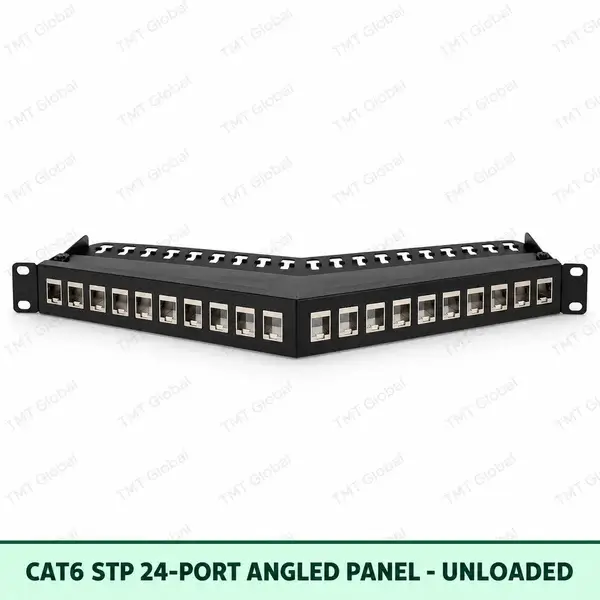

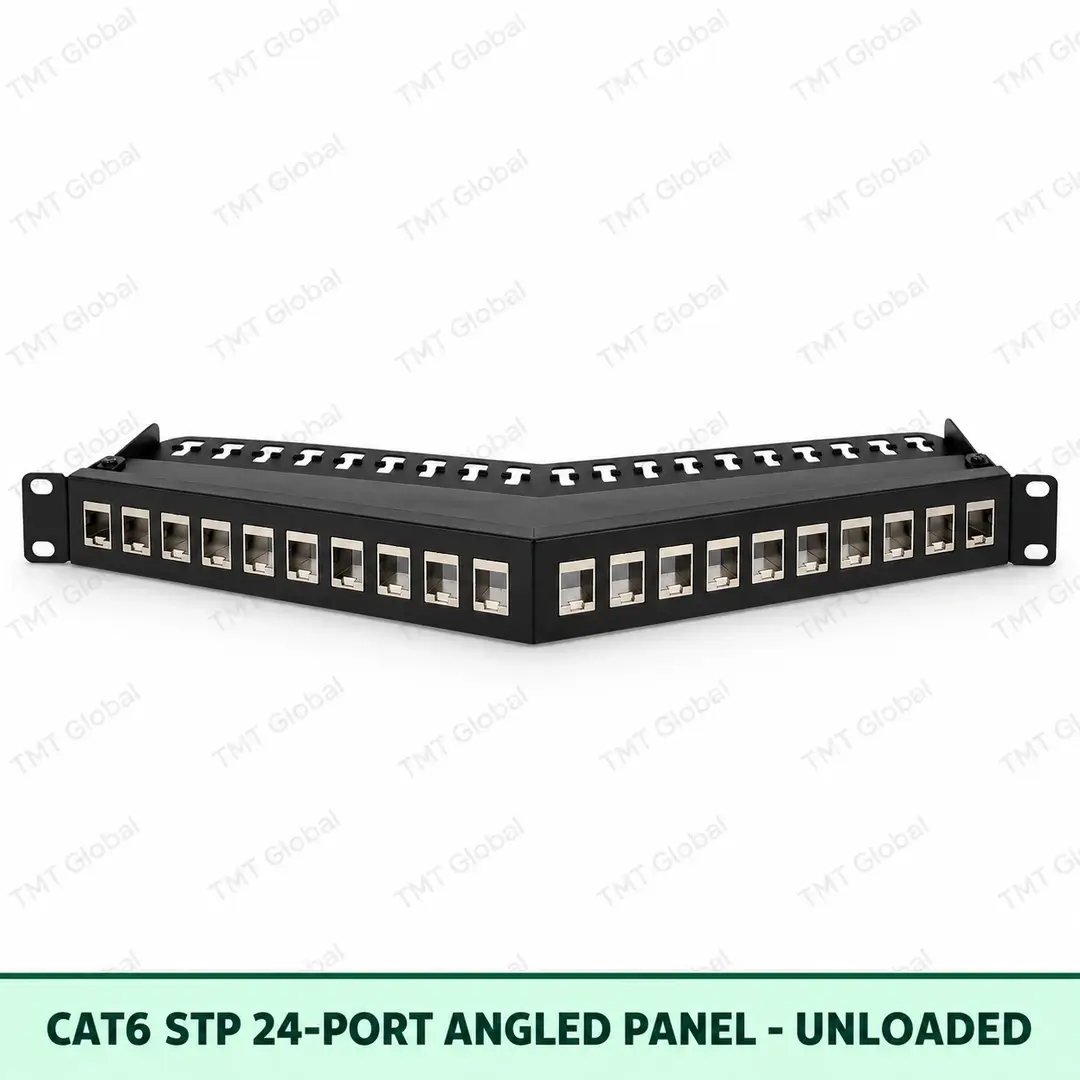

Cat6 STP 24-Port Angled Patch Panel | Unloaded
FEATURES
- Shielded angled modular frame
- Accepts Cat6 STP keystone jacks
- Side cable routing
- Metal panel with grounding provision
- 1U 19-inch rack mount
- Port labels and cable support
Chat with Sales
| Brand | TMT Global |
|---|
Supplied in Oman by Khan Cables from our Muscat office and showroom in Ruwi, for projects in Muscat and across the Sultanate. Request a quote
Full specifications & datasheet: tmtglobal.co.uk →
Description
TMT Global Cat6 STP 24-Port Angled Patch Panel | Unloaded Series
Cat6 STP 24-Port Angled Patch Panel | Unloaded is a TMT Global copper patch-panel product for shielded modular Cat6 systems with side patch-cord routing. It is designed for professional structured cabling installations where consistent rack organization, reliable cable support and standards-aligned connectivity are required. The product shall be supplied according to the declared TMT specification and applicable standards listed in the technical datasheet.
FEATURES
- Shielded angled modular frame
- Accepts Cat6 STP keystone jacks
- Side cable routing
- Metal panel with grounding provision
- 1U 19-inch rack mount
- Port labels and cable support
APPLICATIONS
- Industrial LAN
- Data centres
- Control rooms
- High-EMI racks
- Shielded cabling systems
STANDARDS & COMPLIANCE
- ISO/IEC 11801-1 system application
- ANSI/TIA-568.2-D system application
- Grounding/earthing continuity for shielded systems
- EN 50173 system application
- IEC 60297-3-100 for 19-inch rack interface
- UL 94 V-0 polymer parts
- RoHS
- REACH
Technical Specification
