CAT6A S/FTP PVC Network Cable 23 AWG 4 Pair 305 m – 6A736MPX Series

Choosing the CAT6A S/FTP PVC Network Cable 23 AWG 4 Pair 305 m – 6A736MPX Series

Category 6A supports 10GBASE-T to the full 100 m channel, the right choice for Wi-Fi 6/7 access points, new office floors and anything planned to last 15+ years. Each pair has its own foil screen plus an overall braid, giving the highest noise immunity for data centres, industrial sites and dense 10 Gb bundles. The PVC jacket is flexible and economical for general indoor installation where low-smoke cable is not specified.

Related options in this range: CAT6A S/FTP LSZH Network Cable 24 AWG 4 Pair 305 m – 6A737BLX Series · CAT6A S/FTP PVC Network Cable 23 AWG 4 Pair 305 m – 6A737BPX Series · CAT6A S/FTP LSZH Network Cable 24 AWG 4 Pair 305 m – 6A735BLX Series · CAT6A S/FTP PVC Network Cable 23 AWG 4 Pair 305 m – 6A735BPX Series · CAT6A S/FTP PVC Network Cable 23 AWG 4 Pair 305 m – 6A732BPX Series

Order code: 6A736MPB. Send us the length, jacket and quantity for a project quotation and datasheet.

Discover the benefits and features of the TMT Global Cat6a S/FTP PVC network cable. Engineered for modern networking, this high-quality cable surpasses traditional Cat6 standards, offering enhanced data transfer rates and improved signal integrity. With its 23 AWG 4-pair construction and S/FTP shielded design, this cable minimizes electromagnetic interference, ensuring reliable performance in heavy electronic environments. Ideal for both residential and commercial applications, the 6A736MPX series boasts a 305-meter length, making it perfect for long-distance runs. Capable of supporting speeds up to 10 Gigabits per second at 500 MHz, this Cat6a cable is a future-proof solution for your connectivity needs. Upgrade your network performance with this valuable investment.

ELECTRICAL SPECIFICATIONS
Characteristic Impedance: 100±6 Ohm @ 1-500 MHz
Loop Resistance: 25
Resistance unbalance: 2% max.
Mutual Capacitance: 5.6 nF/100m Max. @ 1 KHz
Cap. Unbalance (wire to ground): 1500 pF/Km max. @ 1 KHz.
Voltage rating: 72 Vdc max.
Dielectric strength: 1500 Volts/1 minute min rms
Velocity of Propagation (NVP): 67-69%
Propagation Delay Skew: 534 + 36/vf. nS/100m max @ 1-500 MHz
Insulation Resistance: 45 nS/100m max @ 1-500 MHz
Coupling attenuation: 55 dB min @ 30-100 MHz 55-20Log(f/100) @100-500 MHz

PHYSICAL AND MECHANICAL PROPERTIES
Basic Conductor: tmt copper
Conductor Size: 23AWG
Insulation: HDPE
Number of insulated conductors: 8, twisted in 4 pairs
Color Code of Pairs: Blue x White/Blue, Orange x White/Orange, Green x White/Green, Brown x White/Brown

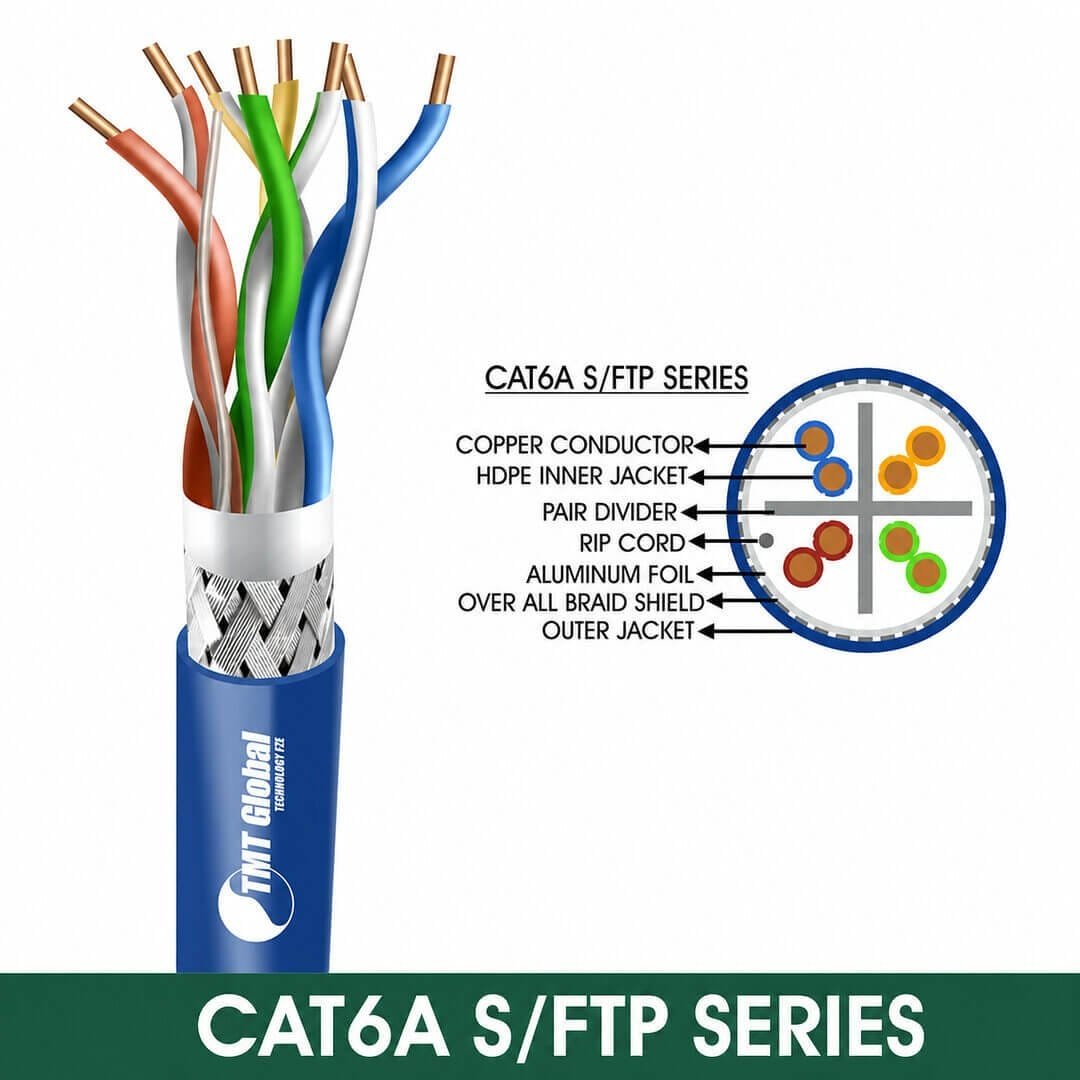

Overall Coverage: Overall Braid + Pairs, aluminum Foil Polyester Tape
Drain wire: N
Outer Jacket: PVC
Standard Jacket Color:Blue/Gray /Black/Green/Orange/Red/Violet/White/Yellow/AQUA
Standard Surface Marking: Includes TMT Global P/N, cable description, Meter mark and Model Number
Pulling force: 110 N max.
Short Term Bend Radius: 8xOD (mm)
Temperature operating range: -20 to +80C
Installation temperature range: 0 to +50C
Ordering Information
Item Name: CAT6A S/FTP PVC Network Cable 23 AWG 4 Pair 305 m – 6A736MPX Series
