CAT6A U/UTP LSZH Network Cable 23 AWG 4 Pair 305 m – 6A132BLX Series

Choosing the CAT6A U/UTP LSZH Network Cable 23 AWG 4 Pair 305 m – 6A132BLX Series

Category 6A supports 10GBASE-T to the full 100 m channel, the right choice for Wi-Fi 6/7 access points, new office floors and anything planned to last 15+ years. U/UTP has no screen: it is the lightest and fastest to install, best for offices and homes away from heavy electrical noise. The LSZH jacket gives off little smoke and no halogen gas in a fire, which consultants usually specify for offices, hospitals, schools, malls and other public buildings.

Related options in this range: CAT6A U/UTP PE Outdoor Network Cable 23 AWG 4 Pair 305 m – 6A137BOK · CAT6A U/UTP LSZH Network Cable 23 AWG 4 Pair 305 m – 6A137BLX Series · CAT6A U/UTP PVC Network Cable 23 AWG 4 Pair 305 m – 6A137BPX Series · CAT6A U/UTP PE Outdoor Network Cable 23 AWG 4 Pair 305 m – 6A135BOK · CAT6A U/UTP LSZH Network Cable 23 AWG 4 Pair 305 m – 6A135BLX Series

Order code: 6A132BLB. Send us the length, jacket and quantity for a project quotation and datasheet.

Discover the TMT Global Cat6A U/UTP LSZH Network Cable, designed for high-speed data transmission in modern networking. This 23 AWG cable offers exceptional performance with its unshielded twisted pair design, minimizing interference and enhancing durability. With a capacity to support speeds up to 10 Gbps and low smoke zero halogen properties, it is ideal for enterprise networks, data centers, and residential installations. Its combination of flexibility, durability, and safety makes it a reliable choice for businesses and individuals seeking top-notch network solutions. Learn more about its key features and applications in your networking setup.

ELECTRICAL SPECIFICATIONS
Characteristic Impedance: 100±6 Ohm @ 1-500 MHz
Loop Resistance: 25
Resistance unbalance: 2% max.
Mutual Capacitance: 5.6 nF/100m Max. @ 1 KHz
Cap. Unbalance (wire to ground): 1500 pF/Km max. @ 1 KHz.
Voltage rating: 72 Vdc max.
Dielectric strength: 1500 Volts/1 minute min rms
Velocity of Propagation (NVP): 67-69%
Propagation Delay Skew: 534 + 36/vf. nS/100m max @ 1-500 MHz
Insulation Resistance: 45 nS/100m max @ 1-500 MHz
Coupling attenuation: 55 dB min @ 30-100 MHz 55-20Log(f/100) @100-500 MHz

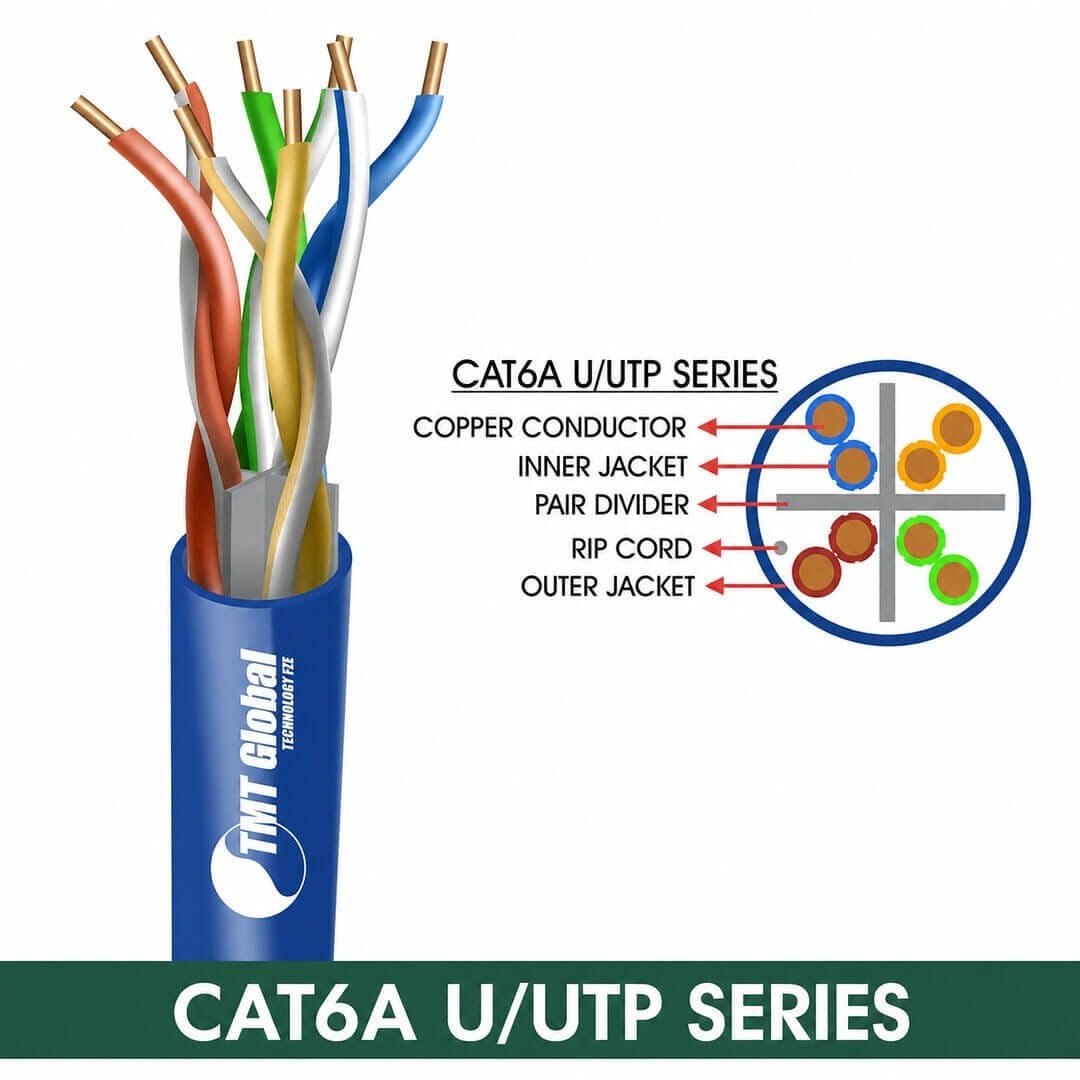

PHYSICAL AND MECHANICAL PROPERTIES
Basic Conductor: Bare copper
Conductor Size: 23AWG
Insulation: HDPE
Number of insulated conductors: 8, twisted in 4 pairs
Color Code of Pairs: Blue x White/Blue, Orange x White/Orange, Green x White/Green, Brown x White/Brown
Overall Coverage: N
Drain wire: N
Outer Jacket: LSZH
Standard Jacket Color:Blue/Gray /Black/Green/Orange/Red/Violet/White/Yellow/AQUA
Standard Surface Marking: Includes TMT Global P/N, cable description, Meter mark and Model Number
Pulling force: 110 N max.
Short Term Bend Radius: 8xOD (mm)
Temperature operating range: -20 to +80C
Installation temperature range: 0 to +50C
Ordering Information
Item Name: CAT6A U/UTP LSZH Network Cable 23 AWG 4 Pair 305 m – 6A132BLX Series
