Choosing the Universal 24-Port Keystone Patch Panel, Unloaded

24 keystone ports; load it with Cat6, Cat6A, shielded or unshielded jacks as each project requires. Unloaded panels let you mix data, voice and fibre keystones on one panel.

Order code: TMT-0024UNF. Send us the quantity for a project quotation and datasheet.

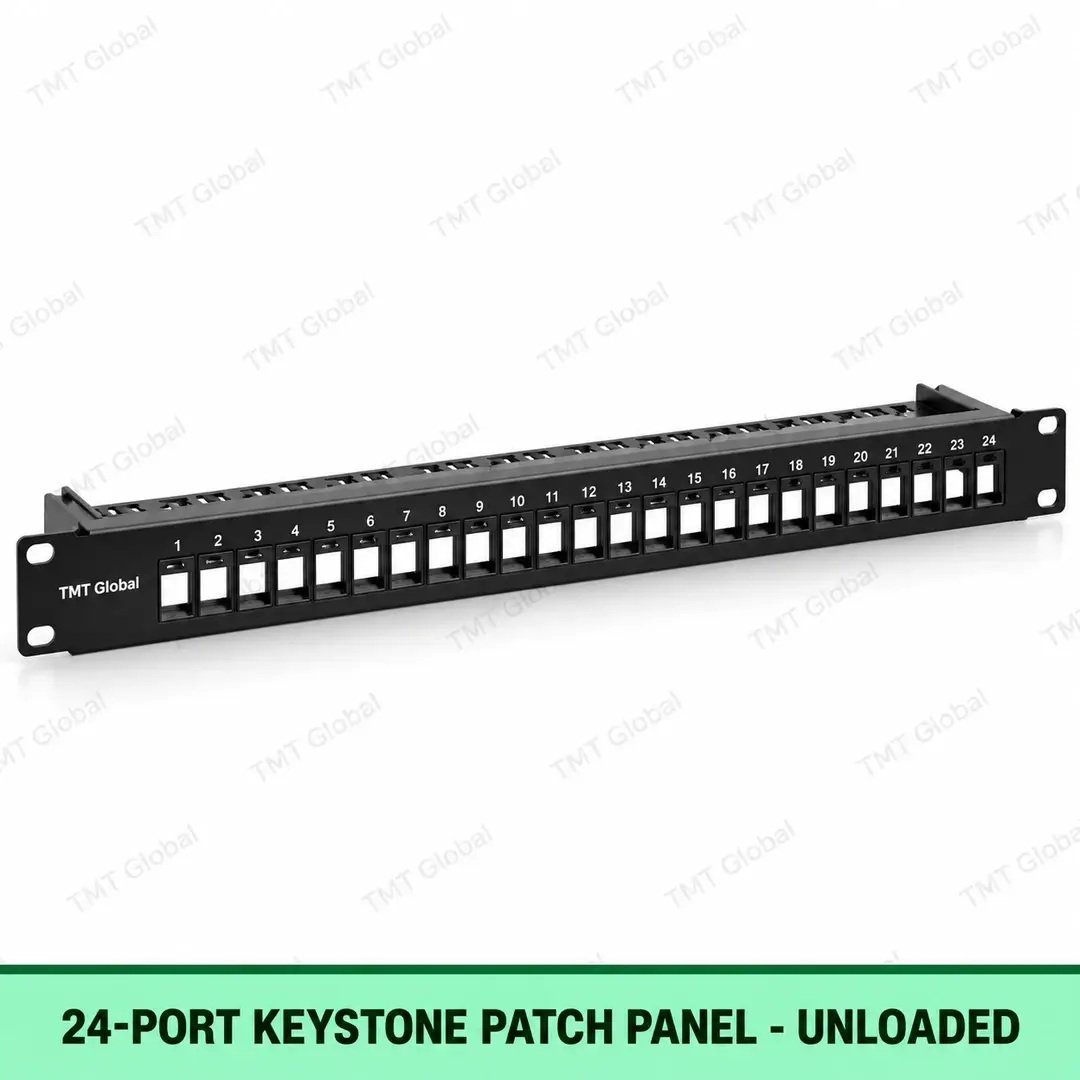

TMT Global Universal 24-Port Keystone Patch Panel | Unloaded Series

Universal 24-Port Keystone Patch Panel | Unloaded is a TMT Global copper patch-panel product for mixed copper, voice or fibre adapter installations using standard keystone modules. It is designed for professional structured cabling installations where consistent rack organization, reliable cable support and standards-aligned connectivity are required. The product shall be supplied according to the declared TMT specification and applicable standards listed in the technical datasheet.

FEATURES

Universal 24-port keystone frame
Accepts Cat5e/Cat6/Cat6A/Fibre adapter modules as applicable
19-inch 1U rack mount
Modular snap-in format
Rear cable management
Easy future upgrade path

APPLICATIONS

Mixed-media racks
Moves/adds/changes
Enterprise LAN
AV/data systems
Telecom rooms

STANDARDS & COMPLIANCE

ISO/IEC 11801-1 system application
ANSI/TIA-568.2-D system application
EN 50173 system application
IEC 60297-3-100 for 19-inch rack interface
UL 94 V-0 polymer parts
RoHS
REACH

Technical Specification

Parameter	TMT Declared Specification
Type	Universal 24-Port Keystone Patch Panel \| Unloaded
SKU	TMT-0024UNF
Category / class	Universal / Module-dependent
Frequency range	Dependent on installed keystone module
Port configuration	24 ports
Load type	Unloaded keystone frame
Shielding	Unshielded frame
Panel style	Flat / standard 19-inch
Rack / mounting	1U, 19-inch rack mount
Panel material	SPCC galvanized/cold-rolled steel, black powder-coated
Polymer components	High-impact flame-retardant polymer, UL 94 V-0
Wire compatibility	Dependent on installed TMT keystone/module
Wiring scheme	Dependent on installed module
Rear management	Rear cable support / tie points or cable bar
Operating range	-10 °C to +60 °C
Storage range	-20 °C to +70 °C
Packaging	1 unit / box
