Access Control systems
Access Control 1doors Controllers
General Specification
Communication :TCP/IP 10M/ 100M Adaptive
Description : Control1 doors
Power Supply : 12VDC 4-7A
Power Consumption of Circuit Board : Less than 100mA
Quantity of Readers : 1 pc
Door Controlled : 1
Operation Temperature : minus 40°C- 70°
Qty of users : 100,000 Users
Max Qty of Controller : No limit
Product IDÂ : TMT-3NXXXX1
Access Control 2 doors Controllers
General Specification
Communication :TCP/IP 10M/ 100M Adaptive
Description : Control 2 doors
Power Supply : 12VDC 4-7A
Quantity of Readers : 2 pc
Door Controlled : 2
Operation Temperature : minus 40°C -70°C
Qty of users : 100,000 Users
Max Qty of Controller : No limit
Product IDÂ : TMT-3NXXXX2

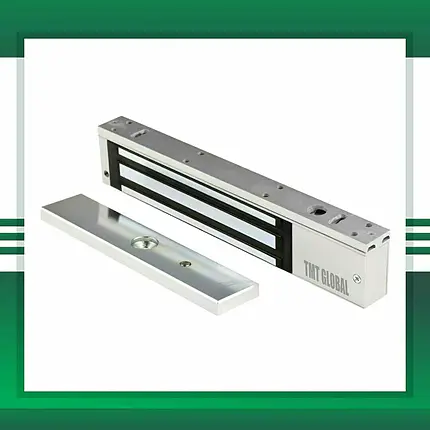

Magnetic Door Lock single Door 280kg
General Specification
Lock Size : 170Lx35Wx21H(mm)
Armature plate : 130Lx33Wx9.3H(mm)
Holding Force : 280kg(350Lbs)
Voltage : DC12V or DC24V (adjustable)
Current Draw : 12V/500mA 24V/250mA
Signal Output : Dry Contact, Max Rating of Contact Current 3A
Surface Temp : ≤+20℃
Operating Temp: -10~+55℃(14-131F)
Finishes for Magnetic : Zinc
Weight : 1.1kg
Model No. : TMT-7646
magnetic lock Double Door 500kg
General Specification
Lock Size: 500L*47W*26H(mm)
Armature plate : 180L*38W*11H(mm)
Holding Force : 280kg(350Lbs)
Voltage : DC12V or DC24V (adjustable)
Current Draw : 12V/500mA 24V/250mA
Signal Output: Dry Contact, Max Rating of Contact Current 3A
Surface Temp: ≤+20℃
Operating Temp: -10~+55℃(14-131F)
Finishes for Magnetic: Zinc
Weight : 4kg
Model No: TMT-7649
Access Control 4 doors Controllers
General Specification:
Communication :TCP/IP 10M /100M Adaptive
Description : Control 4 doors
Power Supply : 12VDC 4-7A
Quantity of Readers : 4 pc
Door Controlled : 4
Operation Temperature : minus 40° C-70°C
Qty of users : 100,000 Users
Max Qty of controller : No limit
Product IDÂ : TMT-3NXXXX4
electric bolt glass lock
General Specification
Fail-Safe: Unlock when power off
Lock size : 150Lx42Wx37H(mm)
Magnet plate: size 150Lx42Wx20H(mm)
Lock pin: 12mmDIA, stainless steel 15mm throw
Voltage: DC12V
Start Current: 1.1A
Standby: Current 0.15A
Solid Lock Pin: Polishing housing, 1000Kg Holding Force
Suitable For:Â Non-frame glass door
Weight : 0.7kg
Carton size :Â 53Lx30Wx14H(cm)
Model No. :  TMT-7665
