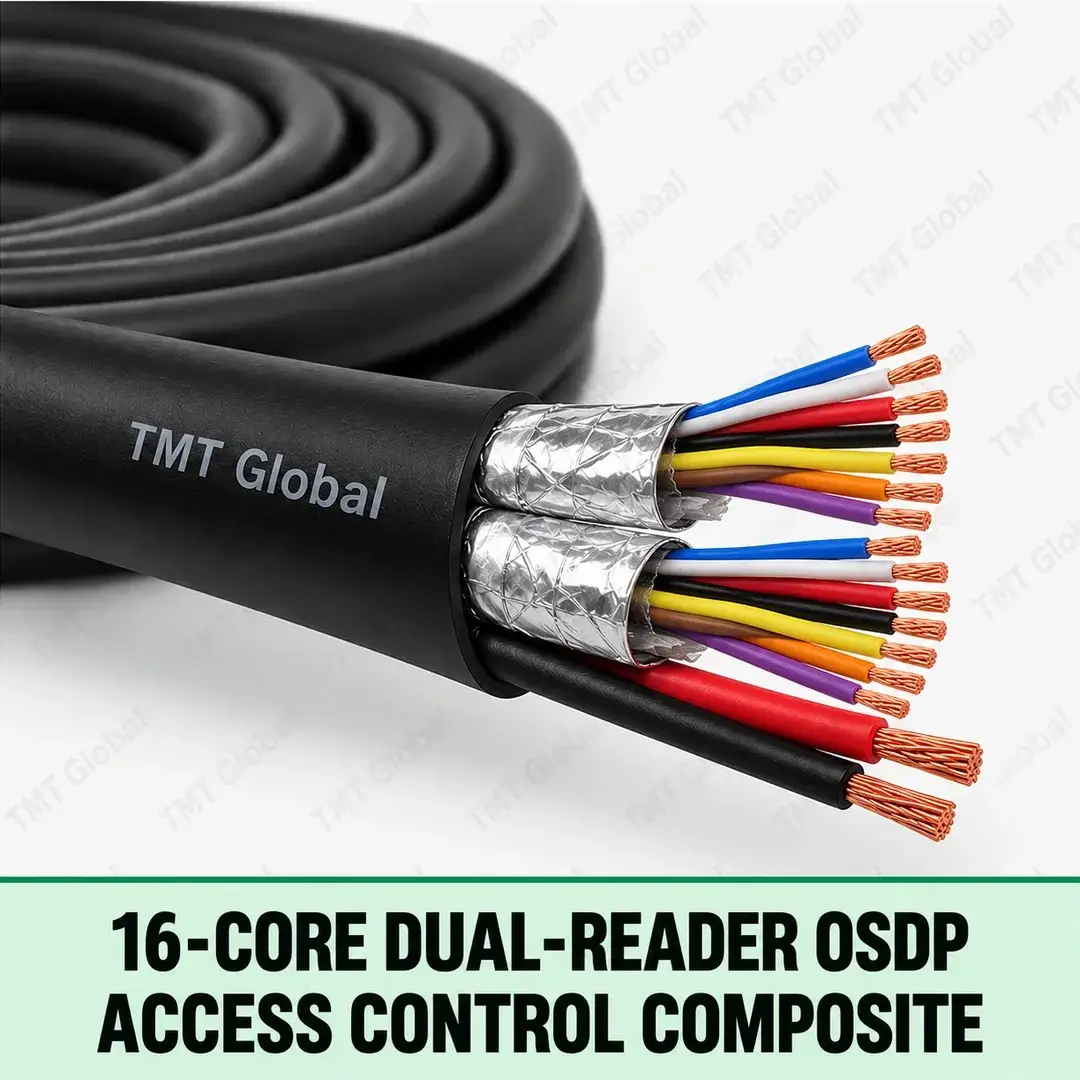

TMT Global 16-Core Dual-Reader OSDP Access Control Composite, black jacket with two clearly separated reader cable groups, each with foil-screened data pair and power conductors, plus lock power group, exactly sixteen insulated copper cores total.

16 Core Dual-Reader OSDP Access Control Composite

KEY FEATURES

  • Access-control-specific construction
  • 2PR24 + 8C18 + 4C22
  • Two OSDP pairs shielded
  • 305 m standard package
  • Factory evidence required for released electrical values
Chat with Sales
AWG24 awg
BrandTMT Global
ColourBlack, Grey
Jacket TypePVC, LSZH, PE Outdoor
Length305 m

Supplied in Oman by Khan Cables from our Muscat office and showroom in Ruwi, for projects in Muscat and across the Sultanate. Request a quote

Full specifications & datasheet: tmtglobal.co.uk →

View / Print DatasheetContact Sales
Description

TMT 16 Core Dual-Reader OSDP Access Control Composite Seires

TMT Global 16 Core Dual-Reader OSDP Access Control Composite is a controlled Security & ELV cable family for professional door access-control installations. Dual-reader composite construction for in/out or two-reader door arrangements, combining two 120 ohm OSDP data pairs with multiple 18 AWG power circuits and 22 AWG auxiliary conductors. Jacket and permitted conductor-size variations remain exact searchable Series rows under this product page.

KEY FEATURES

  • Access-control-specific construction
  • 2PR24 + 8C18 + 4C22
  • Two OSDP pairs shielded
  • 305 m standard package
  • Factory evidence required for released electrical values

APPLICATIONS

  • Dual-reader doors
  • In/out access control
  • High-function access points

Technical Specifications

AWG / NOMINAL AREA / SERIES AVAILABILITY
