2 Core Foil + Braid Shielded Control Cable
KEY FEATURES
- 2-core controlled construction
- Overall foil + tinned-copper braid + drain wire
- 12, 14, 16, 18, 20, 22, 23 and 24 AWG Series options
- PVC, LSZH and outdoor PE jacket choices
- Bare-copper conductor; solid or stranded by released drawing
- Exact searchable ordering code for every standard combination
| AWG | 12 awg, 14 awg, 16 awg, 18 awg, 20 awg, 22 awg, 23 awg, 24 awg |
|---|---|
| Brand | TMT Global |
| Colour | Black, Grey |
| Jacket Type | PVC, LSZH, PE Outdoor |
| Length | 305 m |
Supplied in Oman by Khan Cables from our Muscat office and showroom in Ruwi, for projects in Muscat and across the Sultanate. Request a quote
Full specifications & datasheet: tmtglobal.co.uk →
Choosing the 2 Core Foil + Braid Shielded Control Cable
Two cores suit one device: a lock, exit button, door contact or a powered sensor. Foil plus tinned-copper braid gives the strongest protection against electrical noise and adds mechanical strength, which is why it is the usual choice in plant rooms, near VFDs and motors, and across industrial sites.
Related options in this range: 2-Wire Bus + 2 Core Power Composite Intercom Cable · OSDP Long-Run Reader Cable – 1 Pair 22 AWG + 2 Core 16 AWG Power · OSDP Reader Cable – 1 Pair 22 AWG + 2 Core 18 AWG Power · 2 Core Door Contact Cable · 2 Core Door Lock / Electric Strike Power Cable · 2 Core Door Lock / Electric Strike Power Cable
Order code: 02B-BA. Send us the length, jacket and quantity for a project quotation and datasheet.

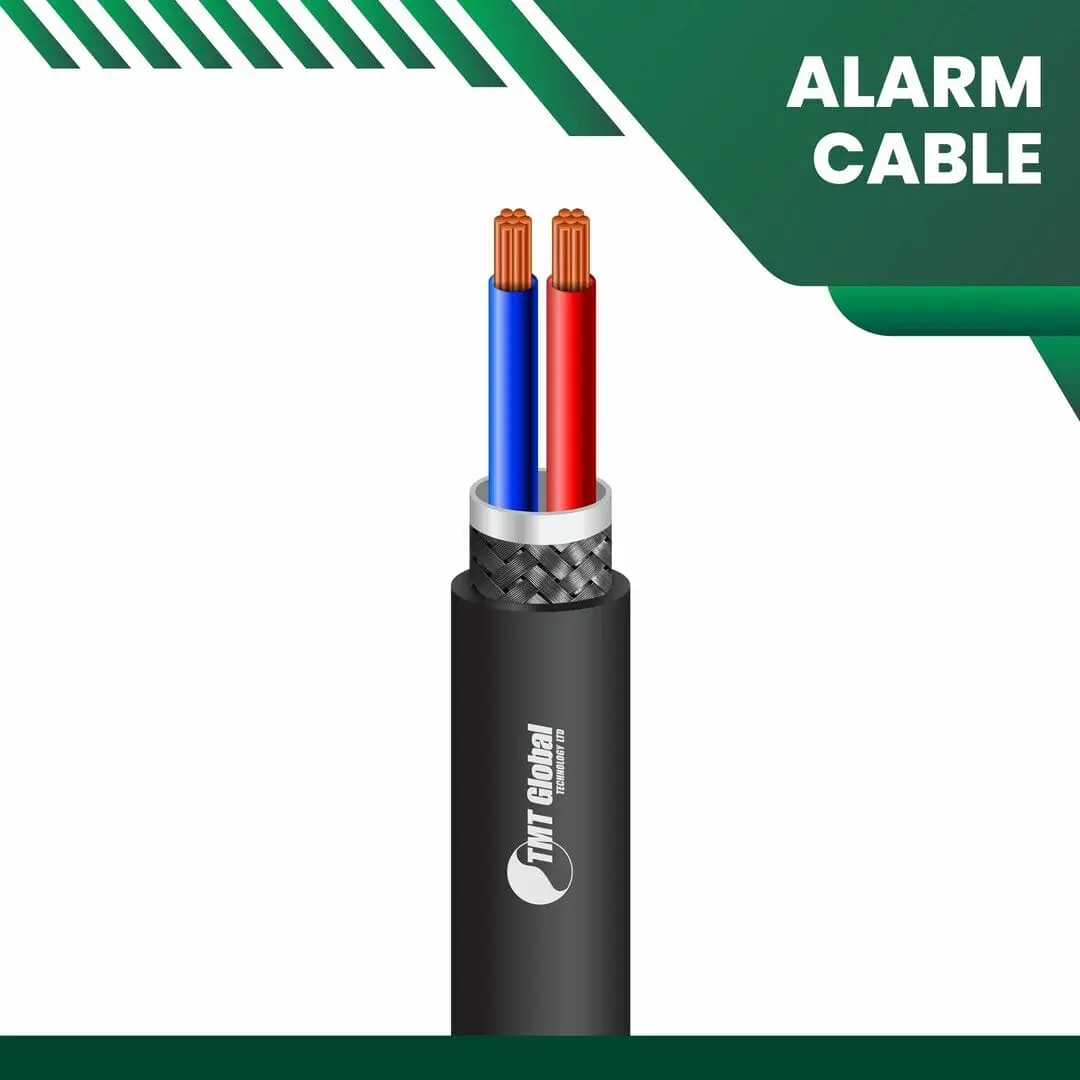

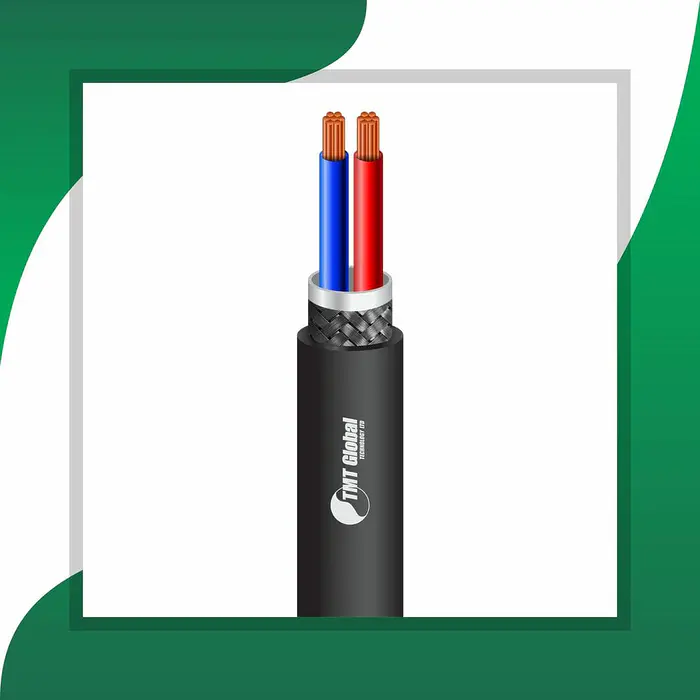

TMT 2 Core Foil + Braid Shielded Control Cable Series
TMT Global 2 Core Foil + Braid Shielded Control Cable is a configurable multicore control-cable family for machinery, control panels, building services and low-voltage automation interconnection. The product page fixes the 2-core foil + braid shielded construction, while the TMT Series ordering table provides exact AWG and jacket-specific item codes for customer search, quotation and project selection.
KEY FEATURES
- 2-core controlled construction
- Overall foil + tinned-copper braid + drain wire
- 12, 14, 16, 18, 20, 22, 23 and 24 AWG Series options
- PVC, LSZH and outdoor PE jacket choices
- Bare-copper conductor; solid or stranded by released drawing
- Exact searchable ordering code for every standard combination
TYPICAL APPLICATIONS
- Machine and equipment control circuits
- Control panels, switchboards and plant rooms
- Relays, contactors, actuators and interlock circuits
- Building automation and process-control interconnection
- Industrial facilities, commercial buildings and infrastructure
Technical Specification
AWG / NOMINAL AREA / SERIES AVAILABILITY
