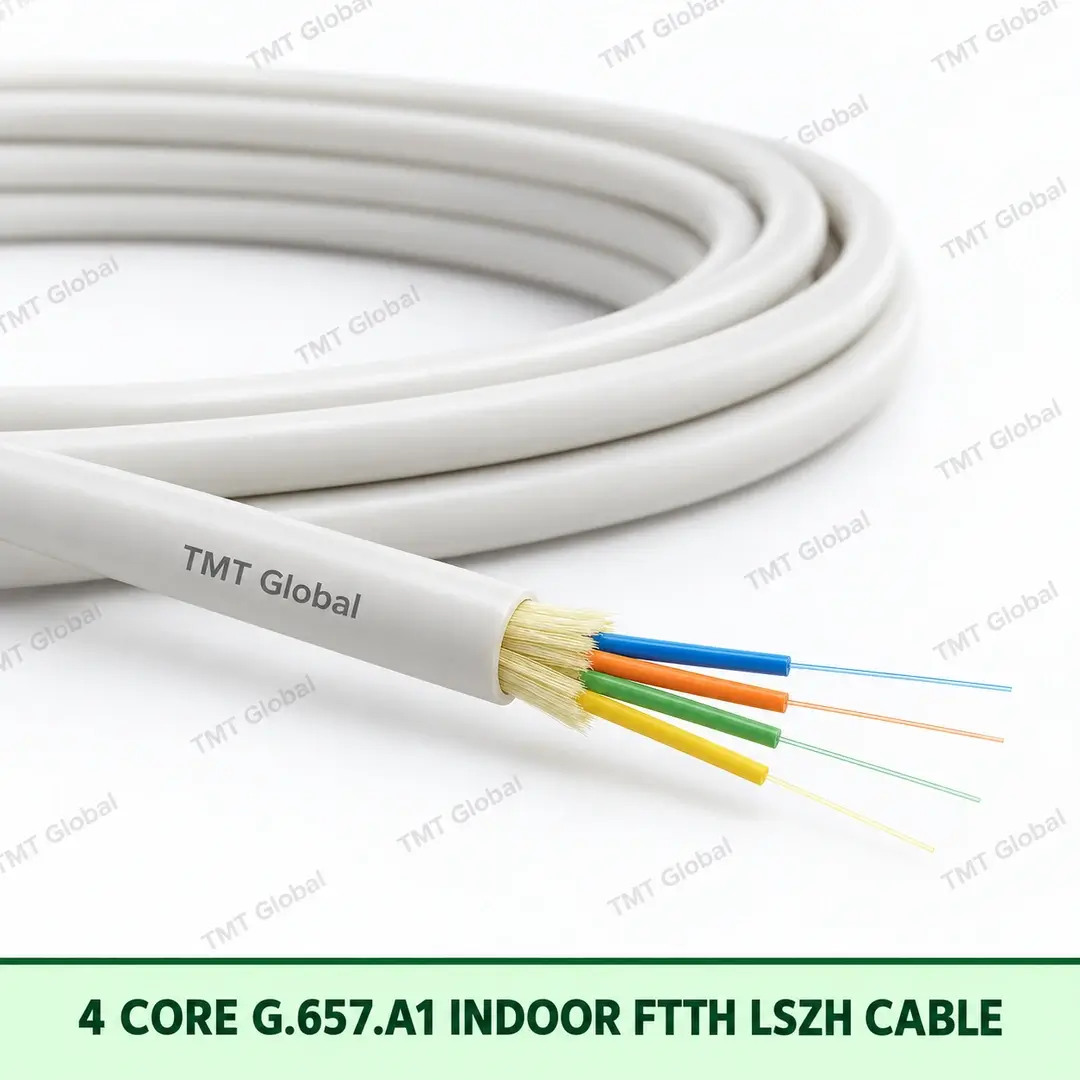

4 Core G.657.A1 Indoor FTTH LSZH Cable

Key features

4 fibre G.657.A1 bend-insensitive single-mode
New TMT item code dedicated to the CPR construction
Indoor LSZH / HFFR outer jacket
Non-armoured building cable
Designed for controlled factory / certificate traceability
CPR target: Cca-s1b,d2,a2 or higher — certification pending

Chat with Sales

Brand

TMT Global

TMT Global Series 4 Core G.657.A1 Indoor FTTH LSZH Cable

The TMT 4 Core G.657.A1 Indoor FTTH LSZH Cable is a new indoor access / drop-fibre construction developed for permanent building telecommunications routes where low-smoke zero-halogen performance and controlled CPR certification are required. The model is separated from legacy TMT FTTH products so that the final factory construction, test evidence, DoP, CE marking and e& approval records can remain traceable to one new item code.

Key features

4 fibre G.657.A1 bend-insensitive single-mode
New TMT item code dedicated to the CPR construction
Indoor LSZH / HFFR outer jacket
Non-armoured building cable
Designed for controlled factory / certificate traceability
CPR target: Cca-s1b,d2,a2 or higher — certification pending

Typical applications

FTTH / FTTx indoor building drops
MTR / FTC to customer consolidation point
Residential and commercial building telecom routes
Riser, telecom-room and cabinet links
Projects requiring halogen-free permanent-building cable

TECHNICAL SPECIFICATION

Product type	4 core indoor FTTH fibre optic cable
Fibre grade	ITU-T G.657.A1 • single mode • bend-insensitive
Construction	Tight-buffered / FTTH construction — final factory drawing to be locked
Protection	Non-armoured
Outer jacket	LSZH / HFFR indoor jacket
Jacket colour	White
Application	Permanent indoor building FTTH / access routes
Operating / storage temperature	To be confirmed from released factory construction
Minimum bend radius	To be confirmed from released factory construction
Packaging	Project reel / drum length according to approved cable OD

OPTICAL / MECHANICAL PERFORMANCE

Standards framework	IEC 60793 • IEC 60794 • applicable ITU-T G.657 recommendation
Fire / CPR target	Halogen-free • target Euroclass Cca-s1b,d2,a2 or higher • formal certification pending
Certification package	System 1+ / CoCP / DoP / CE marking only after formal Notified Body release
Manufacturer / brand	Fahad Cables Industry FZE / TMT Global

STANDARDS / CPR CONTROL

Standards framework	IEC 60793 • IEC 60794 • applicable ITU-T G.657 recommendation
Fire / CPR target	Halogen-free • target Euroclass Cca-s1b,d2,a2 or higher • formal certification pending
Certification package	System 1+ / CoCP / DoP / CE marking only after formal Notified Body release
Manufacturer / brand	Fahad Cables Industry FZE / TMT Global
