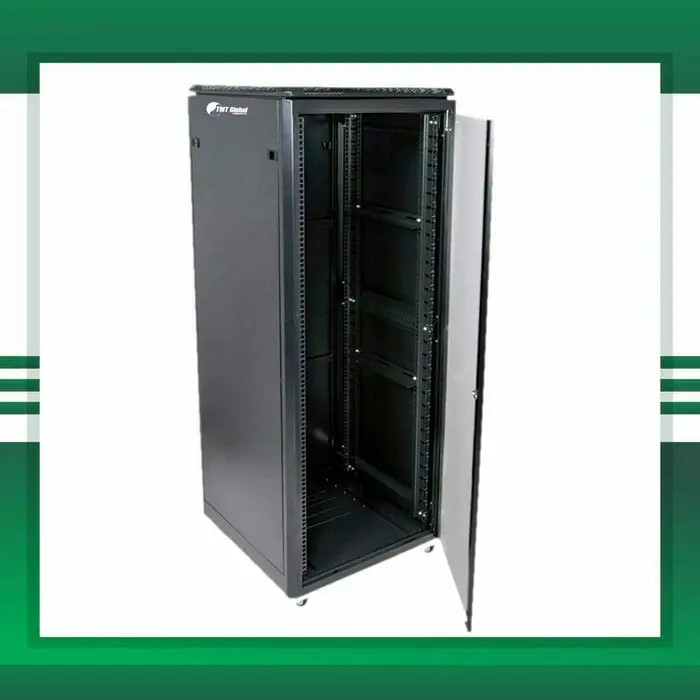

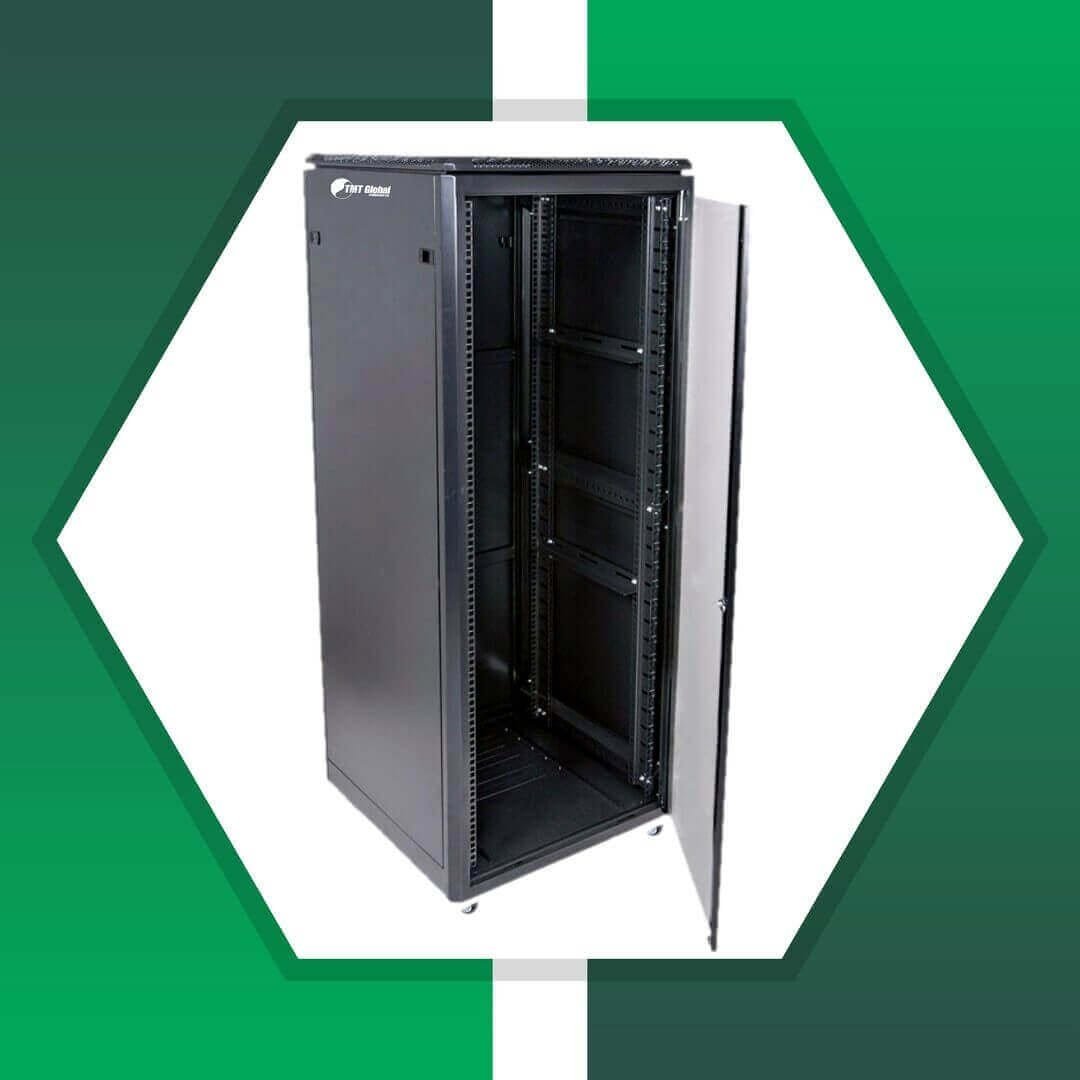

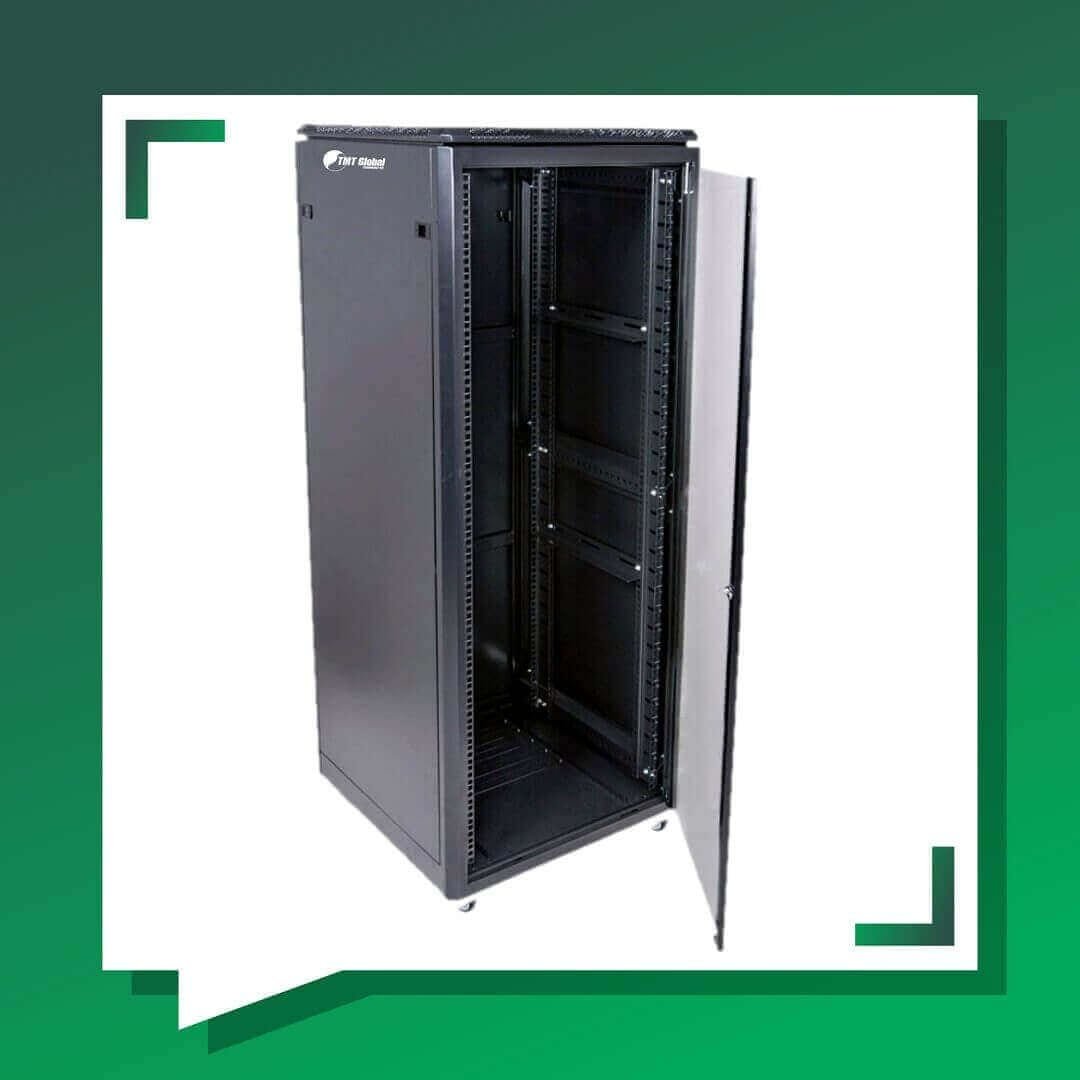

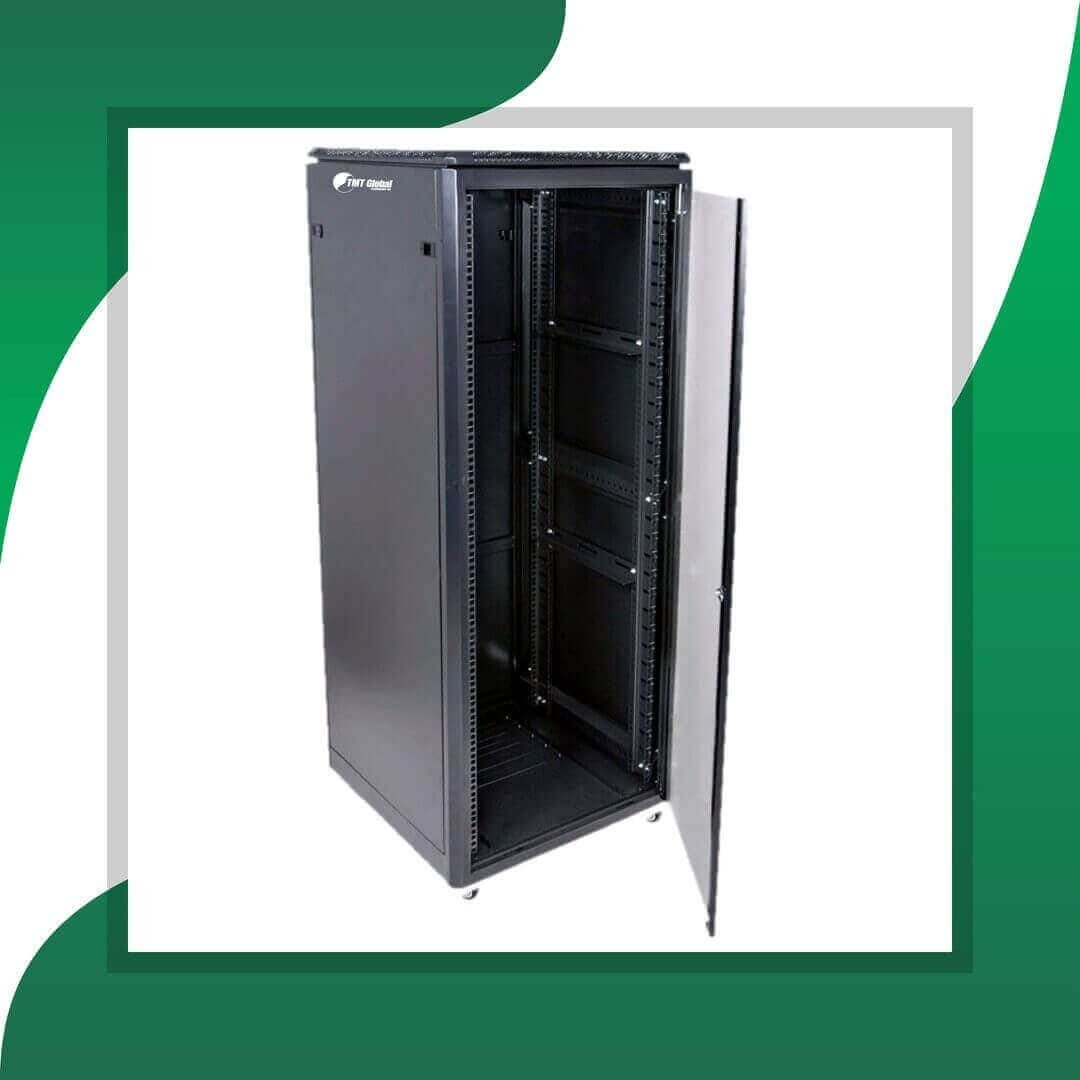

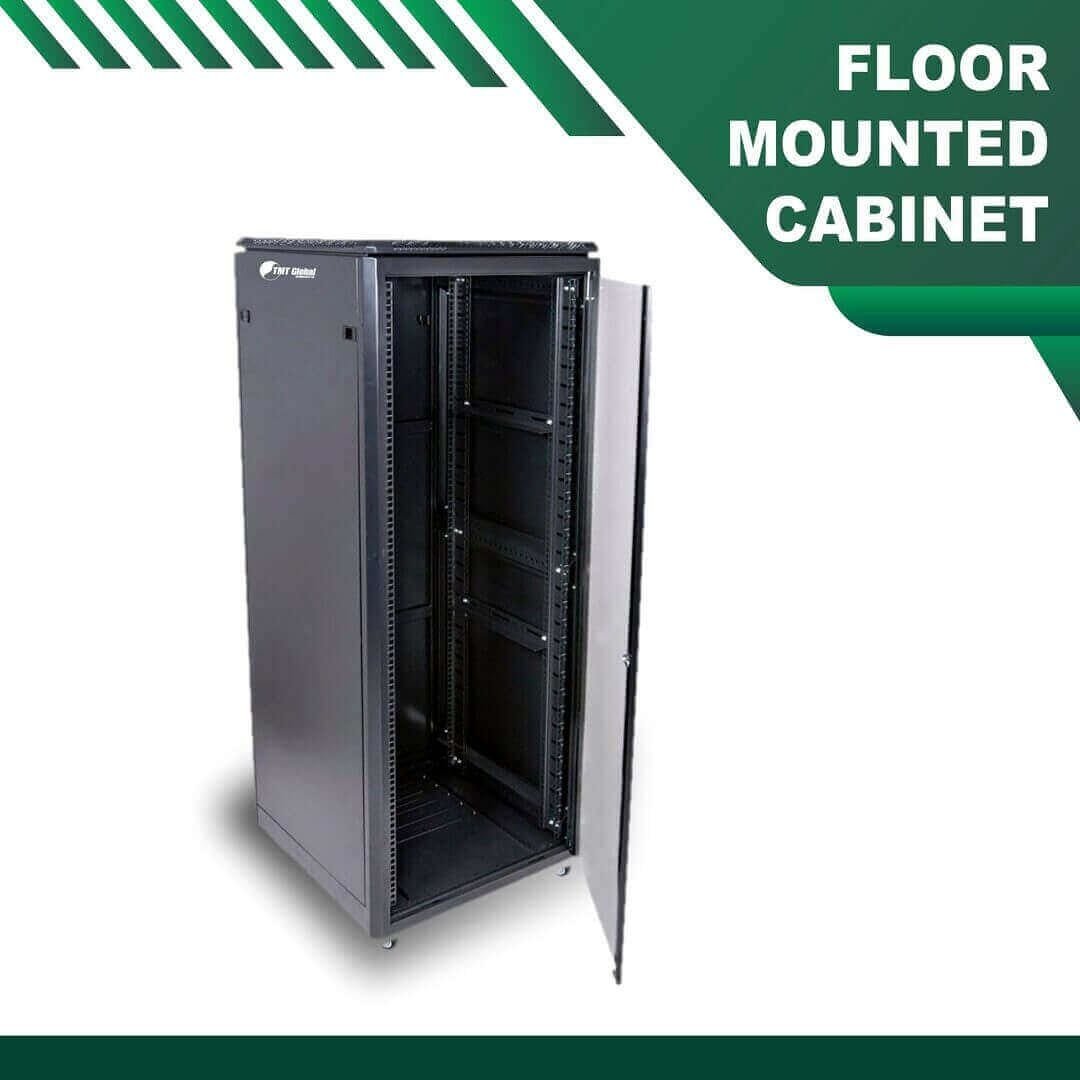

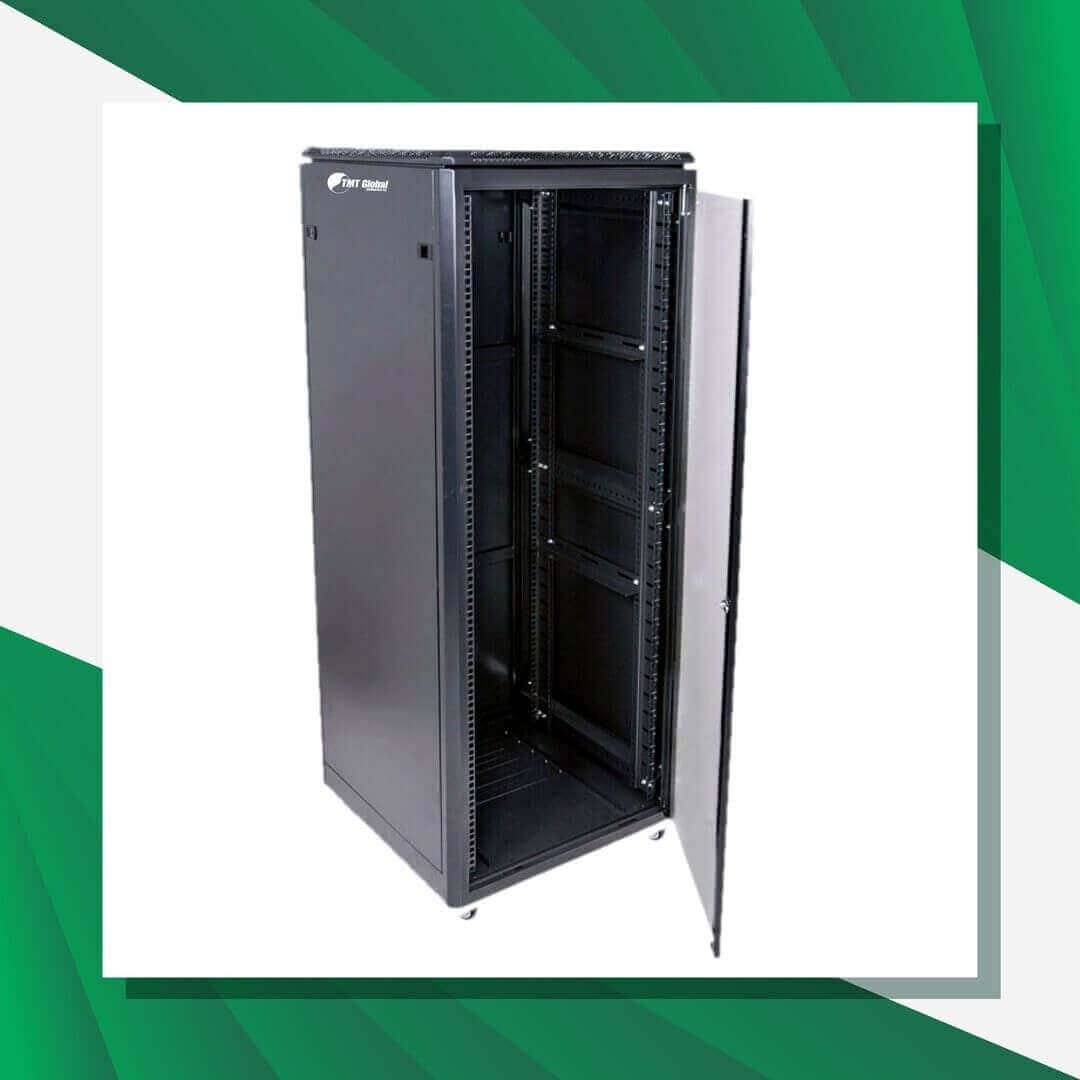

42U Cabinet floor Mounted 600 x 800 mm

Choosing the 42U Cabinet floor Mounted 600 x 800 mm

42U is a full-height cabinet for main equipment rooms, server rows and core switching, with room for growth. Floor-standing cabinets take heavier loads, deeper servers and side cable management.

Related options in this range: 42U Floor Standing Cabinet · 42U floor mounted cabinet 800x800mm · 47U Floor Standing Cabinet · 37U Floor Standing Cabinet · 32U Floor Standing Cabinet

Order code: TMT-42UKOFB. Send us the length, jacket and quantity for a project quotation and datasheet.

TMT Global 42U Cabinet floor Mounted 600 x 800 mm

TMT GLOBAL 42U Cabinet floor Mounted 600 x 800 mm Cabinet / Racks Manufactured from 1.5mm cold rolled carton sheet coated with polyester powered structure paint. With welded steel frame and gland plates at the top and bottom for cable entry. Two pairs of fully adjustable 2mm 19” profile With universal punching are
fitted in every enclosure Wall mounting holes at the rear for easy mounting. TMT GLOBAL cabinet/racks is designed for indoor wall mounted & Floor Standing using, cold-roll steel, with Vertical Cable Manager trays for
cable distribution and management.42U Cabinet floor Mounted 600 x 800 mm

Features
Solid steel construction.
Available on flush, wall mounted and floor standing.
Adjustable 19” mount.
Mechanical open / close lock.
Lock handle.
Inner mount plate with grid mount.
Top and bottom panel cable entry.
Ventilation holes on front panel.
Cabinet can be fitted with 1U patch panel.
Embedded grounding copper coated stud bolts.

Application
Telecommunications,
Fiber to the home (FTTH)
Server Room
Data center ,
LAN / WAN, CATV
IPTV
CCTV

Specifications

• Material: Solid steel construction
• Coating: Polyester powered structure paint.
• Housing thickness: 1.5mm
• Front Door: 3mm tempered glass reinforced  and  metal panel
• Rear Plate: Fixed
• Side panels: Quick release removable side panels.
• Ventilation: Grill cut outs provide on front sides.
• Rating: IP 20
• Color: As per Requirement
• Durability: Lifetime
• Packing: Supplied assembled, unassembled
• Weight: XX
