Choosing the 6 Core Foil-Shielded Intruder Alarm Cable

Six cores add the tamper loop, so one detector is fully wired with power, alarm and tamper. An overall aluminium/polyester foil screen with drain wire blocks high-frequency interference, so it suits signal and data circuits that share containment with other cabling.

Order code: 06S-AM. Send us the length, jacket and quantity for a project quotation and datasheet.

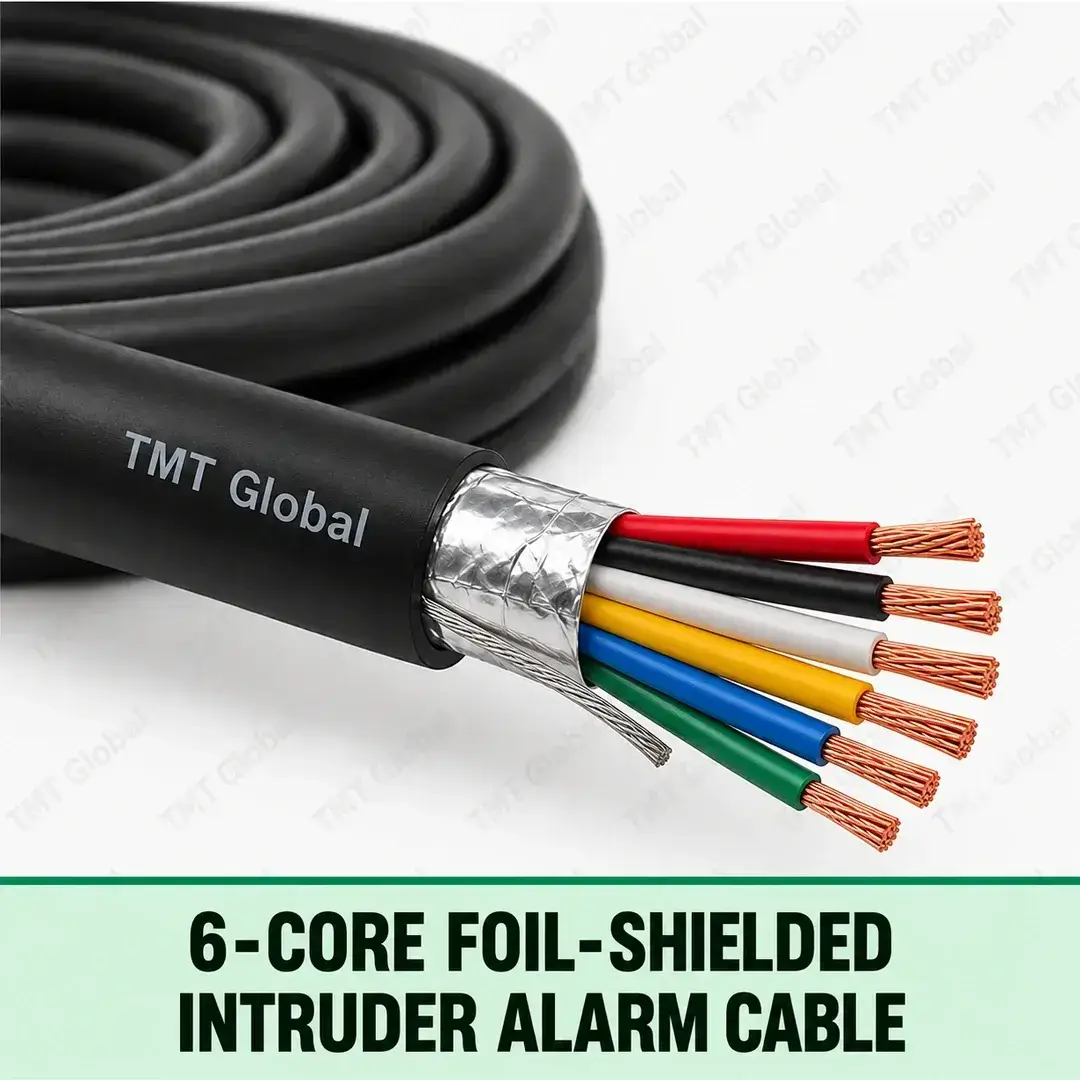

TMT Global 6 Core Foil-Shielded Intruder Alarm Cable Series

TMT Global 6 Core Foil-Shielded Intruder Alarm Cable is a controlled Security & ELV cable family for professional burglar, intrusion and hold-up alarm installations. Six-core shielded intruder-alarm cable for detector, keypad and panel-peripheral wiring in locations requiring added electromagnetic-noise protection. Exact AWG and jacket variations remain searchable Series rows under this product page.

KEY FEATURES

6-core round alarm construction
Overall foil + drain
18 / 20 / 22 / 24 AWG range
PVC / LSZH / PE Outdoor
305 m standard package

APPLICATIONS

Alarm detectors
Panel peripherals
Noisy commercial environments

Technical Specifications

TECHNICAL SPECIFICATION	VALUE
Product family	6 Core Foil-Shielded Intruder Alarm Cable
Series	06S-AM
Primary application	Screened multi-function alarm wiring
Core configuration	6 cores
Conductor sizes	18 AWG / 20 AWG / 22 AWG / 24 AWG
Conductor material	Bare copper
Screening	Overall foil + drain
Outer-jacket options	PVC / LSZH / PE Outdoor
Standard colours	White for PVC/LSZH; Black for PE Outdoor
Standard package	305 m
Cable form	Round
Series availability	12 exact Series items: 18 / 20 / 22 / 24 AWG; PVC / LSZH / PE Outdoor

AWG / NOMINAL AREA / SERIES AVAILABILITY

AWG	NOMINAL AREA (mm²)	SERIES AVAILABILITY
18 AWG	0.823	PVC / LSZH / PE Outdoor
20 AWG	0.518	PVC / LSZH / PE Outdoor
22 AWG	0.326	PVC / LSZH / PE Outdoor
24 AWG	0.205	PVC / LSZH / PE Outdoor
