Choosing the 8 Core Foil-Shielded Intruder Alarm Cable

Eight cores let one run serve several detectors or a keypad and bus devices from the control panel. An overall aluminium/polyester foil screen with drain wire blocks high-frequency interference, so it suits signal and data circuits that share containment with other cabling.

Order code: 08S-AM. Send us the length, jacket and quantity for a project quotation and datasheet.

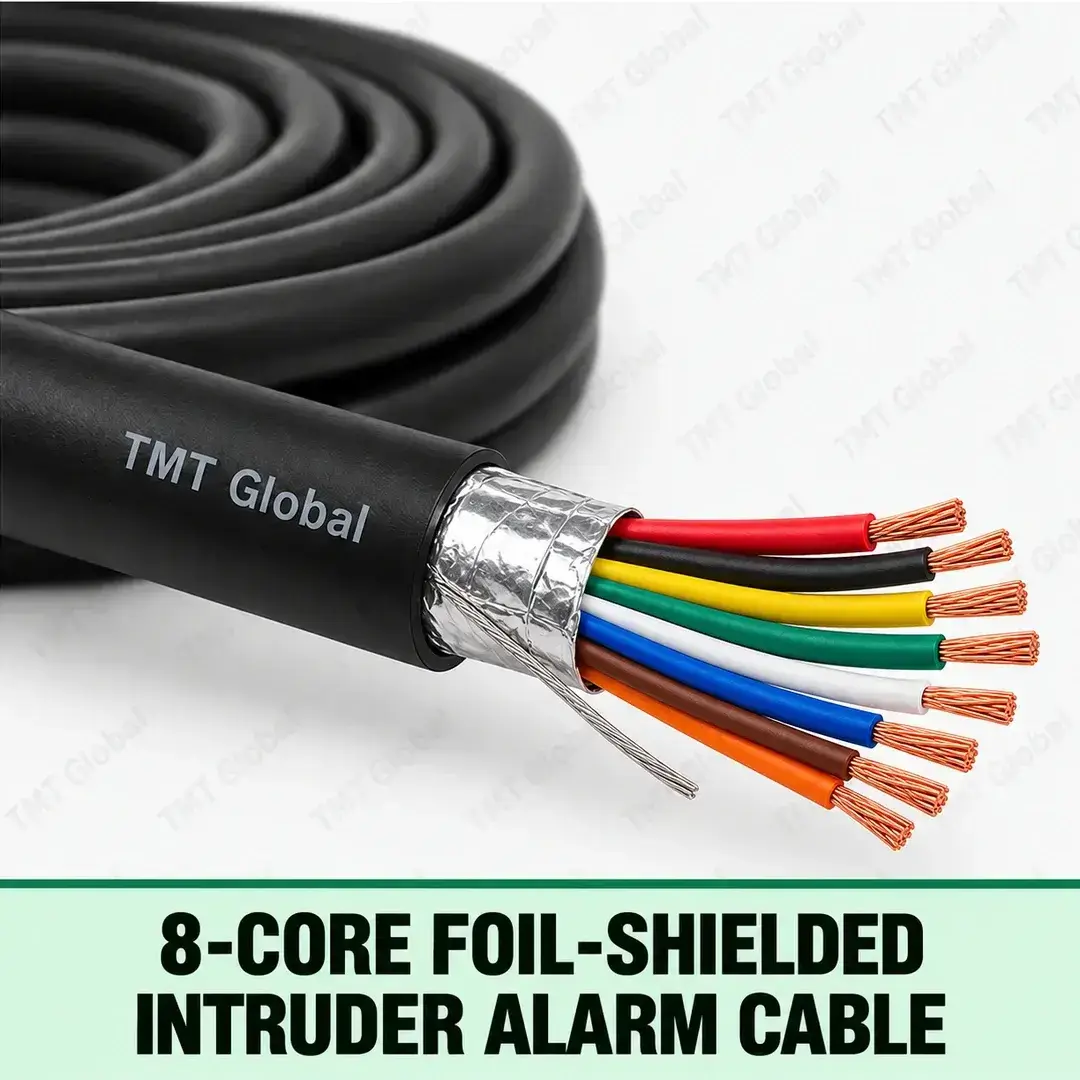

TMT Global 8 Core Foil-Shielded Intruder Alarm Cable Series

TMT Global 8 Core Foil-Shielded Intruder Alarm Cable is a controlled Security & ELV cable family for professional burglar, intrusion and hold-up alarm installations. Eight-core screened alarm cable for professional intrusion and hold-up alarm systems where multi-core capacity and overall screening are required. Exact AWG and jacket variations remain searchable Series rows under this product page.

KEY FEATURES

8-core round alarm construction
Overall foil + drain
18 / 20 / 22 / 24 AWG range
PVC / LSZH / PE Outdoor
305 m standard package

APPLICATIONS

Alarm control peripherals
Keypads / expanders
Screened detector circuits

Technical Specifications

TECHNICAL SPECIFICATION	VALUE
Product family	8 Core Foil-Shielded Intruder Alarm Cable
Series	08S-AM
Primary application	Screened high-function alarm wiring
Core configuration	8 cores
Conductor sizes	18 AWG / 20 AWG / 22 AWG / 24 AWG
Conductor material	Bare copper
Screening	Overall foil + drain
Outer-jacket options	PVC / LSZH / PE Outdoor
Standard colours	White for PVC/LSZH; Black for PE Outdoor
Standard package	305 m
Cable form	Round
Series availability	12 exact Series items: 18 / 20 / 22 / 24 AWG; PVC / LSZH / PE Outdoor

AWG / NOMINAL AREA / SERIES AVAILABILITY

AWG	NOMINAL AREA (mm²)	SERIES AVAILABILITY
18 AWG	0.823	PVC / LSZH / PE Outdoor
20 AWG	0.518	PVC / LSZH / PE Outdoor
22 AWG	0.326	PVC / LSZH / PE Outdoor
24 AWG	0.205	PVC / LSZH / PE Outdoor
