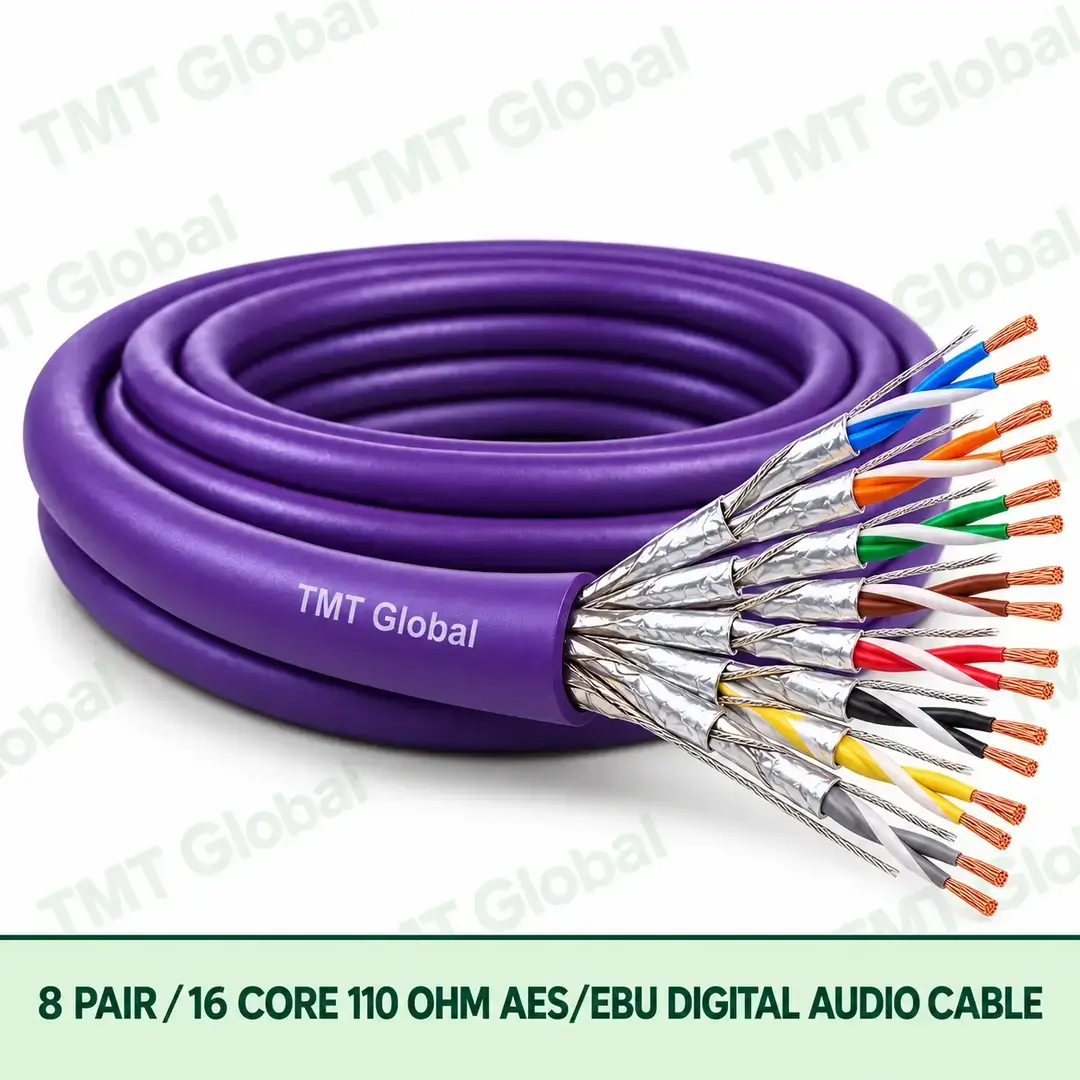

8 Pair / 16 Core 110 Ohm AES/EBU Digital Audio Cable
KEY FEATURES
- 8 twisted pairs / 16 colour-coded stranded copper conductors
- Controlled 110 ohm characteristic impedance target for AES3 / AES-EBU
- 22, 24, 26 AWG Series options
- PVC, LSZH jacket choices
- Low-capacitance audio construction subject to released factory design
- Exact searchable ordering code for every approved combination
| Brand | TMT Global |
|---|---|
| AWG | 22 awg, 24 awg, 26 awg |
| Colour | Violet |
| Jacket Type | PVC, LSZH |
| Length | 305 m |
Supplied in Oman by Khan Cables from our Muscat office and showroom in Ruwi, for projects in Muscat and across the Sultanate. Request a quote
Full specifications & datasheet: tmtglobal.co.uk →
Choosing the 8 Pair / 16 Core 110 Ohm AES/EBU Digital Audio Cable
8 pairs make it a multicore snake: up to 8 balanced channels between stage boxes, AV racks and mixing positions in one cable.
Related options in this range: 8 Pair / 16 Core Foil + Braid Shielded Balanced Audio Cable · 8 Pair / 16 Core Foil Shielded Balanced Audio Cable · 12 Pair / 24 Core 110 Ohm AES/EBU Digital Audio Cable · 4 Pair / 8 Core 110 Ohm AES/EBU Digital Audio Cable · 12 Pair / 24 Core Foil + Braid Shielded Balanced Audio Cable
Order code: 16S-DA. Send us the length, jacket and quantity for a project quotation and datasheet.
TMT 8 Pair / 16 Core 110 Ohm AES/EBU Digital Audio Cable Series
TMT Global 8 Pair / 16 Core 110 Ohm AES/EBU Digital Audio Cable is a configurable 110 ohm professional digital-audio cable family for studios, broadcast rooms, AV racks, theatres, venues and installed sound systems. The product page fixes the 8-pair AES/EBU electrical construction, while the TMT Series ordering table provides exact conductor-size and jacket item codes for search, quotation and project selection.
KEY FEATURES
- 8 twisted pairs / 16 colour-coded stranded copper conductors
- Controlled 110 ohm characteristic impedance target for AES3 / AES-EBU
- 22, 24, 26 AWG Series options
- PVC, LSZH jacket choices
- Low-capacitance audio construction subject to released factory design
- Exact searchable ordering code for every approved combination
TYPICAL APPLICATIONS
- AES3 / AES-EBU digital-audio links
- Broadcast, studio and post-production routing
- Digital consoles, interfaces, patch systems and equipment racks
- Multichannel digital-audio snakes and fixed installations
- Analogue audio use only where the released electrical design permits
Technical Specification
AWG / NOMINAL AREA / SERIES AVAILABILITY
