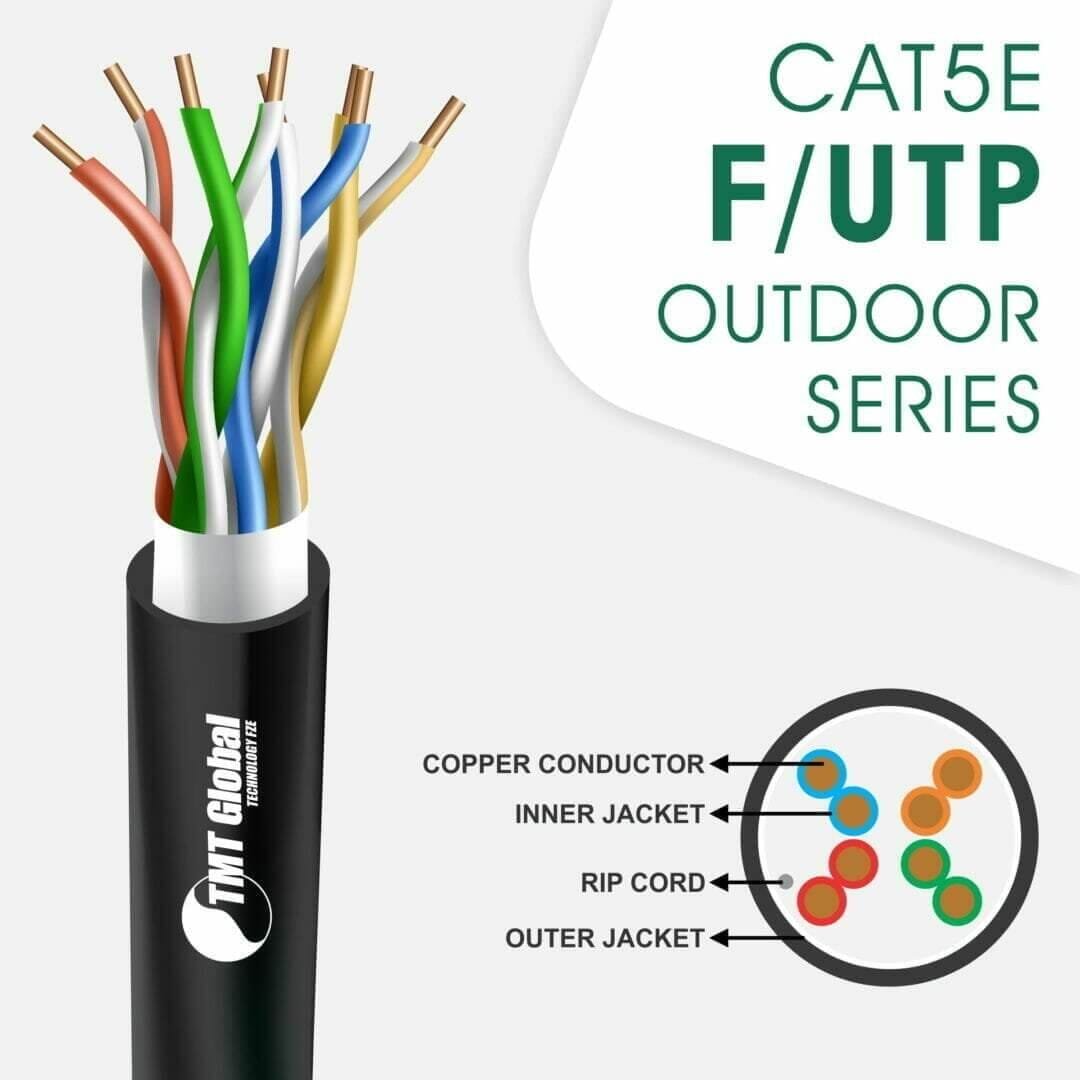

CAT5e F/UTP PE Outdoor Network Cable 24 AWG 4 Pair 305 m – 5X24ZMOK
General Specification:
•Conductor: Bare copper
•Conductor Size: 24AWG
• No. Of Pairs: 4 twisted pairs
• Overall Coverage: Aluminum Foil Polyester Tape
• Outer Jacket: PE
• Jacket Color: Black
• Packing: 305m / Box
• Item Code: 5X24ZMOK
| Length | 305 m |
|---|---|
| AWG | 24 awg |
| Brand | TMT Global |
| Colour | Black |
| Jacket Type | PE Outdoor |
Supplied in Oman by Khan Cables from our Muscat office and showroom in Ruwi, for projects in Muscat and across the Sultanate. Request a quote
Full specifications & datasheet: tmtglobal.co.uk →
The TMT Global CAT5e F/UTP PE Outdoor Network Cable 24 AWG 4 Pair 305 m – 5X24ZMOK is a premium choice for those in search of reliable and high-quality structured cabling solutions. Spanning 305 meters, this Outdoor cable is meticulously manufactured, tested, and complies with stringent standards, including IEC 60332-1-2 and ISO/IEC 11801:2011. Its flexible construction allows for effortless installation in narrow spaces, making it ideal for a variety of applications such as CCTV systems, audio-visual intercoms, public address systems, and smart home automation. This versatile cable not only supports high-performance structured cabling systems but also meets complex specifications across multiple industries, ensuring seamless connectivity and communication for any indoor or outdoor setup.
ELECTRICAL SPECIFICATIONS
Characteristic Impedance: 100―6 Ohm @ 1-100 MHz
DC Resistance: 93 Ohm/Km max.
Resistance unbalance: 2% max.
Mutual Capacitance: 5.6 nF/100m Max. @ 1 KHz
Cap. Unbalance (wire to ground): 1500 pF/Km max. @ 1 KHz.
Voltage rating: 72 Vdc max.
Dielectric strength: 1500 Volts/1 minute min rms
Velocity of Propagation (NVP): 67-69%
Insulation Resistance: 5000 Mega Ohm•Km min. @ 500 Vdc
Insulation Resistance: 45 nS/100m max @ 1-100 MHz
Coupling attenuation: 40 dB min @ 30-100
PHYSICAL AND MECHANICAL PROPERTIES
Basic Conductor: tmt copper
Conductor Size: 24AWG
Insulation: HDPE
Number of insulated conductors: 8, twisted in 4 pairs
Color Code of Pairs: Blue x White/Blue, Orange x White/Orange, Green x White/Green, Brown x White/Brown
Outer Jacket: Heavy-duty, black, UV-resistant PE compound for outdoor use.
Overall Coverage: Aluminum Foil Polyester Tape
Standard Jacket Color: Black
Standard Surface Marking: Includes TMT Global P/N, cable description, Meter mark and Model Number
Pulling force: 110 N max.
Short Term Bend Radius: 6xOD (mm)
Temperature operating range: -20 to +80C
Installation temperature range: 0 to +50C
Ordering Information
Item Name: CAT5e F/UTP PE Outdoor Network Cable 24 AWG 4 Pair 305 m – 5X24ZMOK
Item Code: 5X24ZMOK
