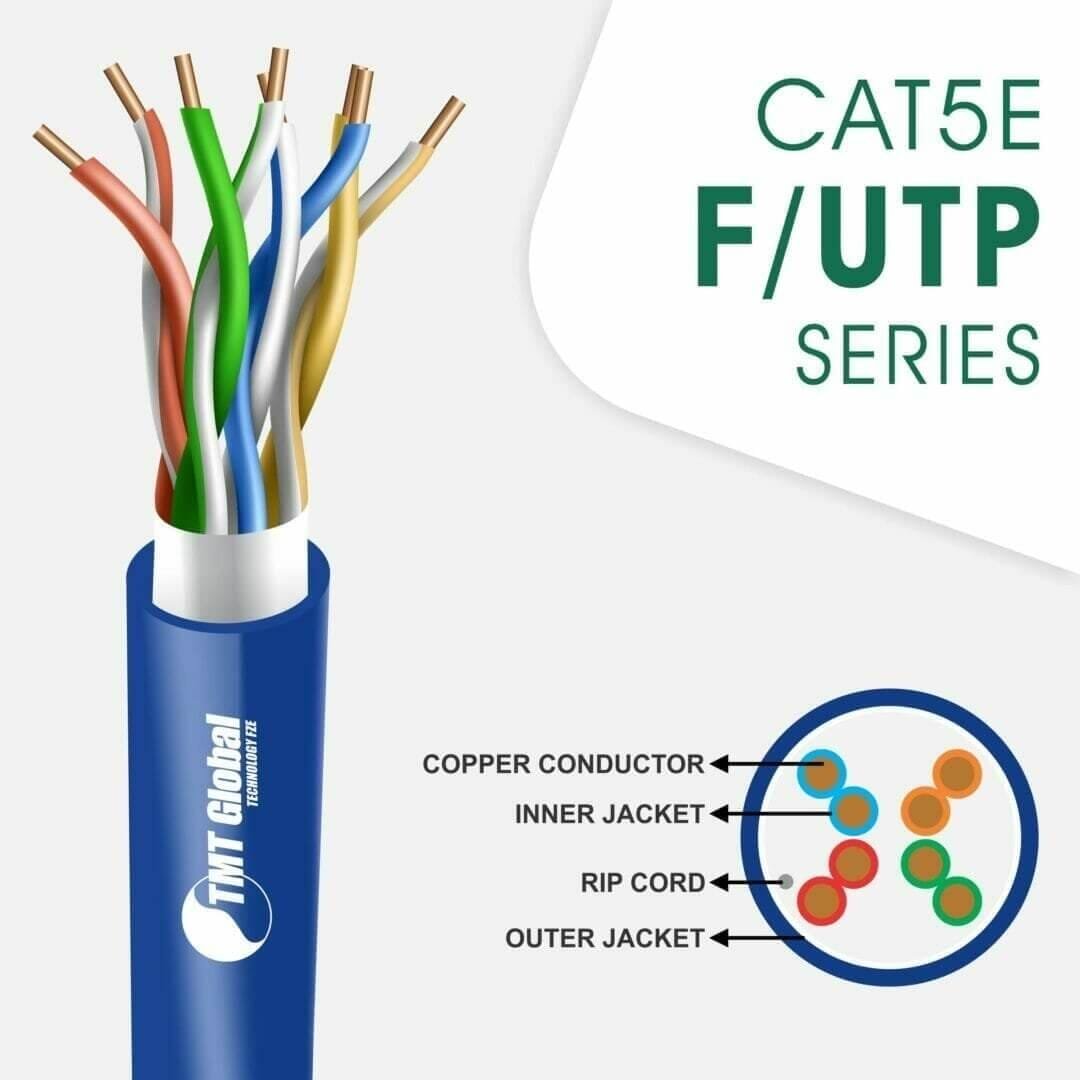

CAT5e F/UTP LSZH Network Cable 24 AWG 4 Pair 305 m – 5X248BLX Series

Choosing the CAT5e F/UTP LSZH Network Cable 24 AWG 4 Pair 305 m – 5X248BLX Series

Category 5e carries 1 Gb Ethernet over 100 m, suitable for voice, CCTV and standard desk connections. F/UTP adds an overall foil screen around the four pairs, reducing interference near lighting circuits, lift motors and power cables. The LSZH jacket gives off little smoke and no halogen gas in a fire, which consultants usually specify for offices, hospitals, schools, malls and other public buildings.

Related options in this range: CAT5e F/UTP PE Outdoor Network Cable 24 AWG 4 Pair 305 m – 5X248BOK · CAT5e F/UTP PVC Network Cable 24 AWG 4 Pair 305 m – 5X248BPX Series · CAT5e F/UTP LSZH Network Cable 24 AWG 4 Pair 305 m – 5X245BLX Series · CAT5e F/UTP PVC Network Cable 24 AWG 4 Pair 305 m – 5X245BPX Series · CAT5e U/UTP LSZH Network Cable 24 AWG 4 Pair 305 m – 5X14ZMLX Series

Order code: 5X248BLB. Send us the length, jacket and quantity for a project quotation and datasheet.

The TMT Global CAT5e F/UTP LSZH Network Cable 24 AWG 4 Pair 305 m – 5X248BLX Series is a premium choice for those in search of reliable and high-quality structured cabling solutions. Spanning 305 meters, this PVC cable is meticulously manufactured, tested, and complies with stringent standards, including IEC 60332-1-2 and ISO/IEC 11801:2011. Its flexible construction allows for effortless installation in narrow spaces, making it ideal for a variety of applications such as CCTV systems, audio-visual intercoms, public address systems, and smart home automation. This versatile cable not only supports high-performance structured cabling systems but also meets complex specifications across multiple industries, ensuring seamless connectivity and communication for any indoor or outdoor setup.

ELECTRICAL SPECIFICATIONS
Characteristic Impedance: 100―6 Ohm @ 1-100 MHz
DC Resistance: 93 Ohm/Km max.
Resistance unbalance: 2% max.
Mutual Capacitance: 5.6 nF/100m Max. @ 1 KHz
Cap. Unbalance (wire to ground): 1500 pF/Km max. @ 1 KHz.
Voltage rating: 72 Vdc max.
Dielectric strength: 1500 Volts/1 minute min rms
Velocity of Propagation (NVP): 67-69%
Insulation Resistance: 5000 Mega Ohm•Km min. @ 500 Vdc
Insulation Resistance: 45 nS/100m max @ 1-100 MHz
Coupling attenuation: 40 dB min @ 30-100

PHYSICAL AND MECHANICAL PROPERTIES
Basic Conductor: Bare copper
Conductor Size: 24AWG
Insulation: HDPE
Number of insulated conductors: 8, twisted in 4 pairs
Color Code of Pairs: Blue x White/Blue, Orange x White/Orange, Green x White/Green, Brown x White/Brown
Outer Jacket: PVC
Overall Coverage: Aluminum Foil Polyester Tape
Standard Jacket Color: Blue/Gray /Black/Green/Orange/Red/Violet/White/Yellow/Aqua
Standard Surface Marking: Includes TMT Global P/N, cable description, Meter mark and Model Number
Pulling force: 110 N max.
Short Term Bend Radius: 6xOD (mm)
Temperature operating range: -20 to +80C
Installation temperature range: 0 to +50C
Ordering Information
Item Name: CAT5e F/UTP LSZH Network Cable 24 AWG 4 Pair 305 m – 5X248BLX Series
