CAT6A F/UTP PVC Network Cable 23 AWG 4 Pair 305 m – 6A232BPX Series

Choosing the CAT6A F/UTP PVC Network Cable 23 AWG 4 Pair 305 m – 6A232BPX Series

Category 6A supports 10GBASE-T to the full 100 m channel, the right choice for Wi-Fi 6/7 access points, new office floors and anything planned to last 15+ years. F/UTP adds an overall foil screen around the four pairs, reducing interference near lighting circuits, lift motors and power cables. The PVC jacket is flexible and economical for general indoor installation where low-smoke cable is not specified.

Related options in this range: CAT6A F/UTP PE Outdoor Network Cable 23 AWG 4 Pair 305 m – 6A237BOK · CAT6A F/UTP LSZH Network Cable 23 AWG 4 Pair 305 m – 6A237BLX Series · CAT6A F/UTP PVC Network Cable 23 AWG 4 Pair 305 m – 6A237BPX Series · CAT6A F/UTP PE Outdoor Network Cable 23 AWG 4 Pair 305 m – 6A235BOK · CAT6A F/UTP LSZH Network Cable 23 AWG 4 Pair 305 m – 6A235BLX Series

Order code: 6A232BPB. Send us the length, jacket and quantity for a project quotation and datasheet.

Discover the benefits and features of the TMT Global Cat6a F/UTP PVC network cable. Engineered for modern networking, this high-quality cable surpasses traditional Cat6 standards, offering enhanced data transfer rates and improved signal integrity. With its 23 AWG 4-pair construction and F/UTP shielded design, this cable minimizes electromagnetic interference, ensuring reliable performance in heavy electronic environments. Ideal for both residential and commercial applications, the 6A236MPX series boasts a 305-meter length, making it perfect for long-distance runs. Capable of supporting speeds up to 10 Gigabits per second at 500 MHz, this Cat6a cable is a future-proof solution for your connectivity needs. Upgrade your network performance with this valuable investment.

ELECTRICAL SPECIFICATIONS
Characteristic Impedance: 100±6 Ohm @ 1-500 MHz
Loop Resistance: 25
Resistance unbalance: 2% max.
Mutual Capacitance: 5.6 nF/100m Max. @ 1 KHz
Cap. Unbalance (wire to ground): 1500 pF/Km max. @ 1 KHz.
Voltage rating: 72 Vdc max.
Dielectric strength: 1500 Volts/1 minute min rms
Velocity of Propagation (NVP): 67-69%
Propagation Delay Skew: 534 + 36/vf. nS/100m max @ 1-500 MHz
Insulation Resistance: 45 nS/100m max @ 1-500 MHz
Coupling attenuation: 55 dB min @ 30-100 MHz 55-20Log(f/100) @100-500 MHz

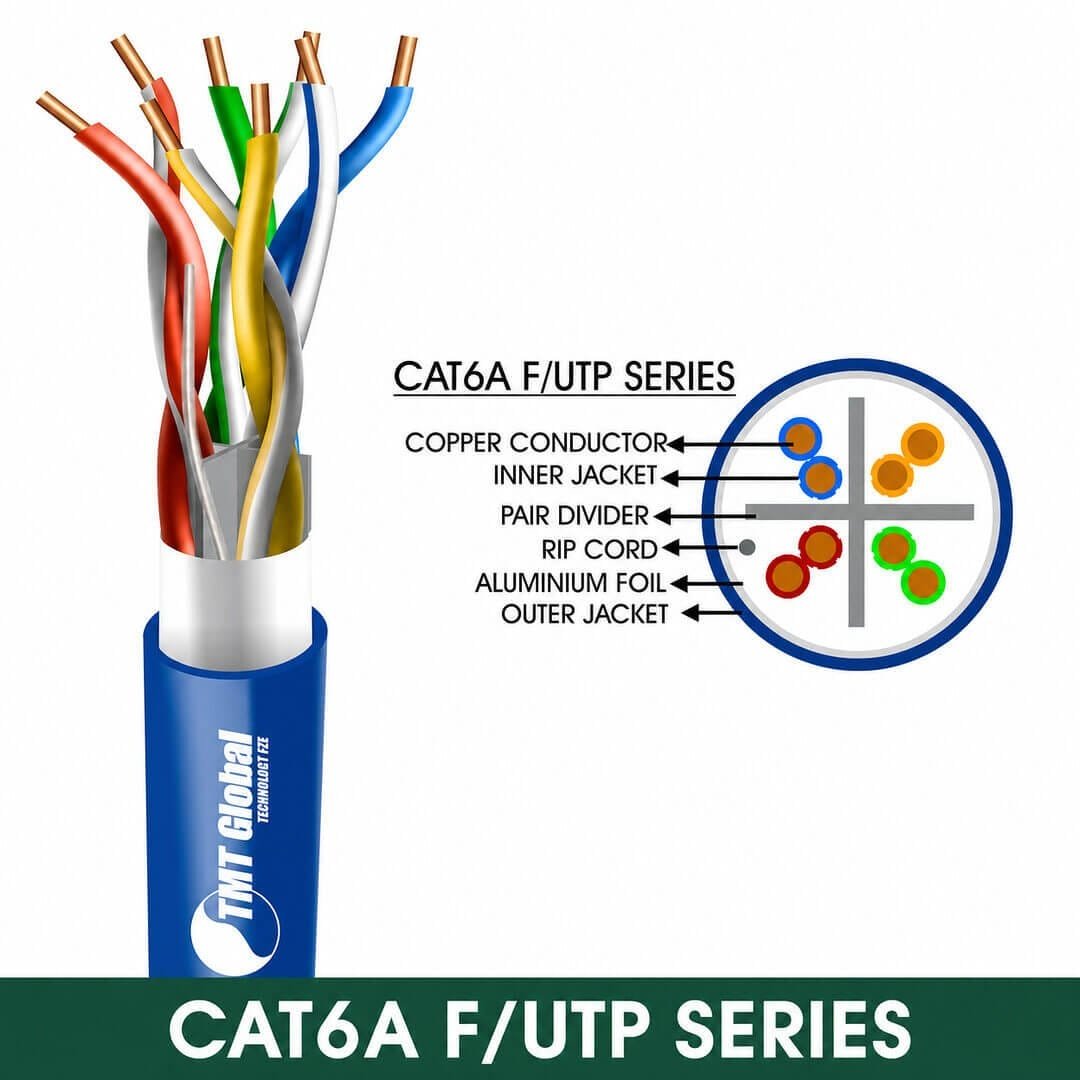

PHYSICAL AND MECHANICAL PROPERTIES
Basic Conductor: Bare copper
Conductor Size: 23AWG
Insulation: HDPE
Number of insulated conductors: 8, twisted in 4 pairs
Color Code of Pairs: Blue x White/Blue, Orange x White/Orange, Green x White/Green, Brown x White/Brown
Overall Coverage: aluminum Foil Polyester Tape
Drain wire: N
Outer Jacket: PVC
Standard Jacket Color:Blue/Gray /Black/Green/Orange/Red/Violet/White/Yellow/AQUA
Standard Surface Marking: Includes TMT Global P/N, cable description, Meter mark and Model Number
Pulling force: 110 N max.
Short Term Bend Radius: 8xOD (mm)
Temperature operating range: -20 to +80C
Installation temperature range: 0 to +50C
Ordering Information
Item Name: CAT6A F/UTP PVC Network Cable 23 AWG 4 Pair 305 m – 6A232BPX Series
