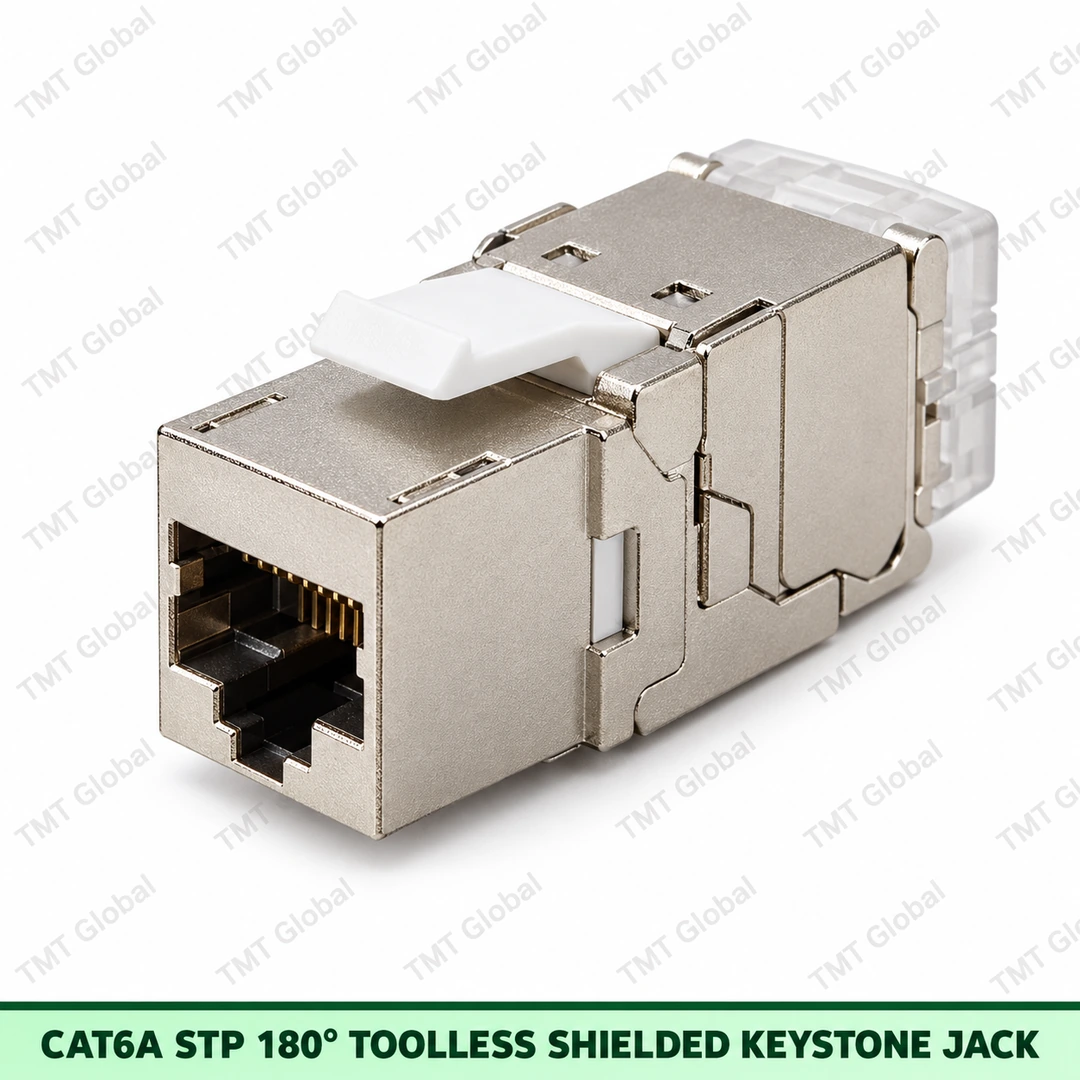

Cat6A STP 180° Toolless Shielded Keystone Jack
FEATURES
- Cat6A / Class EA transmission target
- 1–500 MHz performance range
- S/FTP / Shielded RJ45 8P8C interface
- Toolless termination
- T568A / T568B wiring identification
- 360° shield continuity / earthing path
| Brand | TMT Global |
|---|
Supplied in Oman by Khan Cables from our Muscat office and showroom in Ruwi, for projects in Muscat and across the Sultanate. Request a quote
Full specifications & datasheet: tmtglobal.co.uk →
Choosing the Cat6A STP 180° Toolless Shielded Keystone Jack
Cat6A performance (500 MHz) supports 10 Gb Ethernet to 100 m when used with Cat6A cable. The shielded body gives 360° screen continuity; use it only with shielded (F/UTP, S/FTP) cable and an earthed patch panel. The 180° straight-through entry suits patch panels and deep back boxes. Toolless termination lets installers terminate without a punch tool, saving time on large projects.
Order code: TMT-6ASBS1 .. Send us the quantity for a project quotation and datasheet.
TMT Cat6A STP 180° Toolless Shielded Keystone Jack Series
The TMT Global Cat6A STP 180° Toolless Shielded Keystone Jack is a controlled keystone connectivity product for Cat6A / Class EA structured cabling terminations. It provides a standards-aligned RJ45 8P8C interface with toolless termination, 180° straight geometry and s/ftp / shielded construction. The product is intended for professional network installations where repeatable termination, reliable contact performance and consistent TMT specification control are required.
FEATURES
- Cat6A / Class EA transmission target
- 1–500 MHz performance range
- S/FTP / Shielded RJ45 8P8C interface
- Toolless termination
- T568A / T568B wiring identification
- 360° shield continuity / earthing path
APPLICATIONS
- Shielded structured cabling
- Data centres
- Industrial LAN
- Security networks
- High-EMI environments
Technical Specification
STANDARDS & COMPLIANCE
- IEC 60603-7-51:2010
- ISO/IEC 11801-1 structured cabling system application
- Shield continuity / bonding path for screened cabling
- ANSI/TIA-568.2-D where applicable
- EN 50173 where applicable
- UL 94 V-0 polymer components
- RoHS
- REACH
AUTHORITY FIRE-PERFORMANCE NOTE
Keystone jacks are connectivity hardware, not permanent telecom cables. Euroclass/CPR cable fire-rating and IEC/EN 60332-1-2 cable flame tests are not applied to this hardware unless a specific accredited assembly test covers the product. Use UL 94 V-0 for applicable plastic parts.
PRODUCT CONTROL STATEMENT
This SKU is defined by the published TMT website/datasheet specification. Any OEM production must match the listed construction, interface, category, termination and compliance requirements and provide supporting test/conformity evidence.
