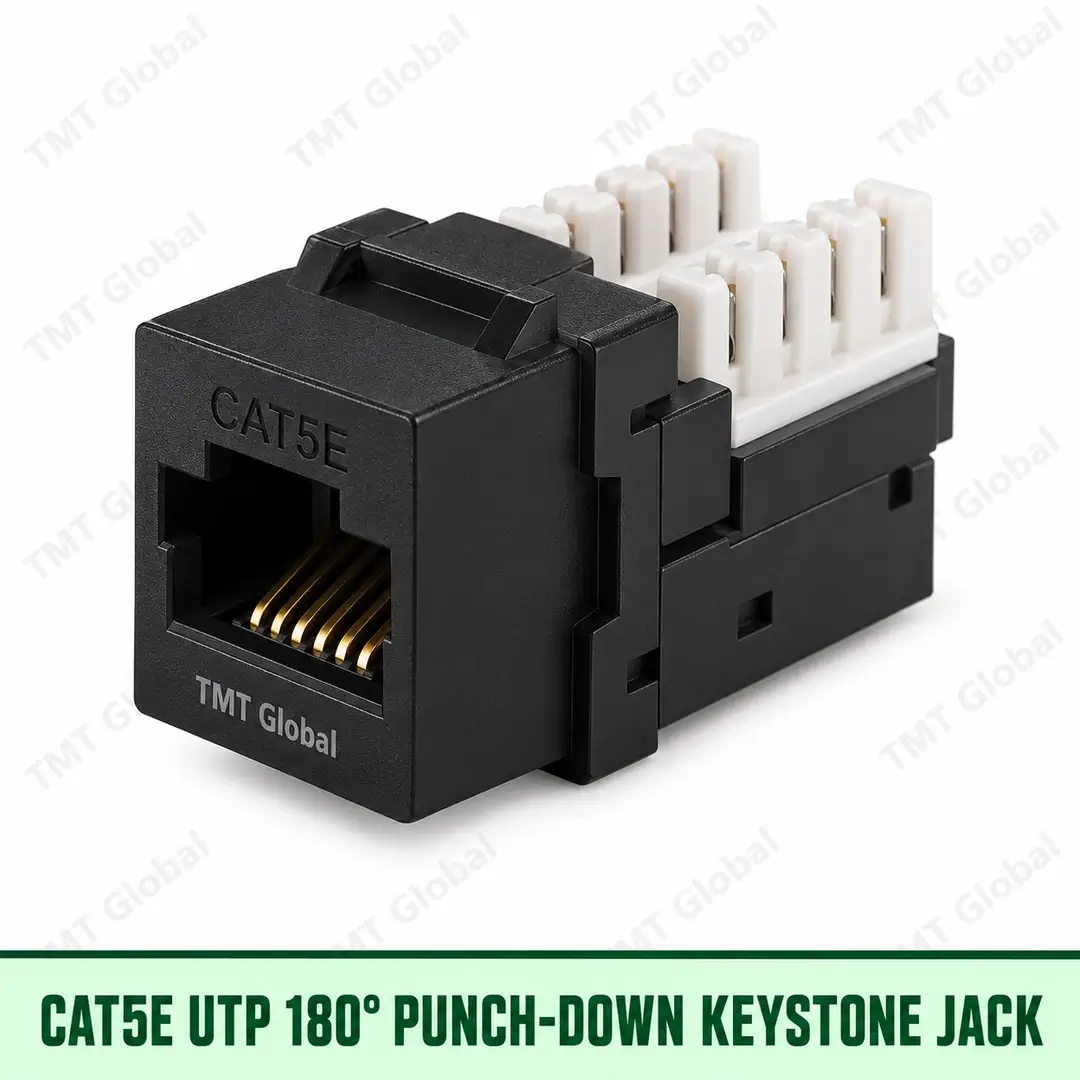

Cat5e UTP 180° Punch-Down Keystone Jack
FEATURES
- Cat5e / Class D transmission target
- 1–100 MHz performance range
- UTP / Unshielded RJ45 8P8C interface
- Punch-down IDC termination
- T568A / T568B wiring identification
- Compact unshielded modular format
| Brand | TMT Global |
|---|
Supplied in Oman by Khan Cables from our Muscat office and showroom in Ruwi, for projects in Muscat and across the Sultanate. Request a quote
Full specifications & datasheet: tmtglobal.co.uk →
TMT Global Cat5e UTP 180° Punch-Down Keystone Jack Series
The TMT Global Cat5e UTP 180° Punch-Down Keystone Jack is a controlled keystone connectivity product for Cat5e / Class D structured cabling terminations. It provides a standards-aligned RJ45 8P8C interface with punch-down idc termination, 180° straight geometry and utp / unshielded construction. The product is intended for professional network installations where repeatable termination, reliable contact performance and consistent TMT specification control are required.
FEATURES
- Cat5e / Class D transmission target
- 1–100 MHz performance range
- UTP / Unshielded RJ45 8P8C interface
- Punch-down IDC termination
- T568A / T568B wiring identification
- Compact unshielded modular format
APPLICATIONS
- Work-area outlets
- Patch panels
- Enterprise LAN
- IP CCTV / VoIP
- Commercial buildings
STANDARDS & COMPLIANCE
- IEC 60603-7-2:2010
- ISO/IEC 11801-1 structured cabling system application
- ANSI/TIA-568.2-D where applicable
- EN 50173 where applicable
- UL 94 V-0 polymer components
- RoHS
- REACH
AUTHORITY FIRE-PERFORMANCE NOTE
Keystone jacks are connectivity hardware, not permanent telecom cables. Euroclass/CPR cable fire-rating and IEC/EN 60332-1-2 cable flame tests are not applied to this hardware unless a specific accredited assembly test covers the product. Use UL 94 V-0 for applicable plastic parts.
PRODUCT CONTROL STATEMENT
This SKU is defined by the published TMT website/datasheet specification. Any OEM production must match the listed construction, interface, category, termination and compliance requirements and provide supporting test/conformity evidence.
