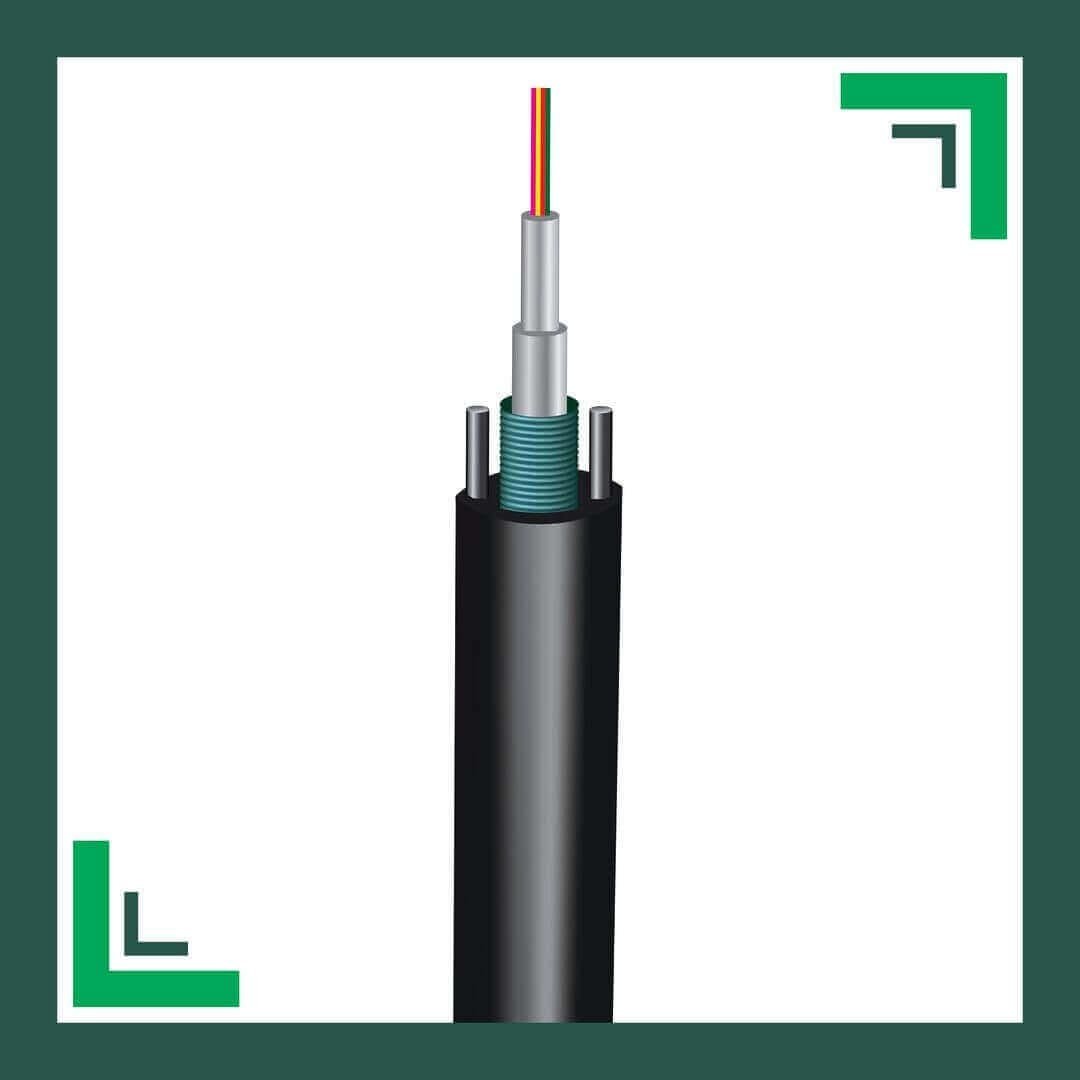

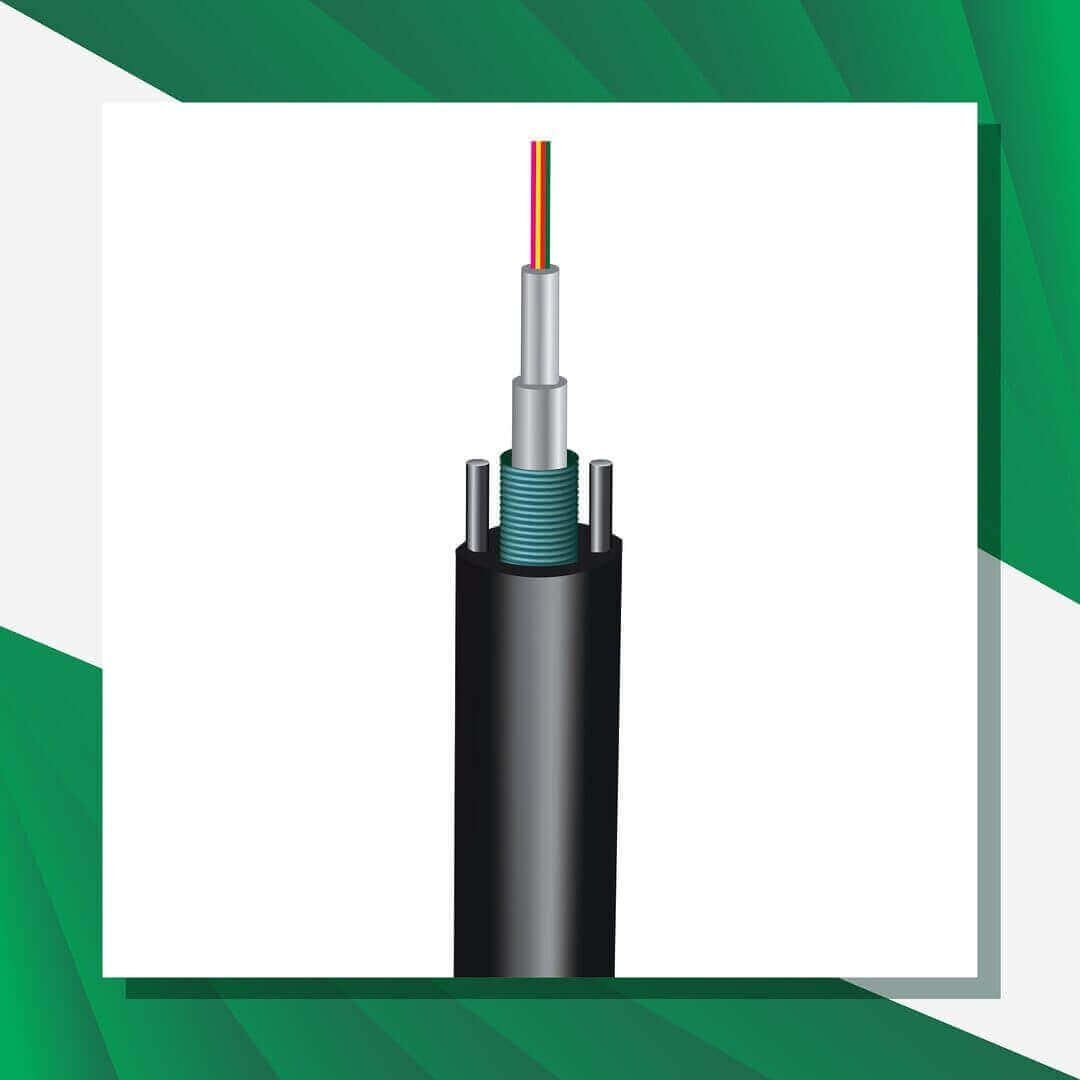

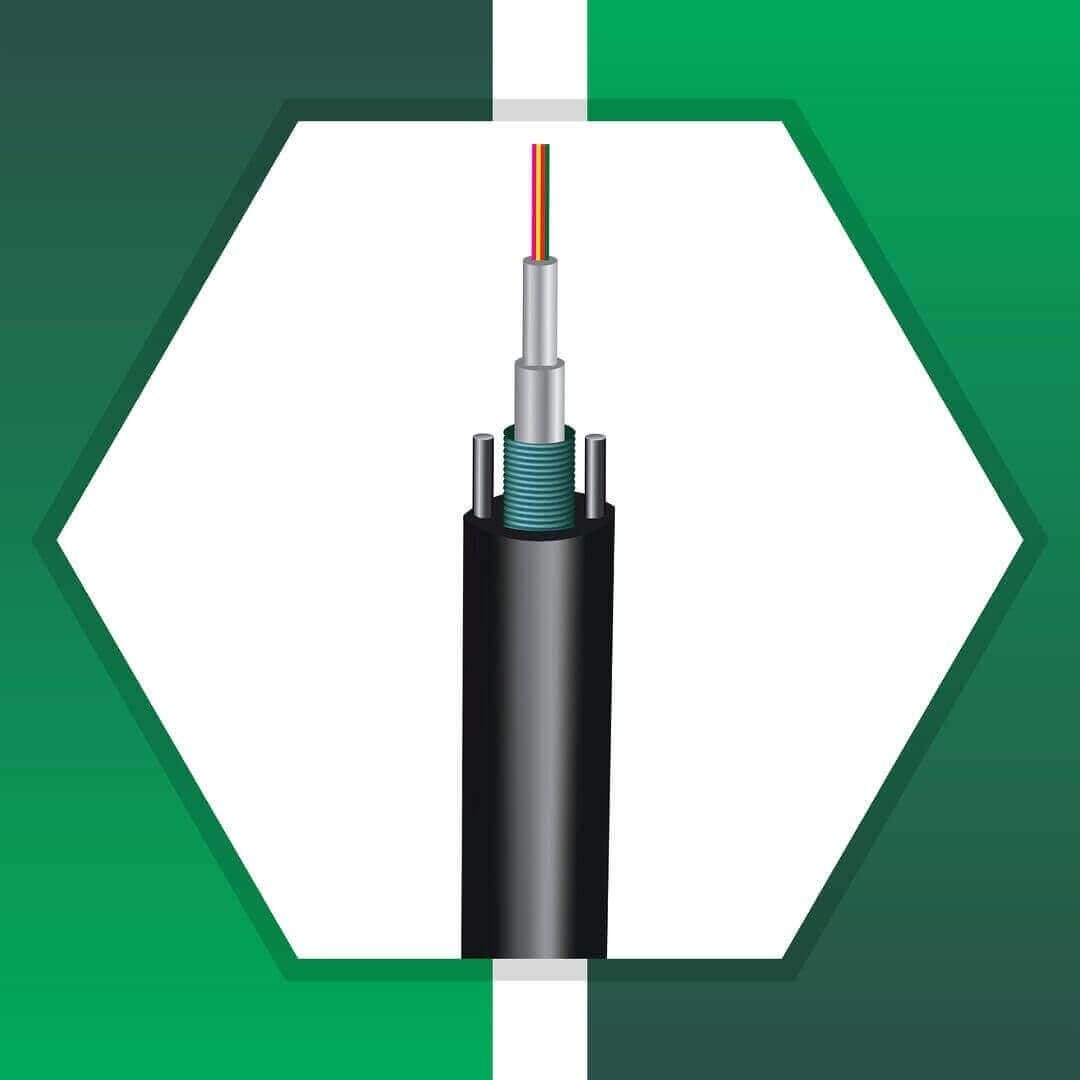

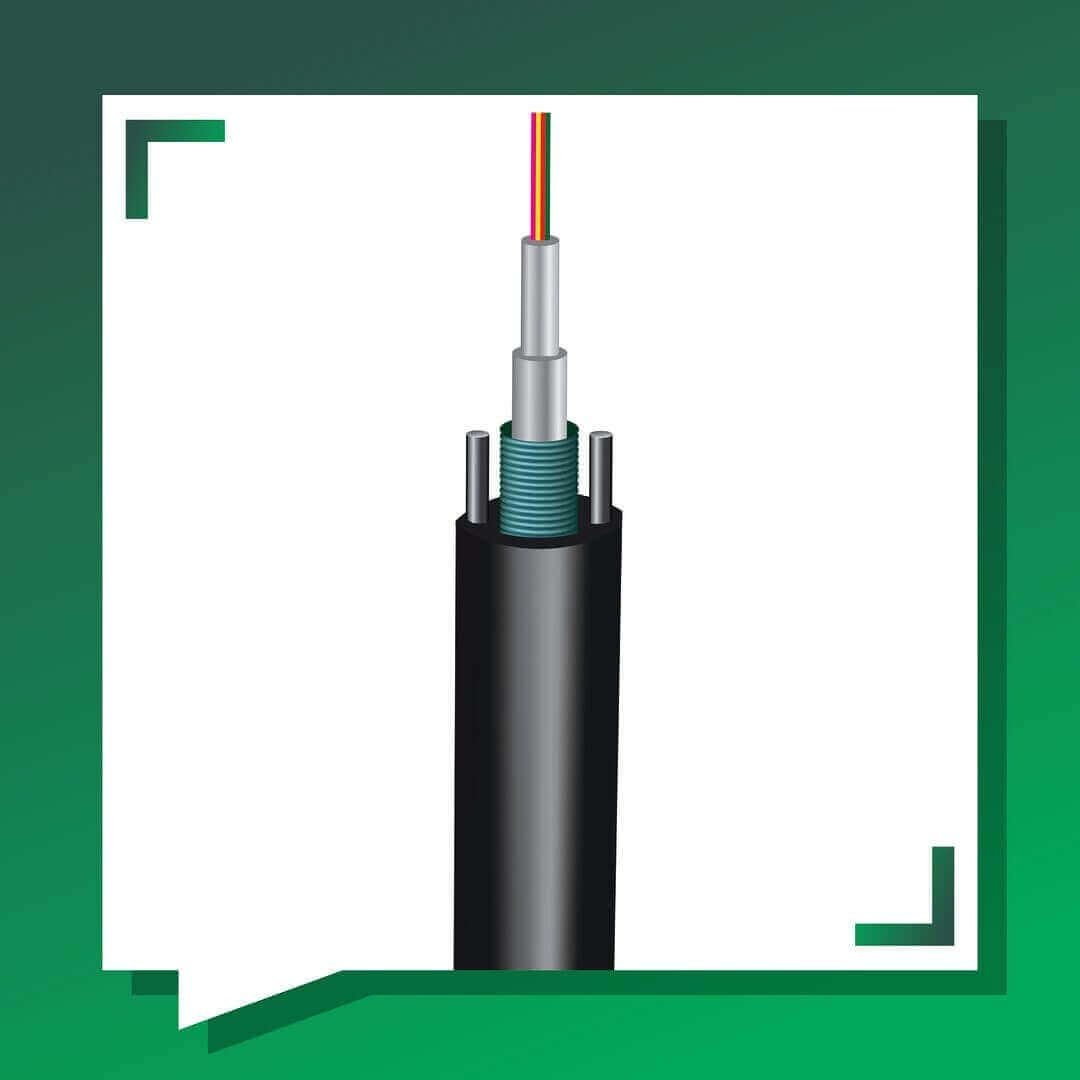

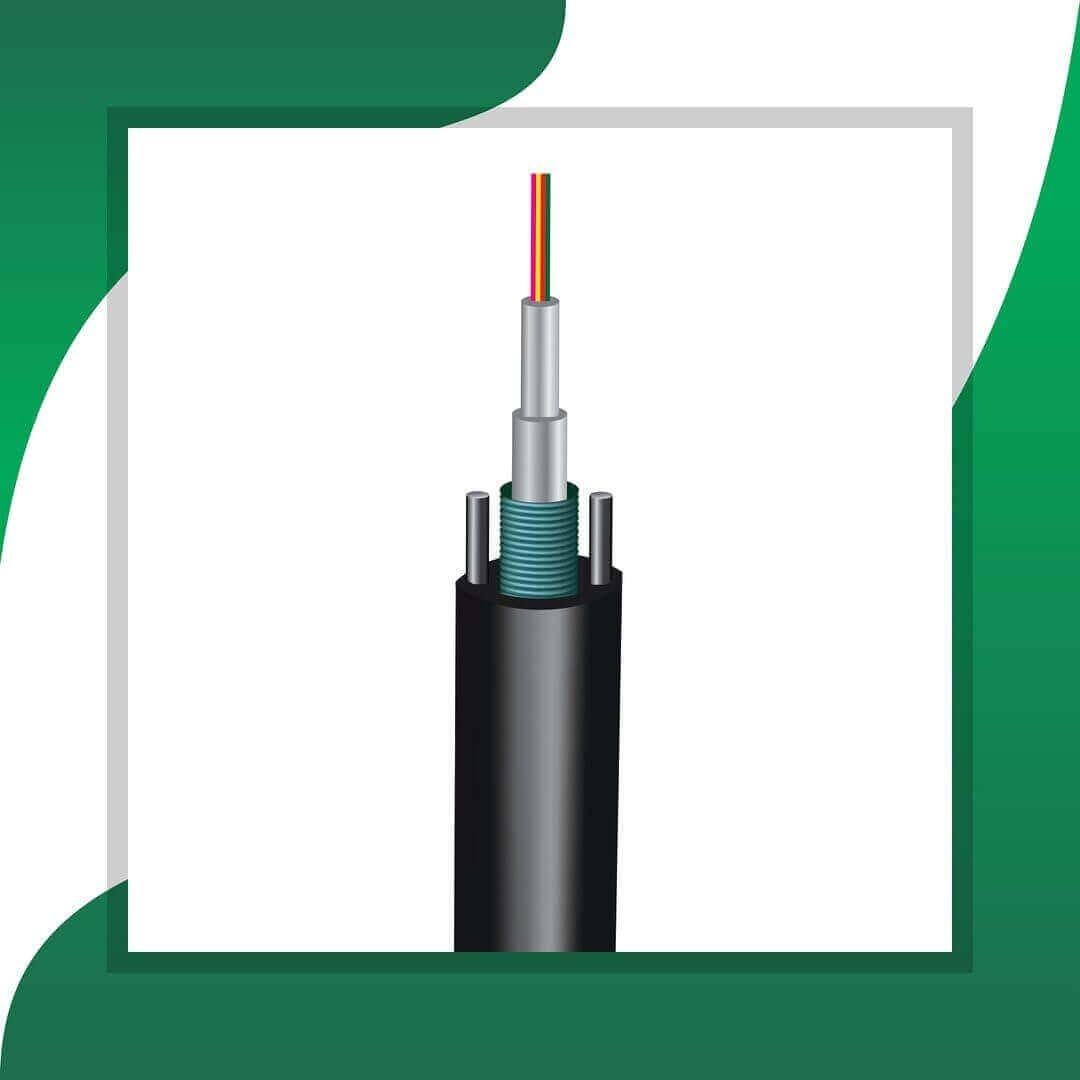

12 core fiber optic cable armored multimode om2 indoor outdoor
General Specification
Products : Multi Mode Fiber Optic cable
Fiber Count : 12
Fiber Type : 50/125 OM2

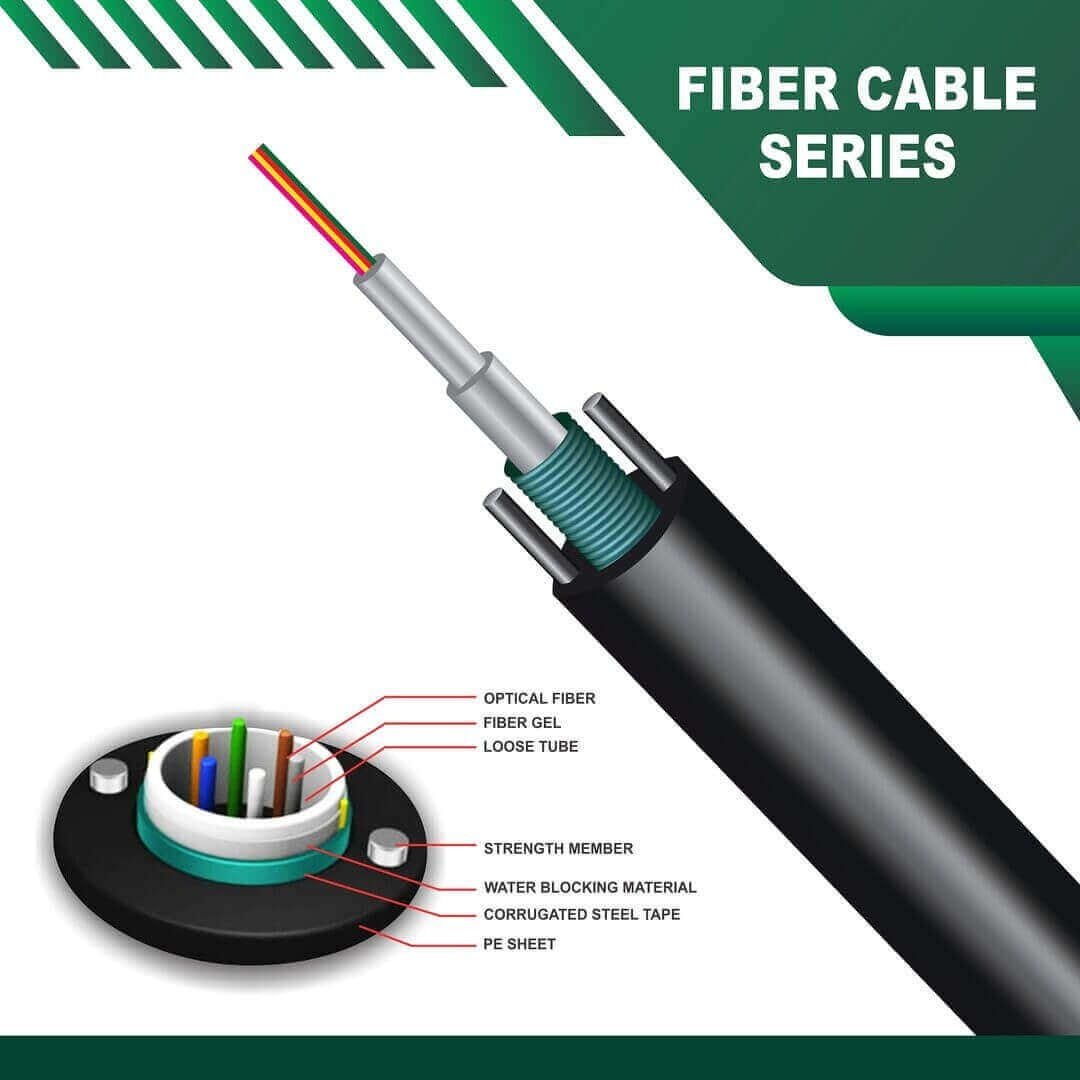

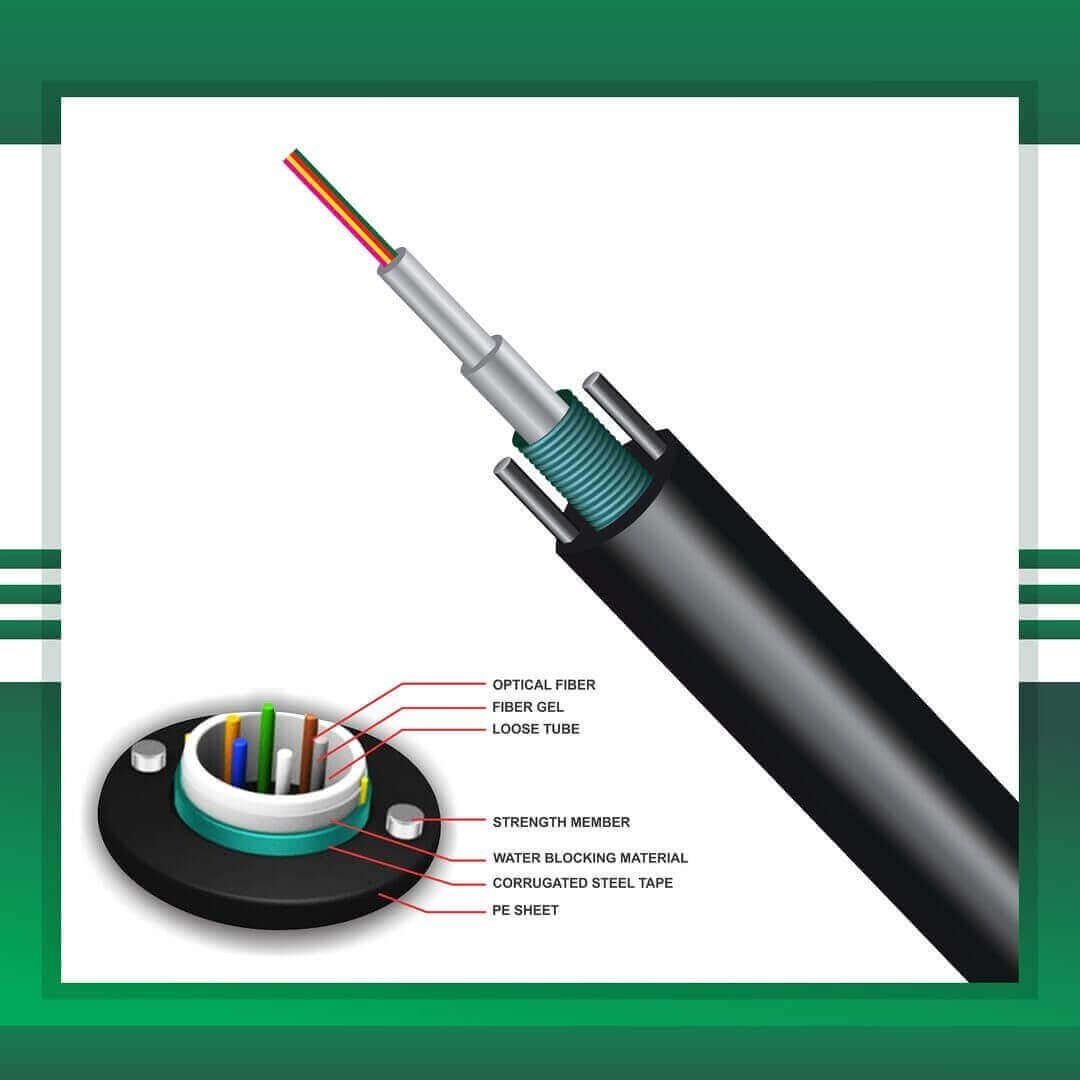

Armored : Corrugated Steel Tape
Outer Jacket : PE
Attenuation (max/KM)Â : 3.5 dB/km (850) 1.5 dB/km (1300 nm)
Length/ Drum : 2000 m Drum ±5%
Product IDÂ : TMT-122LPK
Choosing the 12 core fiber optic cable armored multimode om2 indoor outdoor
Twelve fibres make a building backbone: several duplex links between floors or from the main comms room to a distribution point, with spares. OM2 (50/125) carries 1 Gb Ethernet up to about 550 m; for new 10 Gb links choose OM3 or OM4. Corrugated steel tape armour protects against rodents and crushing for direct burial and outdoor ducts.
Related options in this range: 12 Core Fiber Optic Cable Armored Multimode OM4 Indoor Outdoor · 12 core fiber optic cable om3 multimode indoor outdoor · 12 Core OM3 Fiber Optic Cable Armored Multimode Indoor Outdoor · 12 Core OM2 Fiber Optic Cable Multimode Indoor Outdoor · 8 core fiber optic cable multimode om4 indoor outdoor
Order code: TMT-122LPK. Send us the length, jacket and quantity for a project quotation and datasheet.
TMT GLOBAL 12 core fiber optic cable armored multimode om2 indoor outdoor
TMT GLOBAL 12 core fiber optic cable armored multimode om2 indoor outdoor provides high-strength optical fiber cables for use in various industrial, indoor, and outdoor applications. Offering unique properties and benefits for different types of use, multimode fiber optic cable indoor/outdoor fiber patch panel fiber optic cables preterminated fiber optic cable indoor/outdoor our communications optical fiber cable products can easily meet complex application requirements and specifications. optical fiber cable FTTH ,FTTX , indoor/outdoor SM/MM, OS1,OS2 ,OM1,OM2,OM3,OM4 is compliant with ISO/IEC and ANSI/TIA Standard.
| PHYSICAL DESCRIPTION | |
| Products | multimode Fiber optic cable |
| Tube Filling Compound | Thixotropic jelly |
| Fiber Type | 50/125 OM2 |
| Tube material | PBT ( Polybutylene Terephthalate) |
| Armored | Corrugated steel tape |
| Packing Detail | |
| Fiber Count | 6,8,12,24, |
| Tube Outer/Inner Diameter(mm) | 3.0/2.0 ± |
| Cable Diameter(mm) | 7.2*-12 |
| Cable Weight(kg/km) | 45± |
| Length/ Drum | 2000 m Drum ±5% |
| Ripcord | Polyester cord |
| Outer Jacket | PE,MDPE, LSZH |
| Mechanical and Environmental Properties | |||
| Physical tests | Value | Standard | |
| Tensile Strength | 2700 N (during Installation)Â
1700 N (during Operation) |
IEC 60794-1-E1 | |
| Impact Resistance | 10J, 3 impacts | IEC 60794-1-E4 | |
| Crush Resistance | 220 N/cm | IEC 60794-1-E3 | |
| Temperature Cycling | -40 to +70 °C | IEC 60794-1-F1 | |
| Flame Retardancy | According to IEC 60332-3 | IEC 60332-3 | |
| Cable Bending Radius | |||
| Bend Radius (during installation) | 20x cable diameter | IEC 60794-1-2-E11A | |
| Bend Radius (during Service) | 10x cable diameter | IEC 60794-1-E11 | |
| Repeating Bending | 20x cable diameter | IEC 60794-1-E6 | |
| Temperature Range) | |||
| Operation Temperature | -40 to +70 C | IEC 60794-1-2-F1 | |
| Storage and Transportation Temperature | -40 to +70 C | ||
| Installation Temperature | -30 to +60 C | ||
| Optical Characteristics | ||||
| Fiber type | 50/125 μm MM OM2 | 50/125 μm MM OM3 | 50/125 μm MM OM4 | |
| Attenuation (max) | 850 nm | 3.5 dB/km | 3.5 dB/km | 3.5 dB/km |
| 1300 nm | Â 1.5 dB/km | 1.5 dB/km | 1.5 dB/km | |
| Bandwidth (Laser EMB) | 850 nm | 2000 MHz.km | 2000 MHz.km | |
| 1300 nm | 500 MHz.km | 500 MHz.km | ||
| Bandwidth (Overfilled) | 850 nm | 700 MHz.km | 1500 MHz.km | 3500 MHz.km |
| 1300 nm | 500 MHz.km | 500 MHz.km | 500 MHz.km | |
| Numerical Aperture | 0.200±0.015 | 0.2±0.015 | 0.2±0.015 | |
| Core Diameter | 50 ± 2 μm | 50 ± 2 μm | 50 ± 2 μm | |
| Cladding Diameter | 125 ± 1μm | 125 ± 1μm | 125 ± 1μm | |
| Core/Clad Concentricity error | ≤ 1 μm | ≤ 1 μm | ≤ 1 μm | |
| Cladding non-circularity | ≤ 0.7 % | ≤ 0.7 % | ≤ 0.7 % | |
| Coating Diameter | 242 ± 5 μm | 242 ± 5 μm | 242 ± 5 μm | |
| Proof Test | ≥ 100kpsi or 0.7GPa | ≥ 100kpsi or 0.7GPa | ≥ 100kpsi or 0.7GPa | |
| Ordering Information | ||
| Model no | Products ID | Description |
| TMT-3200 | TMT-062LPK | 6 CORE MULTIMODEÂ INDOOR/OUTDOOR ARMOUREDÂ FIBER OPTIC CABLE OM2 |
| TMT-3201 | TMT-082LPK | 8 CORE MULTIMODEÂ INDOOR/OUTDOOR ARMOUREDÂ FIBER OPTIC CABLE OM2 |
| TMT-3202 | TMT-122LPK | 12 CORE MULTIMODEÂ INDOOR/OUTDOOR ARMOUREDÂ FIBER OPTIC CABLE OM2 |
| TMT-3203 | TMT-242LPK | 24 CORE MULTIMODEÂ INDOOR/OUTDOOR ARMOUREDÂ FIBER OPTIC CABLE OM2 |
