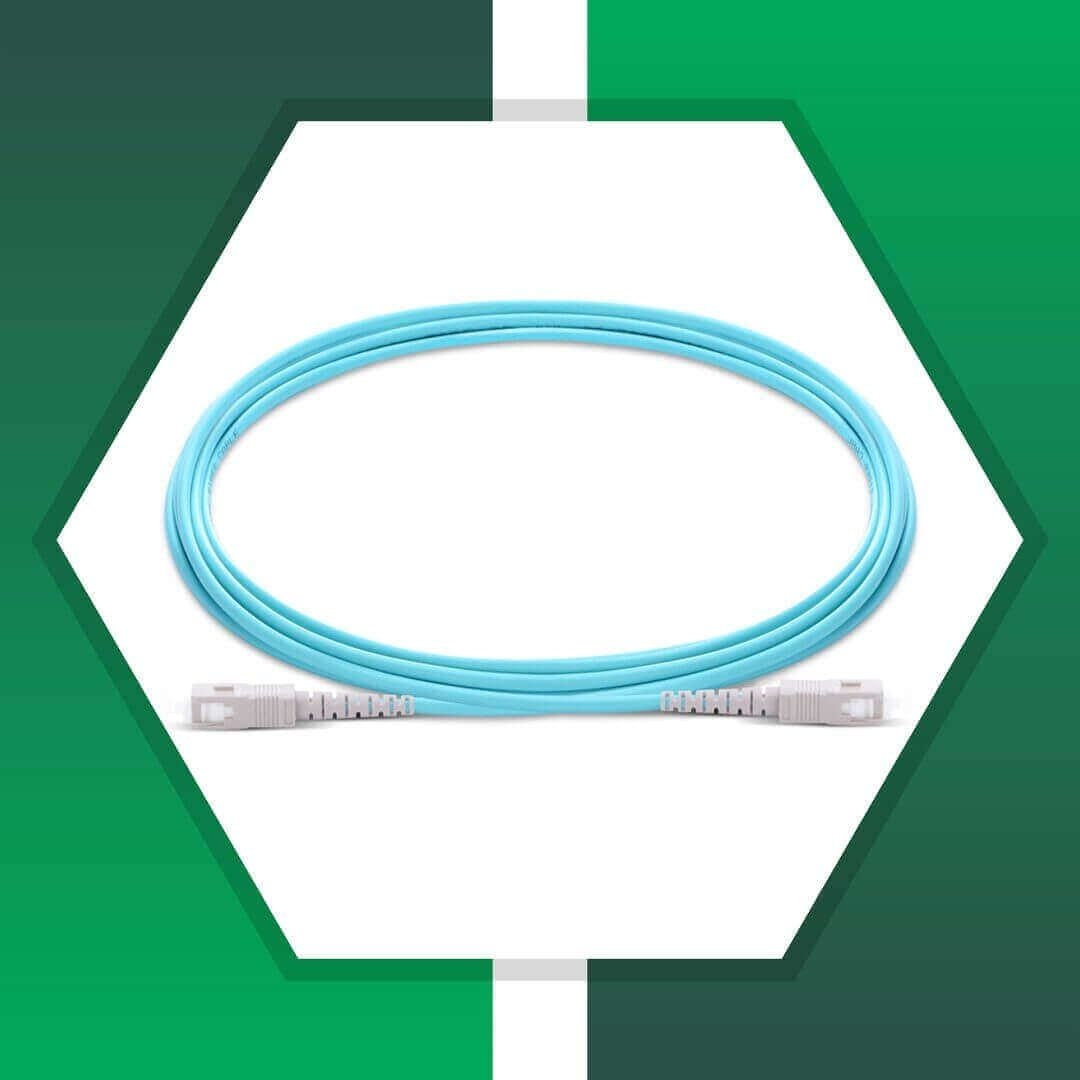

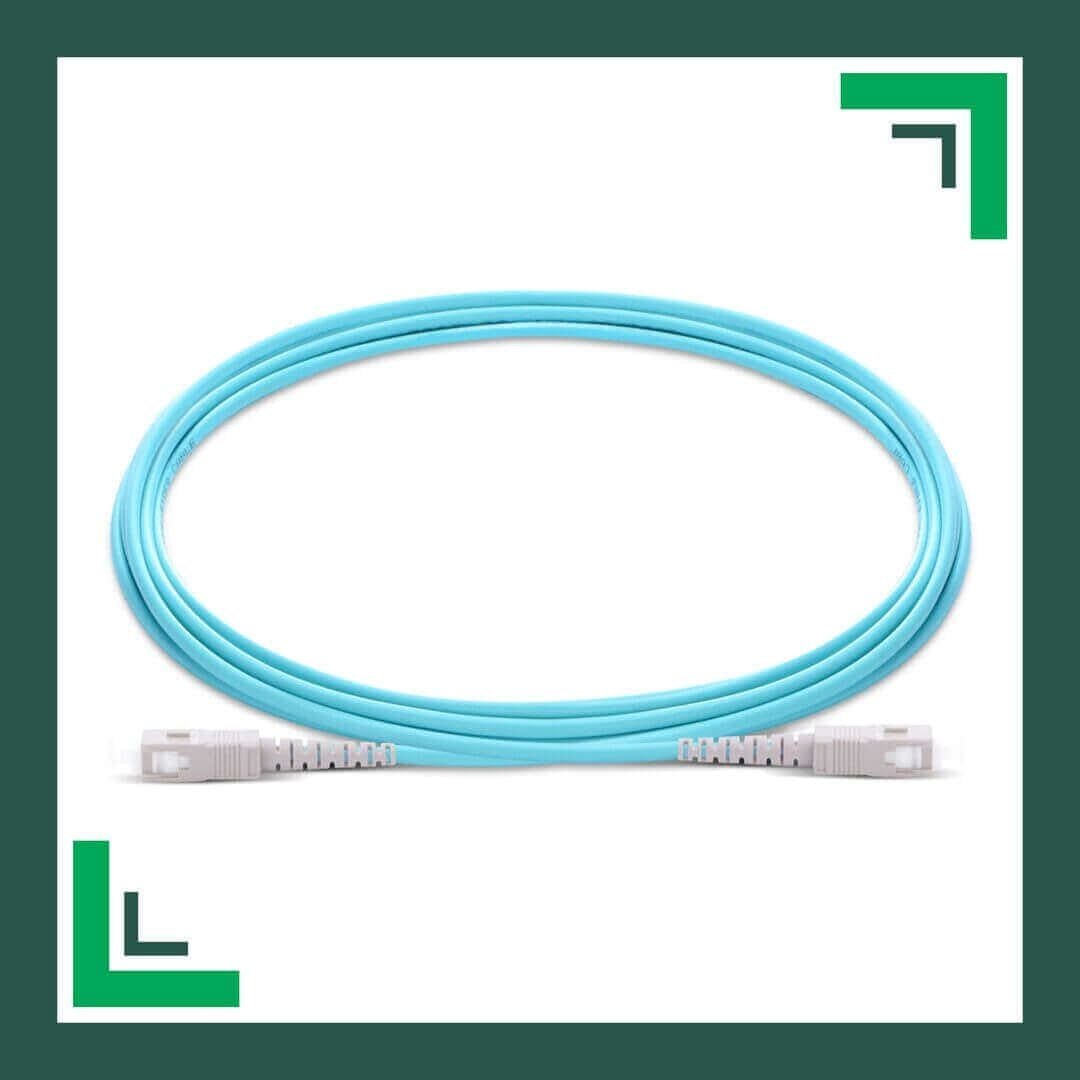

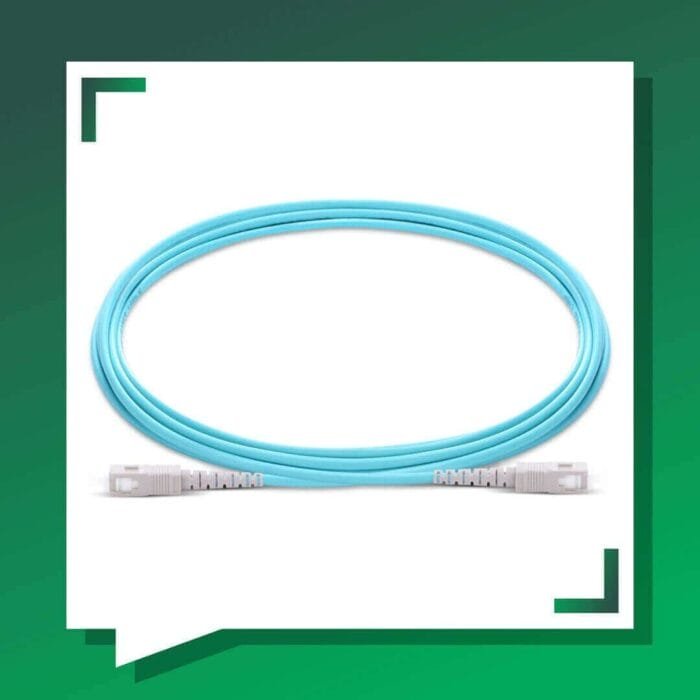

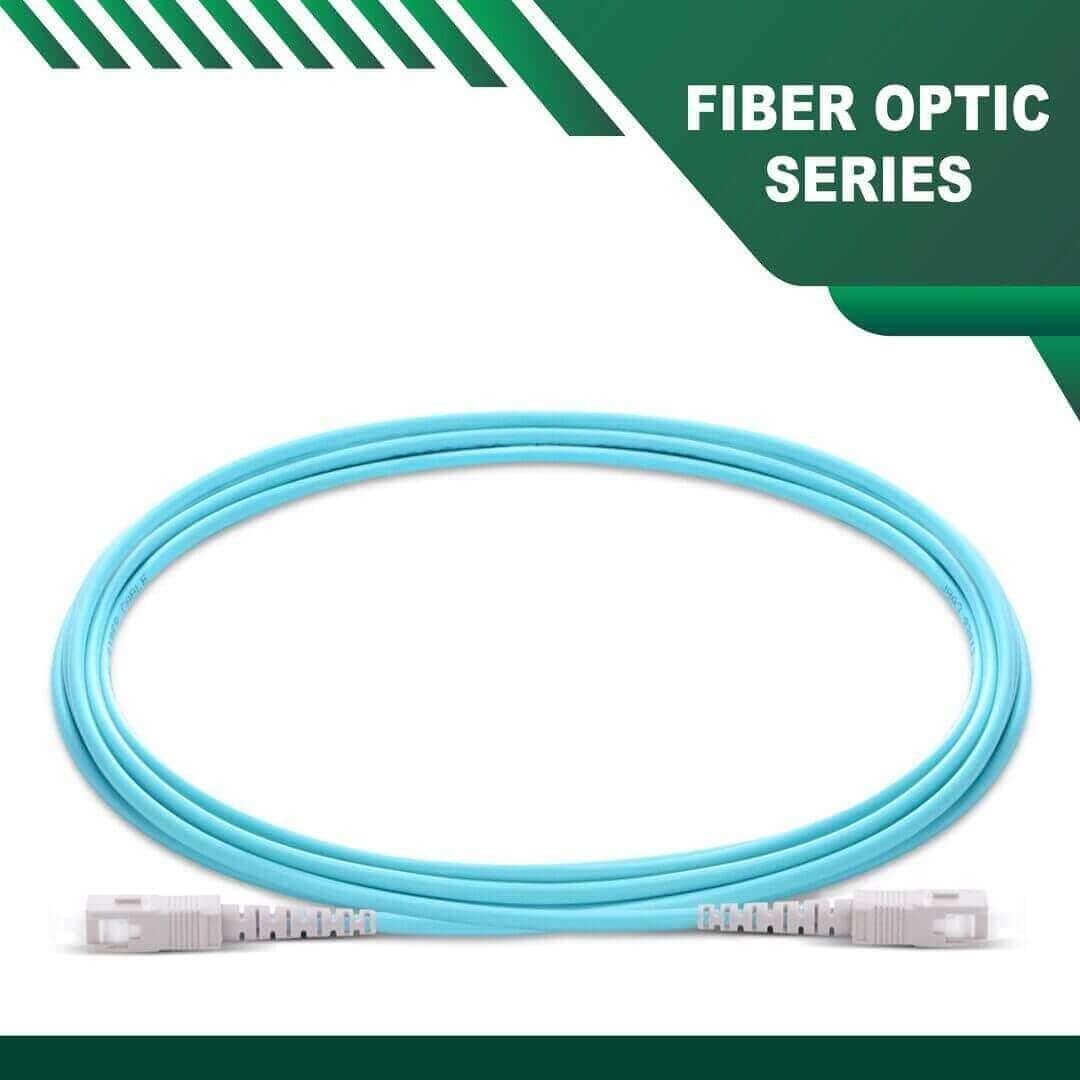

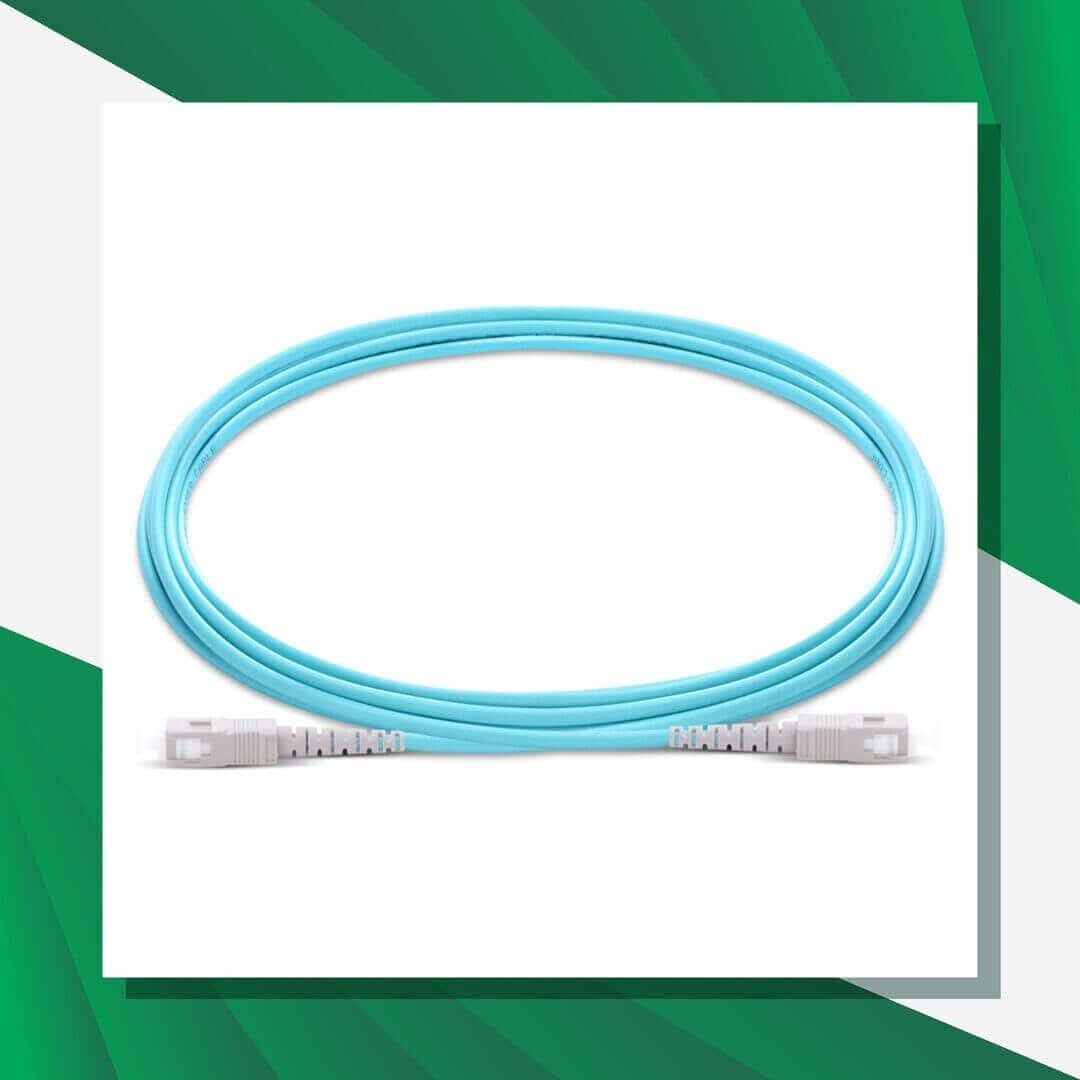

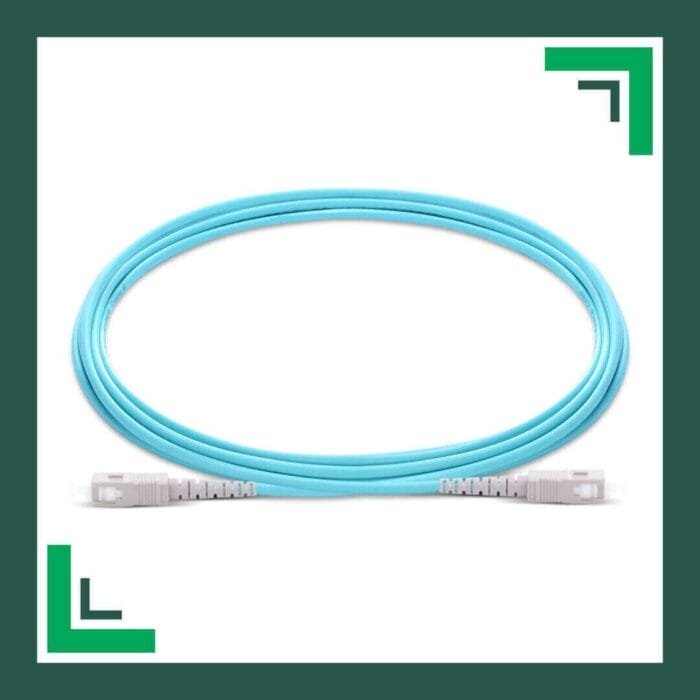

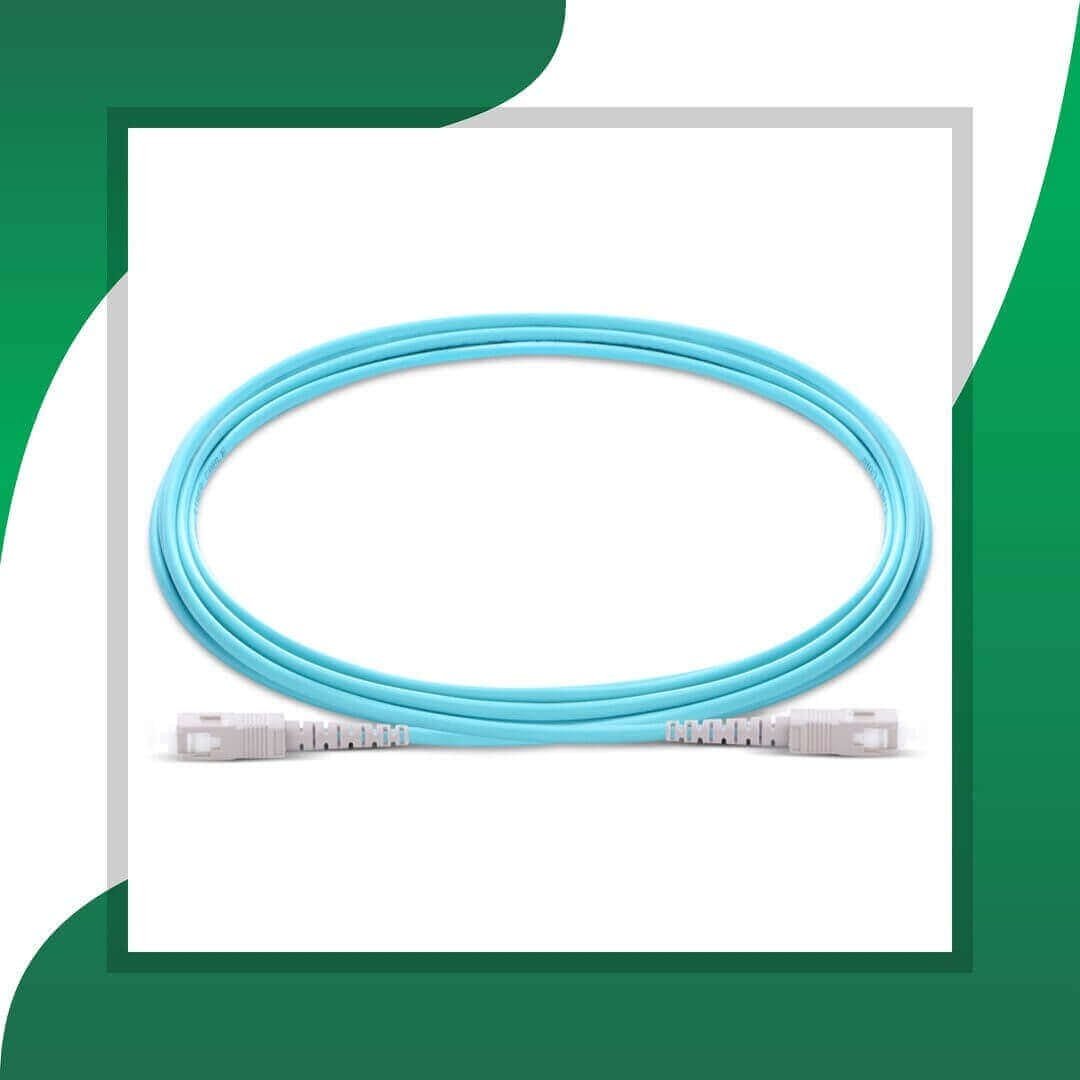

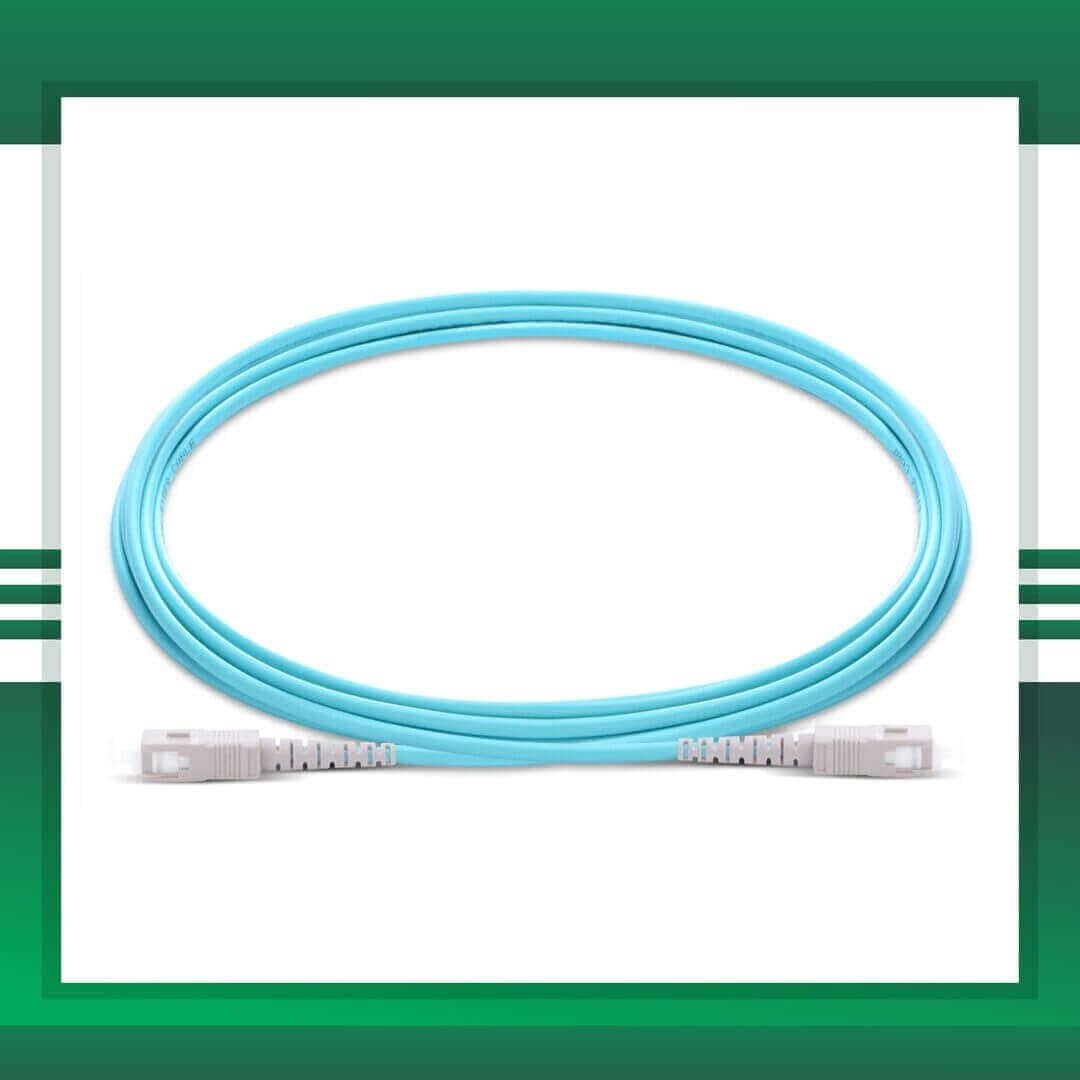

sc to sc upc simplex om3 fiber patch cord lszh multimode 1-100 meter

TMT GLOBAL sc to sc upc simplex om3 fiber patch cord lszh multimode 1-100 meter

TMT Global Fiber Optic Solution Patch Cords Multimode Series sc to sc upc simplex om3 fiber patch cord lszh multimode 1-100 meter are designed to deliver high-performance connectivity for demanding network environments. Engineered with precision, these patch cords ensure minimal signal loss and reliable data transmission over long distances, making them ideal for telecommunications, data centers, and enterprise applications. Manufactured to stringent quality standards, the Multimode Series offers compatibility with a wide range of equipment and connectors, providing a durable and efficient solution for modern fiber optic infrastructure needs.

Features
100% pre-terminated and tested in factory to ensure transfer performance.
Rapid configuration and networking, reduce installation time.
Supports 10G and 40G network applications.
Low insertion loss and added loss.
High back loss, small volume, light weight.
LSZH, OFNP, OFNR cable jacket.
Mechanical performance: IEC 61754-20 standard.
RoHS and REACH materials compliant.

Optical Specifications
Mode type: Multimode
Cable Type:  simplex
Connector Style: SC -SC
Polish Type: UPC
Diameter: 2.0mm, 3.0mm
Lengths: 1,2,3,4,5,8,10,15,20,25,30,40,50,70,100 Meter
Strength Member: Aramid Yarn
Outer Jacket: LSZH/PVC/OFNR/OFNP
Interchangeability & Vibration: ≤0.2dB
Minimum Bend radius: 10 -13mm
Wavelength: 850/1300nm
Operating temperature: -40~75°C
Jacket Color: Aqua
Storage temperature: -45~85°C
Fiber type: ITU-T G.652D, G.657A1 /A2
Multimode OM2:  ≤0.3 dB ≥30 dB
Multimode OM3:  ≤0.3 dB ≥30 dB
Multimode OM4: ≤0.3 dB ≥30 dB
Model Series: TMT-D522XXY
