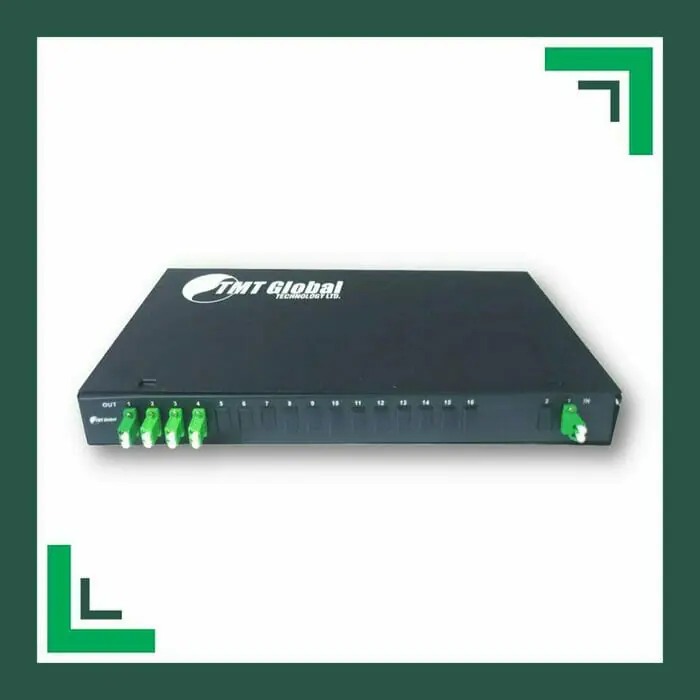

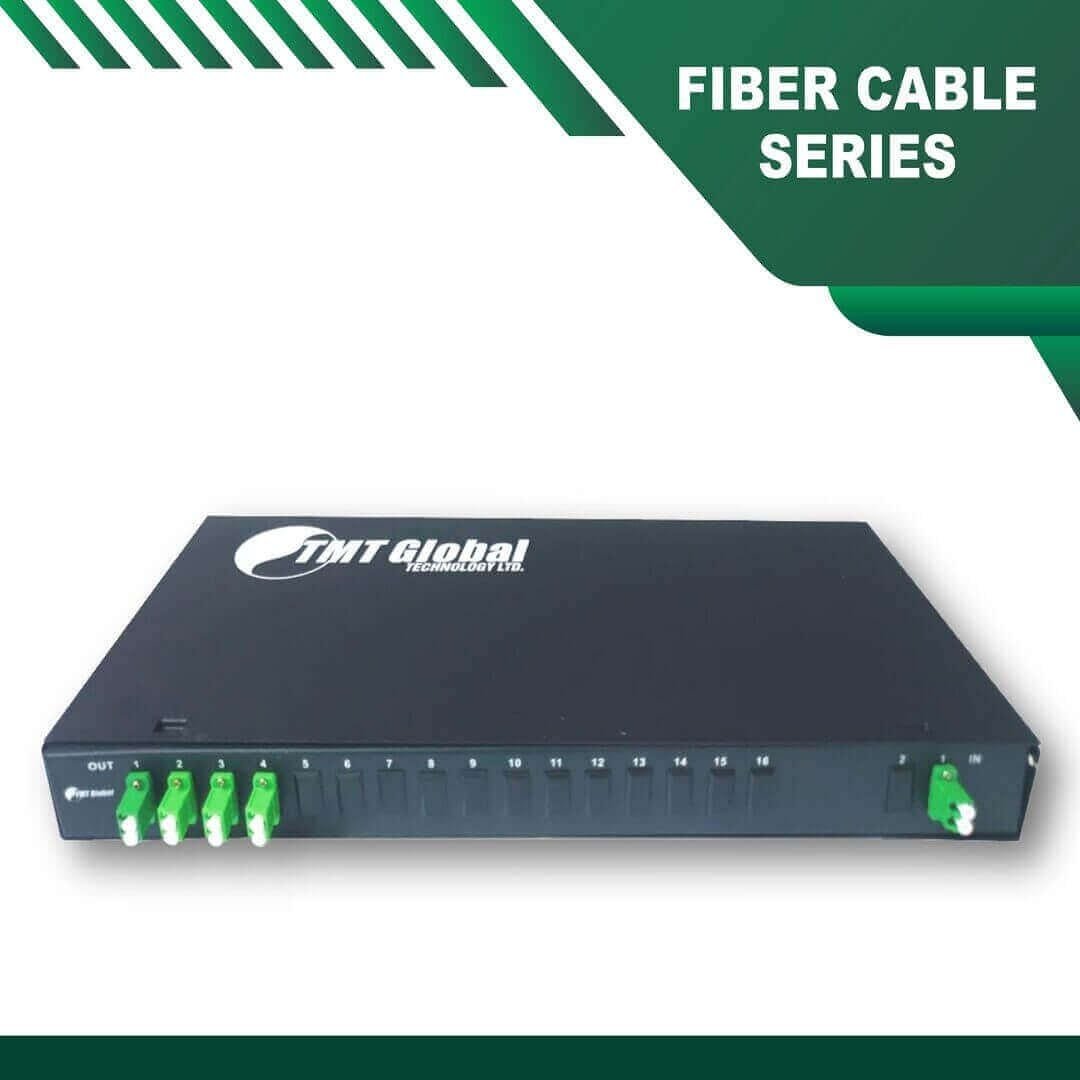

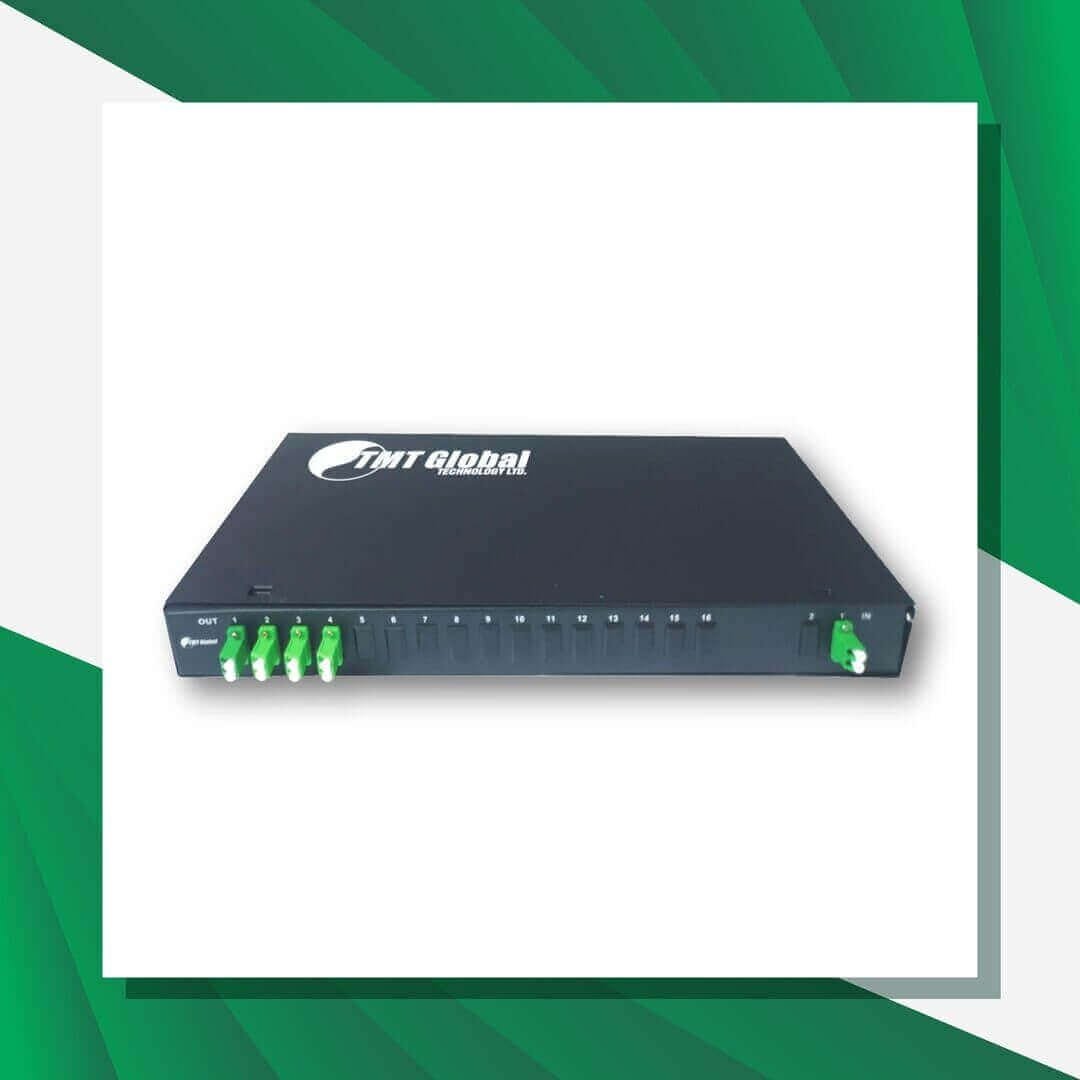

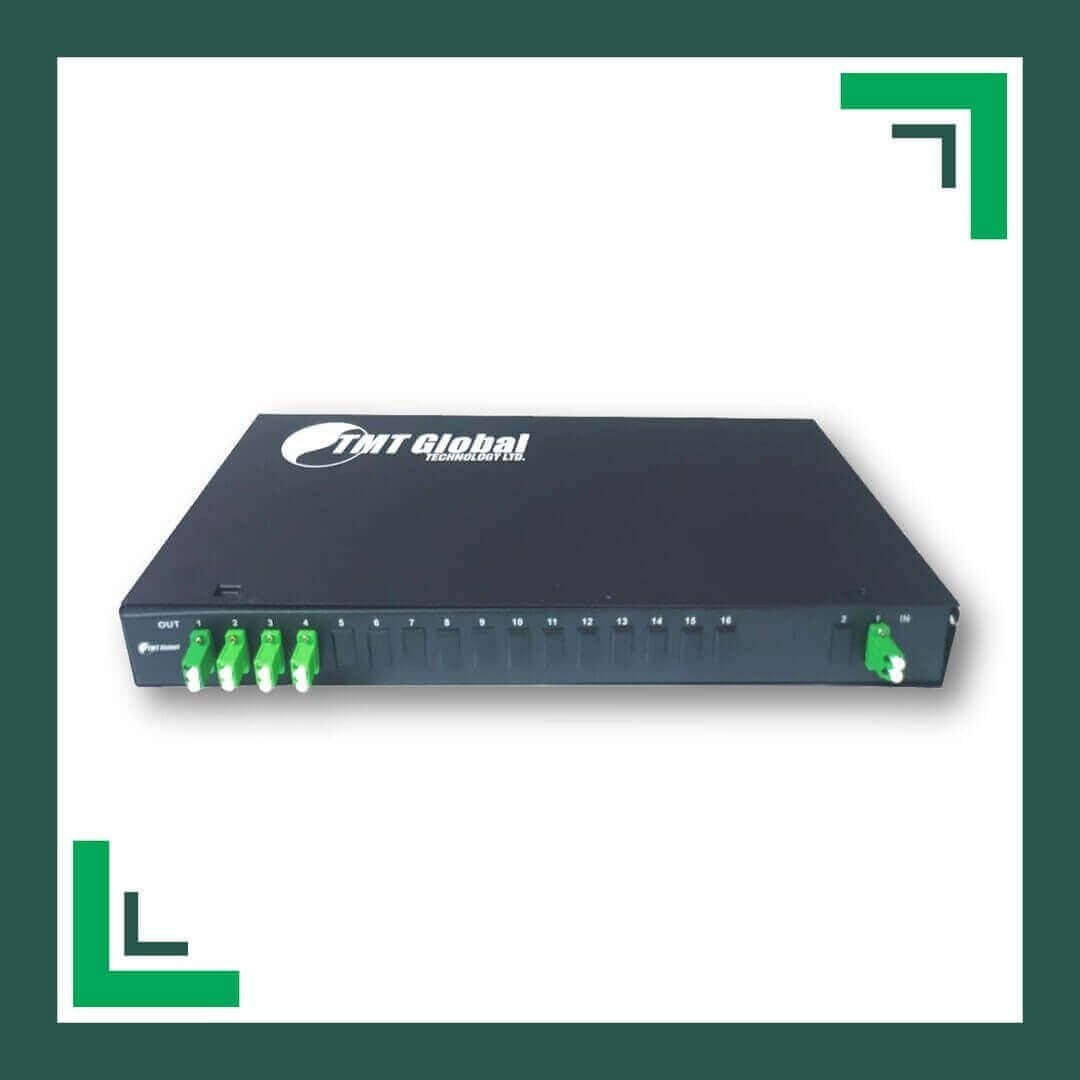

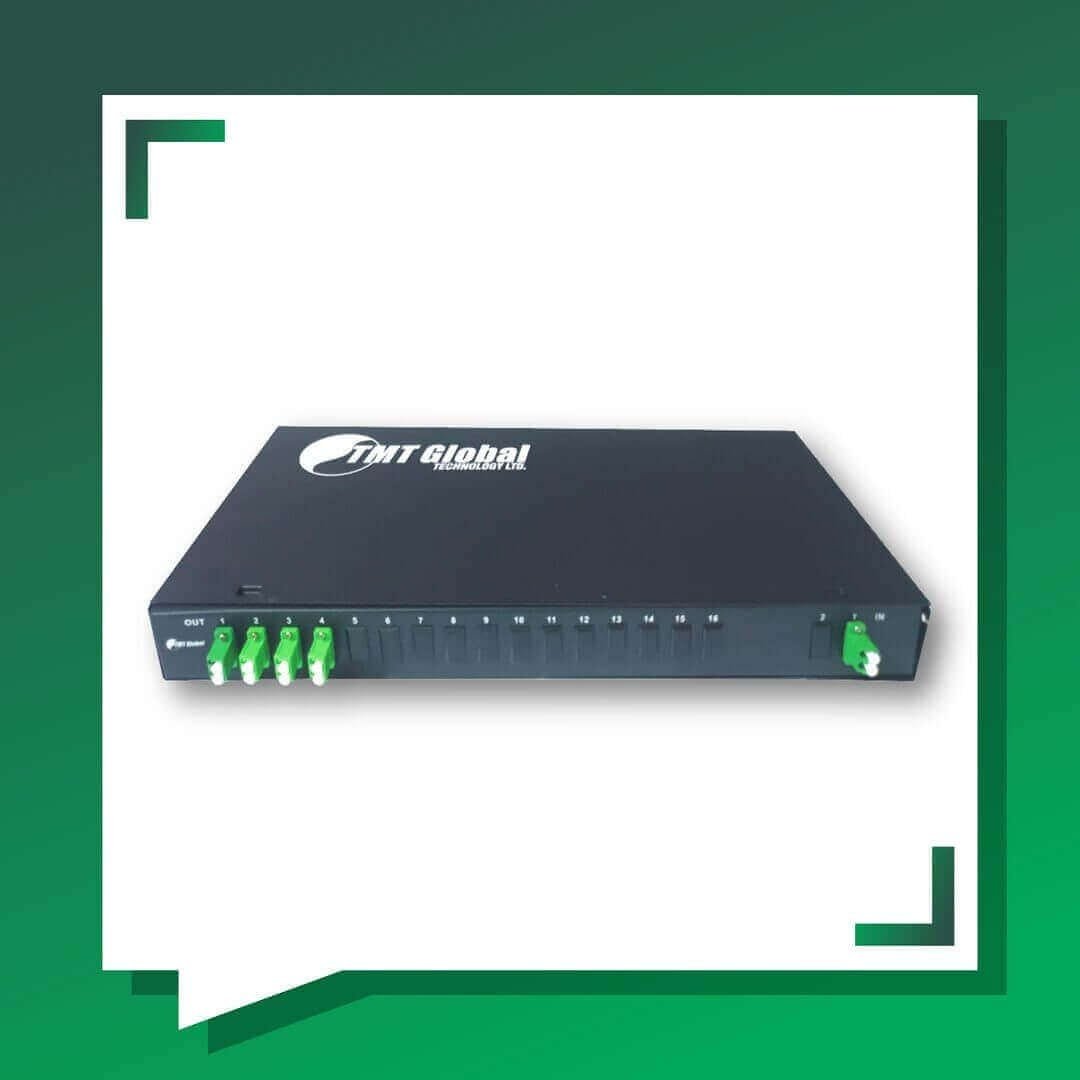

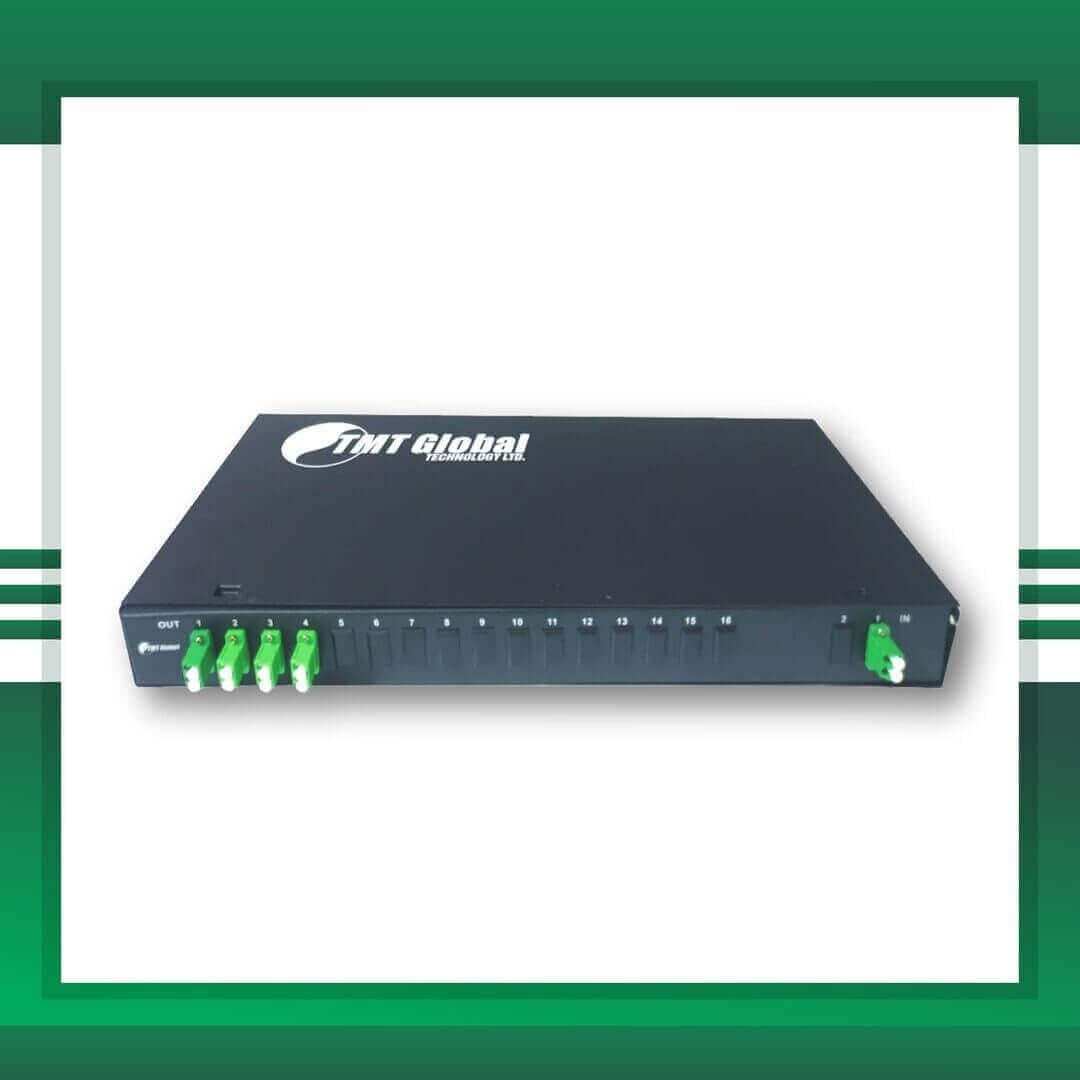

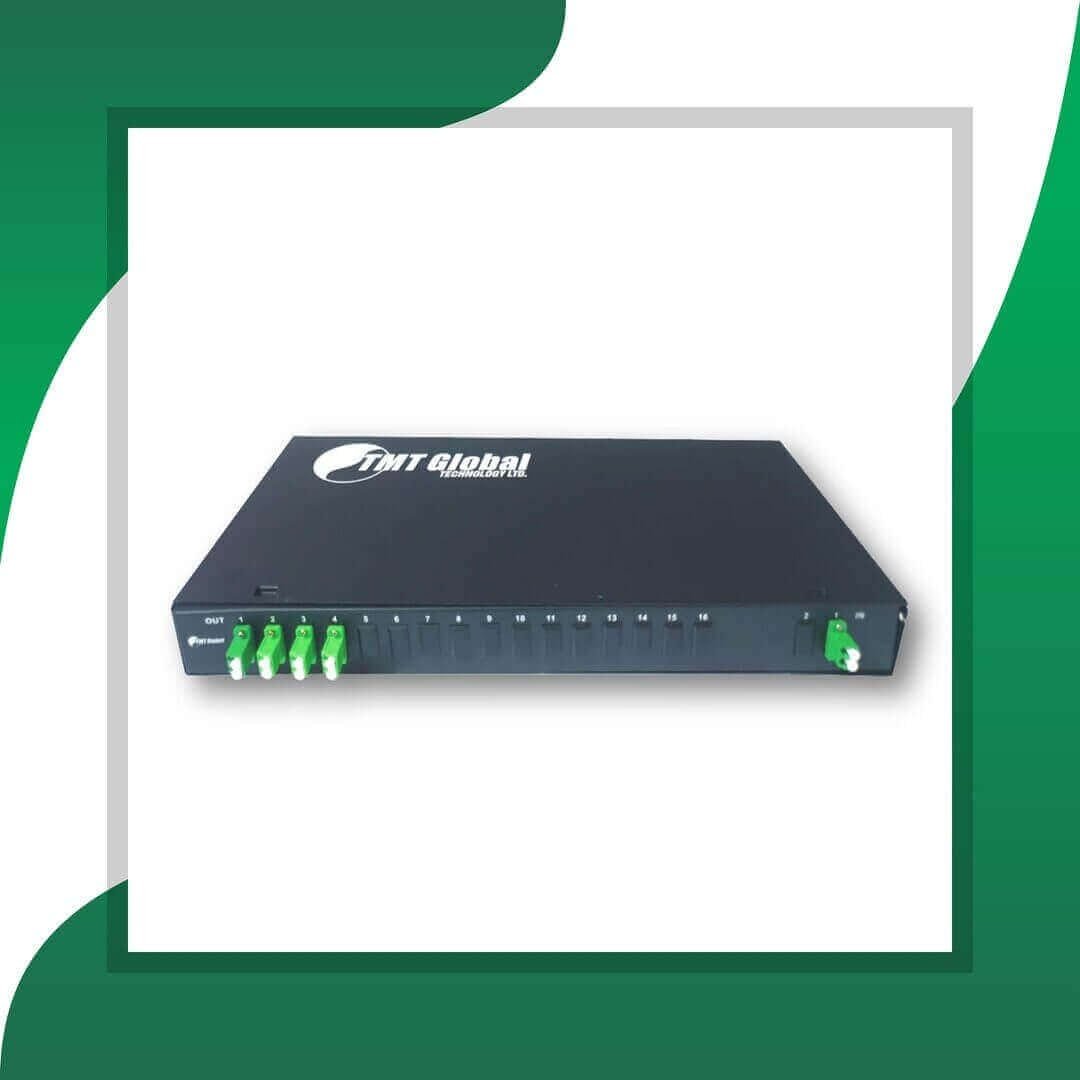

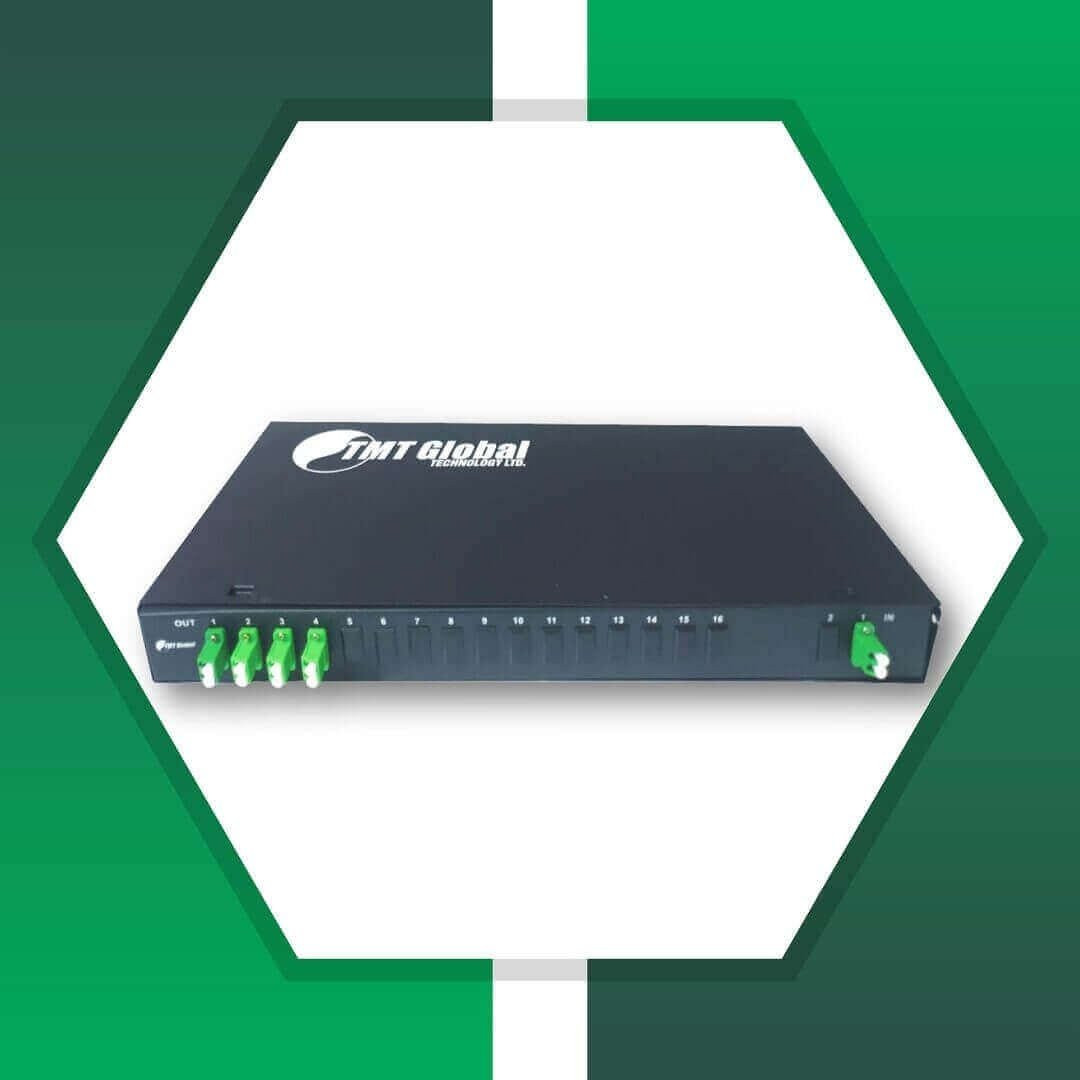

Fiber optic LC APC Splitter 2X8 Rack Mounted

Choosing the Fiber optic LC APC Splitter 2X8 Rack Mounted

A 2×8 PLC splitter divides each of two inputs into eight equal outputs, so one OLT port can feed up to 8 subscribers or floors in a PON/FTTH network. Typical insertion loss is about 10.8 dB per output, which you add to the link loss budget; higher split ratios mean more loss and shorter reach. Rack-mounted housing with pre-terminated connectors keeps the splitter tidy in the comms room or central office.

Related options in this range: 2×8 Dual 2xN PLC Splitter Variant · Fiber optic SC APC Splitter 2X8 Rack Mounted · Fiber optic LC APC Splitter 2X6 Rack Mounted · Fiber optic SC APC Splitter 2X6 Rack Mounted · 1×4 19-inch Rack-Mount PLC Splitter

Order code: TMT-Y081LDL. Send us the length, jacket and quantity for a project quotation and datasheet.

TMT Global Fiber Optic Splitter LC-APC Rack Mounted 2X8

TMT Global Technology LTD aims to provide the best quality products Fiber optic LC APC Splitter 2X8 Rack Mounted r Structured Cabling Systems Copper And Fiber Optics Range Access Control Systems Gate automation CCTV Systems Lighting Control Systems PIR Motion Sensors UHF Long Range Readers Burglar Alarm Systems Automatic Parking Solutions SMATV Systems Smart Home Automation Audio Video Intercom Systems Audio Visual Systems Public Address Systems Central Clock Systems. Industrial and Building automation Cables and Accessories which leads to satisfaction and reliability to customers.Fiber Optic Splitter LC-APC Rack Mounted 2X8

Features

Low Insertion loss
Low PDL
High Return Loss
Compact Design
Wide Operating Wavelength
Wide Operating Temperature
High Reliability and Stability
Uniform Power Splitting

Applications

Passive Optical Networks (PON)
Cable Television (CATV Links)
Local Area Networks (LAN)
Test Equipment’s
Optical Signal Distribution
FTTX Deployments (FTTP, FTTH, FTTN,
FTTC, FTTB)

OPTICAL PARAMETER’S

Operating Wavelength : nm 1260 ~ 1650
Insertion Loss : Typ:16.8dB/Max: 17.8dB
Channel Uniformity: Typ:2.0dB / Max: 2.5dB
PDL: Typ:0.2dB / Max: 0.4dB
Wavelength dependent loss: Typ:0.2dB / Max: 0.5dB
Temperature stability: Typ:0.4dB / Max: 0.5dB
Return Loss : Min. dB 50
Directivity : Min. dB 55
Operating Temperature : °C -40 ~ 85
Storage Temperature :°C 40 ~ 85
Fiber Length : 1.0+/0.1 or Customer specified
Fiber Type :  G.652D,G.657A1/A2
Connector Type :LC/APC
