fiber optic ODF
Micro ODF With LC-APC SC-APC Duplex Adapters 4core tmt
SKU:
TMT-004CPE2
General Specification
Material: ABS
Port type: SC/APC , LC/APC DUPLEX ADAPTERS
Color: White or Gray
Operating temperature: -25℃ to +50℃
Flammability: Non-flammable
IP Protection class: IP5x
Dimensions (LxW): 12*8 (cm)
Housing thickness: 1.5mm
Weight: 80grams
Products IDÂ : TMT-004CPE2

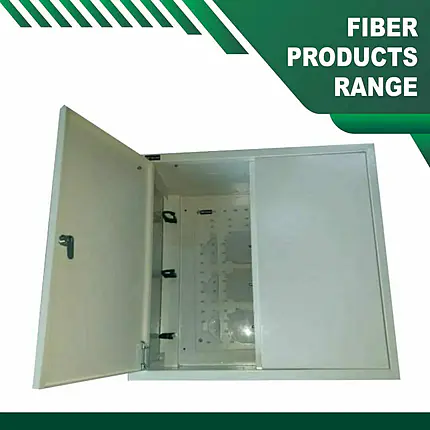

Optical distribution Frame ODF Wall Mounted 144core tmt
SKU:
TMT-144CMD1
General Specification
Material : Cold-Roll Steel
Coating : Electrostatic painting
Maximum Splice Tray : 12
Maximum splicing per Tray : 24
Splicing Capacity : 24-288 Core
Operating temperature : -25℃ to +80℃
Atmospheric pressure : 70~-106Kpa
Standard working wavelength : 850nm, 1310nm, 1550nm
Dimensions (L*h*W) : 600X600X300/150MM
Housing thickness : 1.5mm
Durability :Â Lifetime
Weight : 8KG
Products IDÂ : TMT-144CMD1
Optical distribution Frame ODF Wall Mounted 244core tmt
SKU:
TMT-288CMD1
General Specification
Material : Cold-Roll Stee
Coating : Electrostatic painting
Maximum Splice Tray : 12
Maximum splicing per Tray : 24
Splicing Capacity : 24-288 Core
Operating temperature : -25℃ to +80℃
Atmospheric pressure : 70~-106Kpa
Standard working wavelength : 850nm, 1310nm, 1550nm
Dimensions (L*h*W) : 600X600X300/150MM
Housing thickness : 1.5mm
Durability :Â Lifetime
Weight : 8KG
Products IDÂ : TMT-288CMD1
Optical distribution Frame ODF 24 core Wall Mounted TMT
SKU:
TMT-024CMD1
General Specification
Material : Cold-roll stee
Coating : electrostatic painting
Maximum Splice Tray : 12
Maximum splicing per Tray : 24
Splicing Capacity : 24-288 Core
Operating temperature : -25℃ to +80℃
Atmospheric pressure : 70~-106Kpa
Standard working wavelength : 850nm, 1310nm, 1550nm
Dimensions (L*h*W) : 600X600X300/150MM
Housing thickness : 1.5mm
Durability :Â Lifetime
Weight : 8KG
Products IDÂ : TMT-024CMD1
Optical distribution Frame ODF Wall Mounted 48core tmt
SKU:
TMT-048CMD1
General Specification
Material : Cold-Roll Steel
Coating : electrostatic painting
Maximum Splice Tray : 12
Maximum splicing per Tray : 24
Splicing Capacity : 24-288 Core
Operating temperature : -25℃ to +80℃
Atmospheric pressure : 70~-106Kpa
Standard working wavelength : 850nm, 1310nm, 1550nm
Dimensions (L*h*W) : 600X600X300/150MM
Housing thickness : 1.5mm
Durability :Â Lifetime
Weight : 8KG
Products IDÂ : TMT-048CMD1
Optical distribution Frame ODF Wall Mounted 72core TMT
SKU:
TMT-072CMD1
General Specification
Material : Cold-Roll Stee
Coating : electrostatic painting
Maximum Splice Tray : 12
Maximum splicing per Tray : 24
Splicing Capacity : 24-288 Core
Operating temperature : -25℃ to +80℃
Atmospheric pressure : 70~-106Kpa
Standard working wavelength : 850nm, 1310nm, 1550nm
Dimensions (L*h*W) : 600X600X300/150MM
Housing thickness : 1.5mm
Durability :Â Lifetime
Weight : 8KG
Products IDÂ : TMT-072CMD1
Optical distribution Frame ODF Wall Mounted 96core TMT
SKU:
TMT-096CMD1
General Specification
Material : Cold-Roll Stee
Coating : electrostatic painting
Maximum Splice Tray : 12
Maximum splicing per Tray : 24
Splicing Capacity : 24-288 Core
Operating temperature : -25℃ to +80℃
Atmospheric pressure : 70~-106Kpa
Standard working wavelength : 850nm, 1310nm, 1550nm
Dimensions (L*h*W) : 600X600X300/150MM
Housing thickness : 1.5mm
Durability :Â Lifetime
Weight : 8KG
Products IDÂ : TMT-096CMD1
