2×2 2xN PLC Splitter Variant

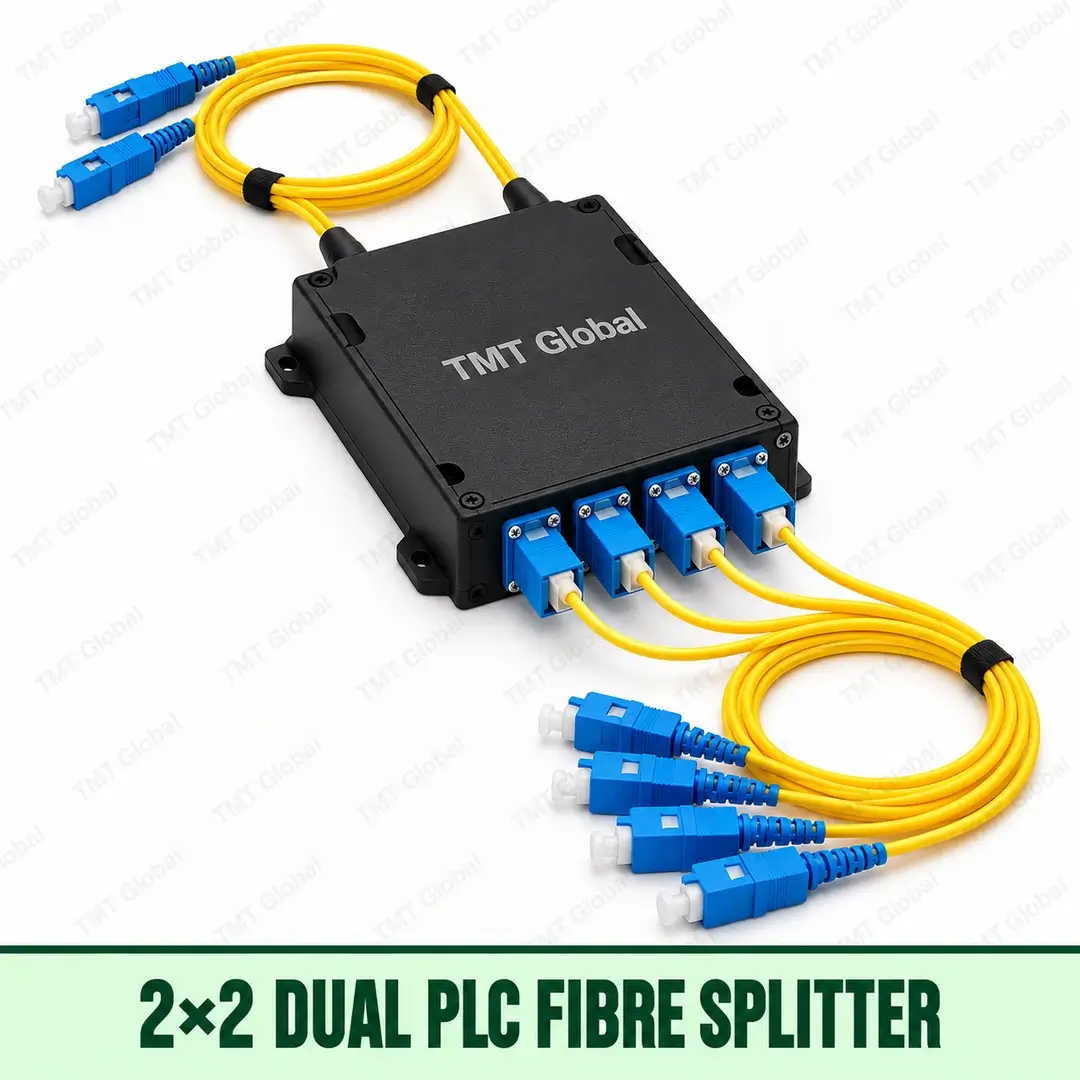

TMT Global 2×2 2xN PLC Splitter Variant Series

The TMT Global 2×2 2xN PLC Splitter Variant is a passive optical power-splitting component for FTTx, PON, telecom access, ODF, fibre distribution box and rack/cabinet applications. It provides 2 input and 2 output optical paths in a dual-input plc splitter construction, with controlled insertion loss, uniformity and return-loss performance for single-mode optical networks.

KEY FEATURES

• 2×2 PLC optical split ratio
• Dual-input PLC splitter construction
• 1260 to 1650 nm operating wavelength window
• Low insertion loss and controlled channel uniformity
• SC/APC, SC/UPC, LC or bare-fibre configuration options
• RoHS / REACH compliant material requirement

APPLICATIONS

• FTTH / FTTx PON distribution
• ODF and fibre distribution frames
• Fibre distribution boxes and closures
• Telecom access networks
• Enterprise and campus fibre networks

OEM / PUBLICATION POSITIONING

Website / OEM statement: This SKU is defined by the specification on this datasheet. Any supplied product must match the declared split ratio, package construction, optical performance, connector configuration and documentation requirements.

STANDARDS / TEST BASIS

• IEC 61300 series test methods for passive fibre components
• IEC 61753 performance framework where applicable
• IEC 61754 connector interface series where connectorised
• RoHS and REACH documentation required
• OEM must provide optical test report for every supplied batch

QUALITY / ACCEPTANCE

• OEM must provide optical test report for every supplied batch

TECHNICAL SPECIFICATION
