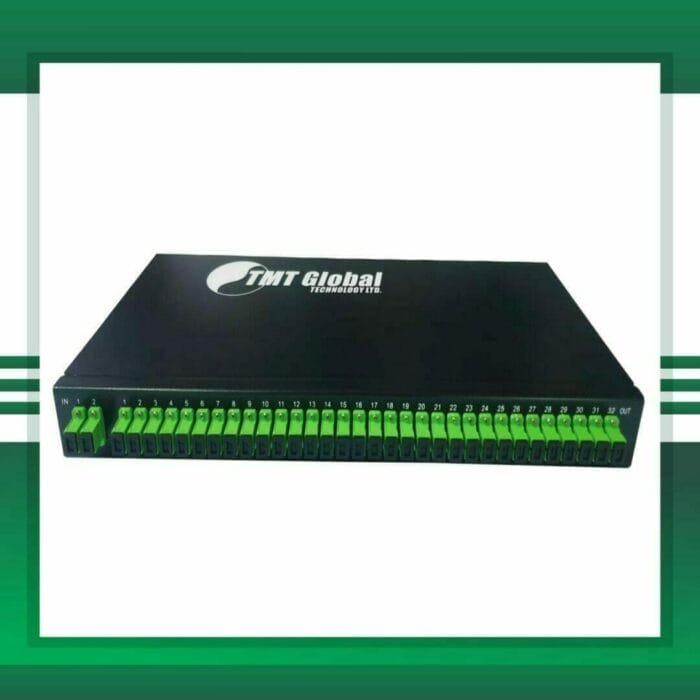

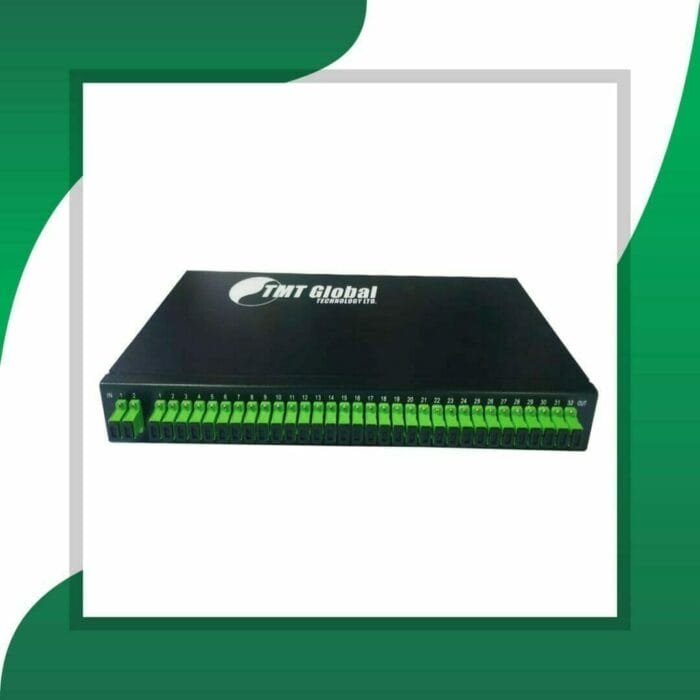

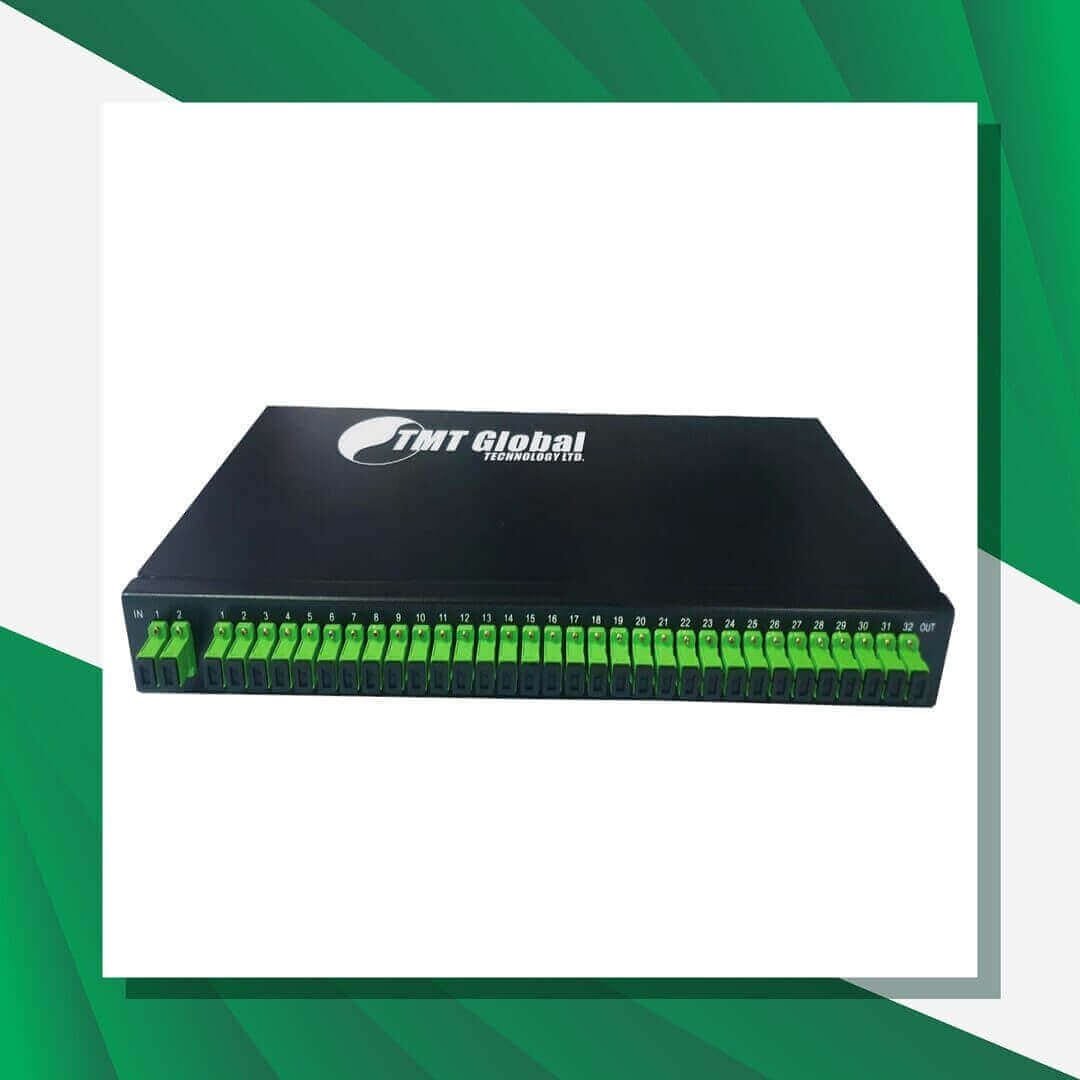

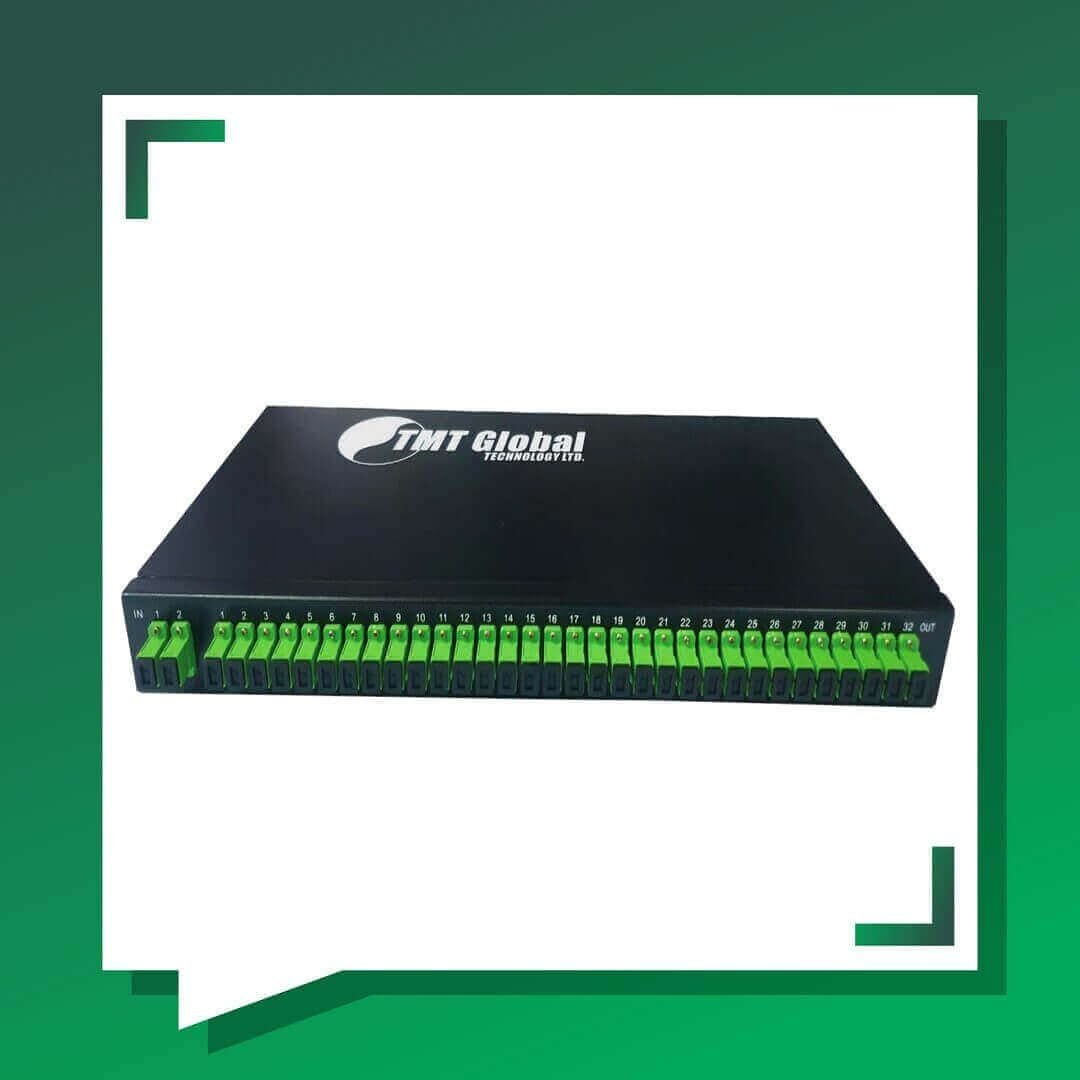

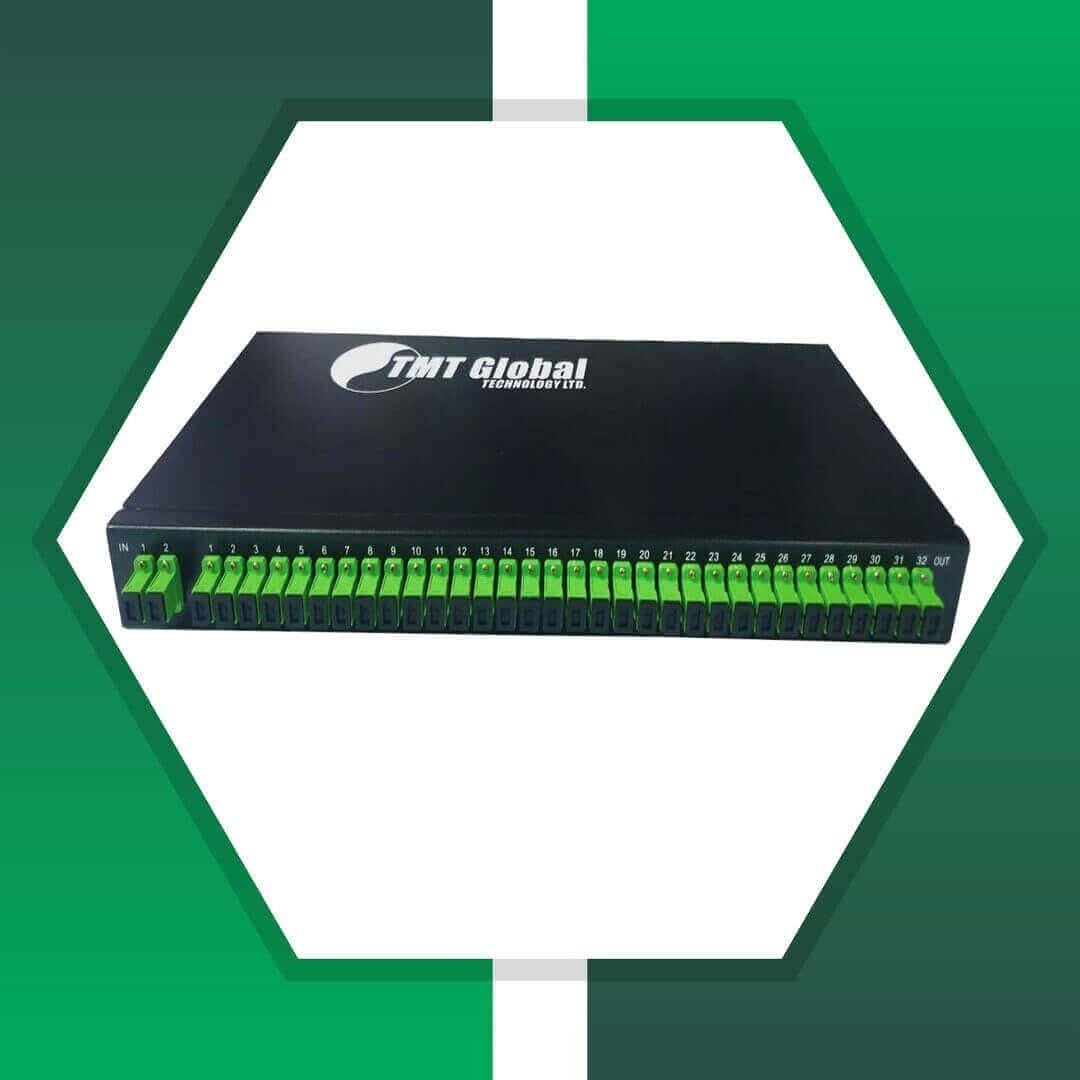

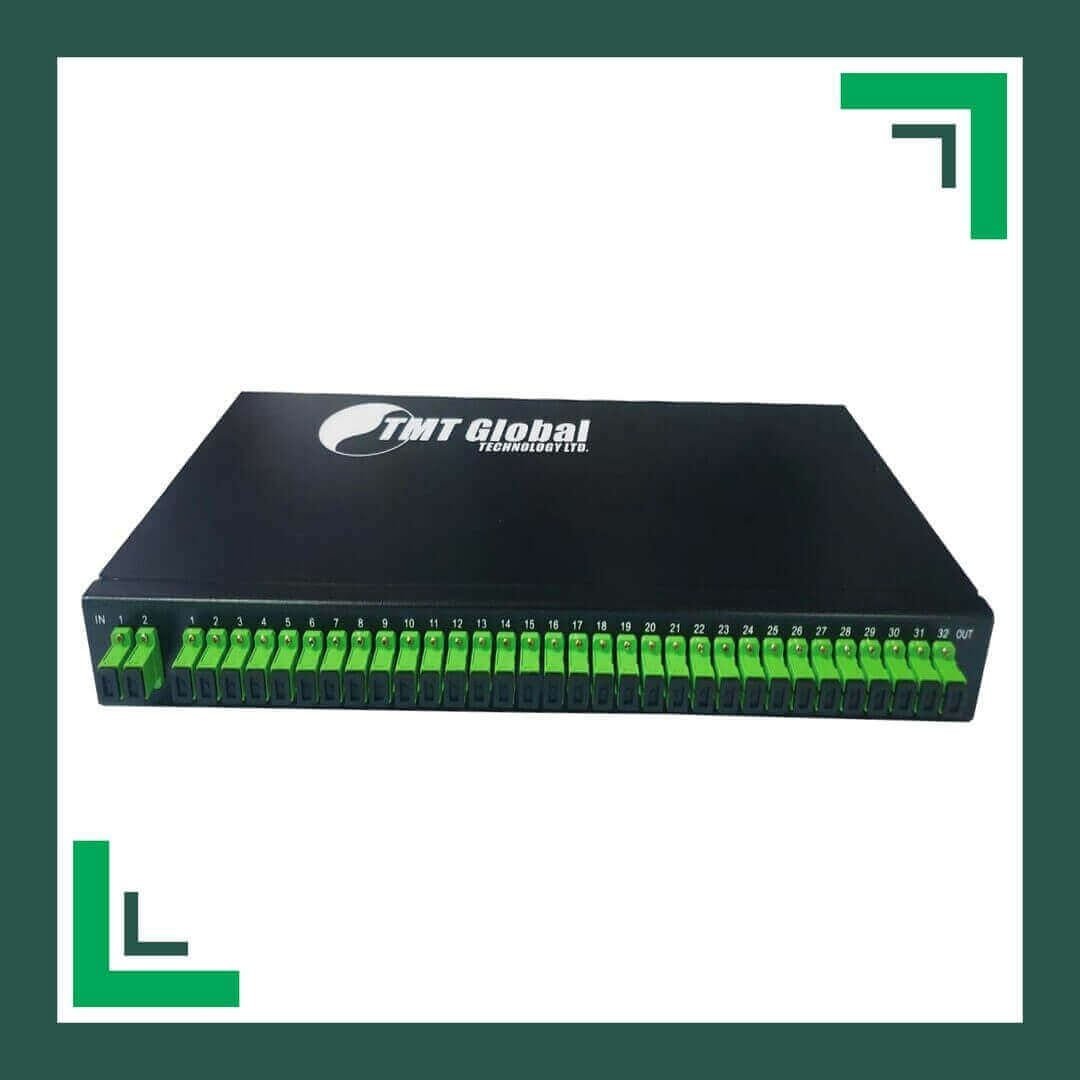

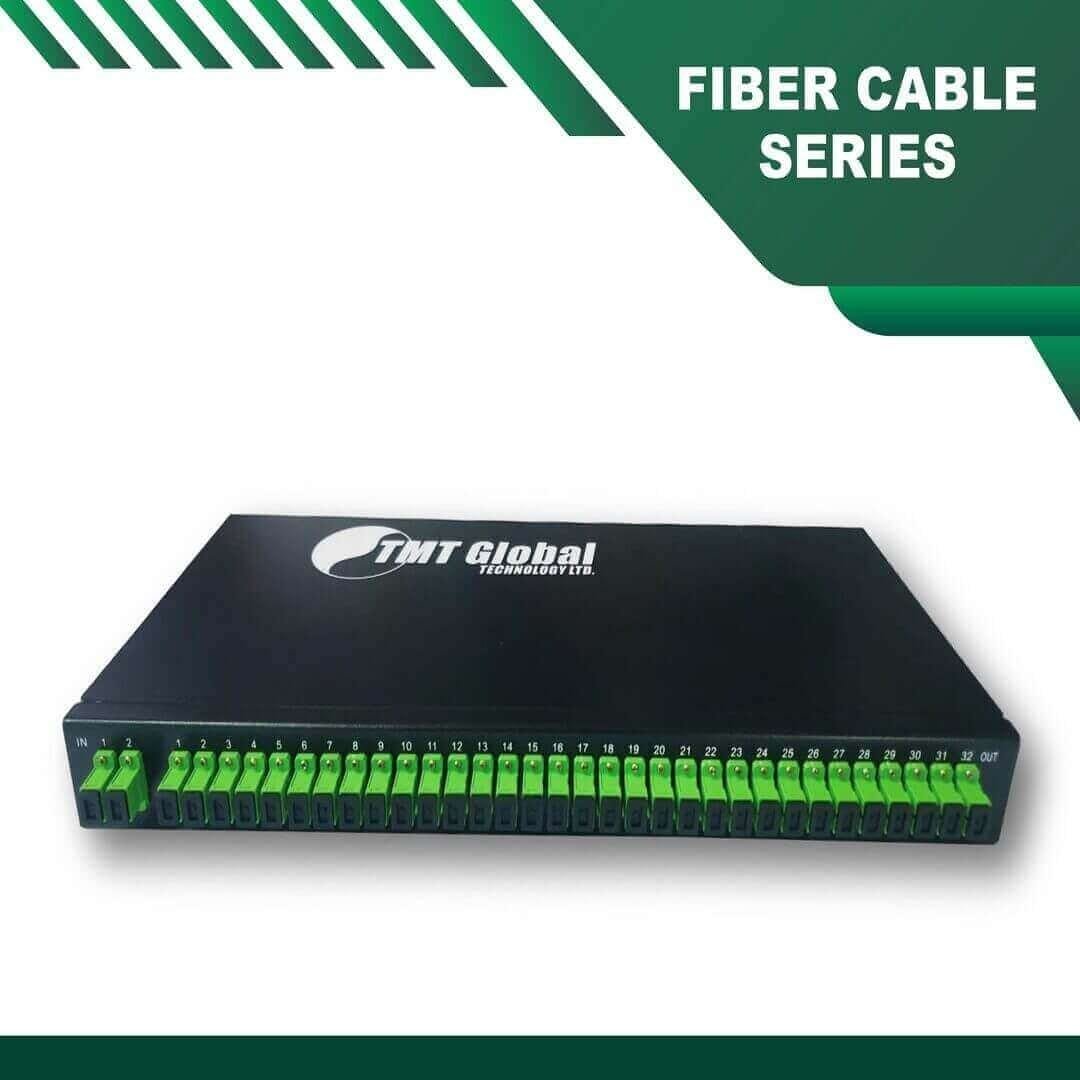

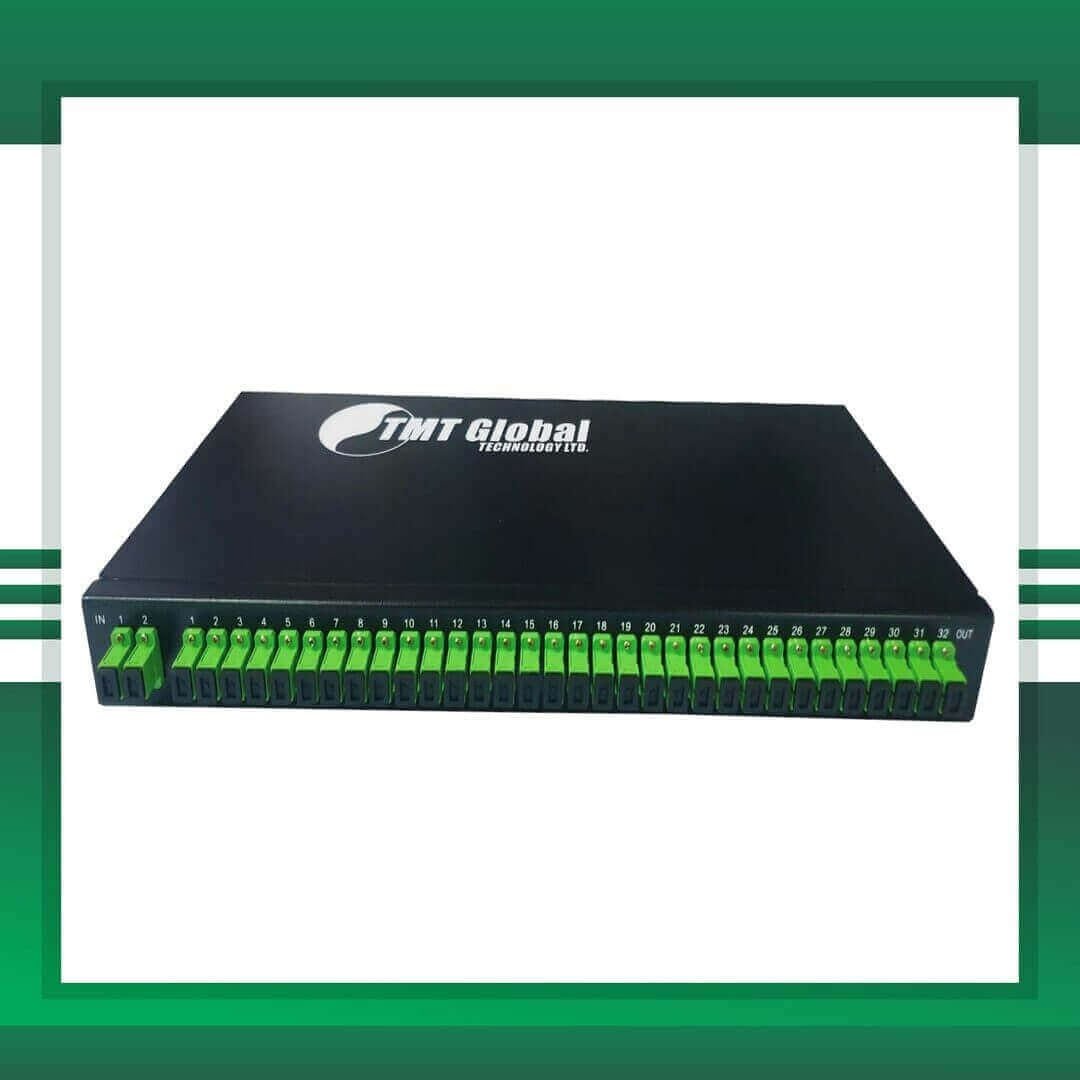

Fiber optic SC APC Splitter 2X32 Rack Mounted

Choosing the Fiber optic SC APC Splitter 2X32 Rack Mounted

A 2×32 PLC splitter divides each of two inputs into 32 equal outputs, so one OLT port can feed up to 32 subscribers or floors in a PON/FTTH network. Typical insertion loss is about 16.8 dB per output, which you add to the link loss budget; higher split ratios mean more loss and shorter reach. Rack-mounted housing with pre-terminated connectors keeps the splitter tidy in the comms room or central office.

Related options in this range: Fiber optic LC APC Splitter 2X32 Rack Mounted · Fiber LC APC Splitter 2X16 Rack Mounted · Fiber optic SC APC Splitter 2X16 Rack Mounted · Fiber LC APC Splitter 2X12 Rack Mounted · Fiber Splitter 2X12 SC APC Rack Mounted

Order code: TMT-Y321SSL. Send us the length, jacket and quantity for a project quotation and datasheet.

TMT Global Fiber Splitter SC-APC Rack Mounted 2X32

TMT Global Technology LTD aims to provide the best quality products Fiber optic SC APC Splitter 2X32 Rack Mounted r Structured Cabling Systems Copper And Fiber Optics Range Access Control Systems Gate automation CCTV Systems Lighting Control Systems PIR Motion Sensors UHF Long Range Readers Burglar Alarm Systems Automatic Parking Solutions SMATV Systems Smart Home Automation Audio Video Intercom Systems Audio Visual Systems Public Address Systems Central Clock Systems.

Industrial and Building automation Cables and Accessories which leads to satisfaction and reliability to customers. All TMT Global Products meet or Exceed Rigorous Industry and Regulatory Standards for Quality Reliability and efficiency. From Design and Fabrication to Finished Product Assembly each phase in the Manufacturing process is rigorously monitored and measured to ensure the highest quality durability and operating excellence.Fiber Splitter SC-APC Rack Mounted 2X32

Features

Low Insertion loss
Low PDL
High Return Loss
Compact Design
Wide Operating Wavelength
Wide Operating Temperature
High Reliability and Stability
Uniform Power Splitting

Applications

Passive Optical Networks (PON)
Cable Television (CATV Links)
Local Area Networks (LAN)
Test Equipment’s
Optical Signal Distribution
FTTX Deployments (FTTP, FTTH, FTTN,
FTTC, FTTB)

OPTICAL PARAMETERS

Operating Wavelength : nm 1260 ~ 1650
Insertion Loss : Typ:16.8dB/Max: 17.8dB
Channel Uniformity: Typ:2.0dB / Max: 2.5dB
PDL: Typ:0.2dB / Max: 0.4dB
Wavelength dependent loss: Typ:0.2dB / Max: 0.5dB
Temperature stability: Typ:0.4dB / Max: 0.5dB
Return Loss : Min. dB 50
Directivity : Min. dB 55
Operating Temperature : °C -40 ~ 85
Storage Temperature :°C 40 ~ 85
Fiber Length : 1.0+/0.1 or Customer specified
Fiber Type :  G.652D,G.657A1/A2
Connector Type :LC/APC
