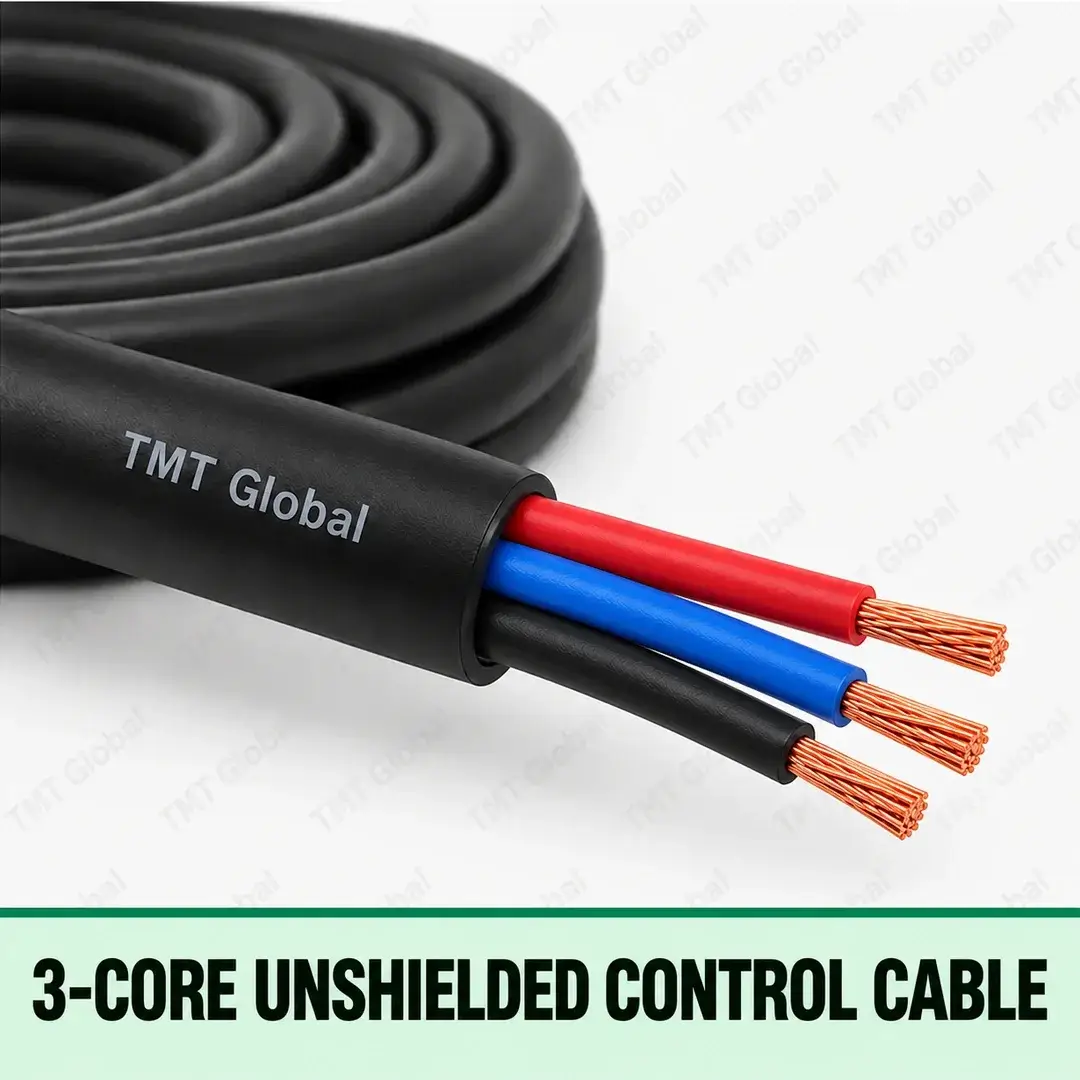

TMT Global 3-Core Unshielded Control Cable, black jacket without foil or braid, exactly three insulated copper conductors in red, blue and black, three visible tips.

3 Core Unshielded Control Cable

KEY FEATURES

  • 3-core controlled construction
  • No metallic screen
  • 12, 14, 16, 18, 20, 22, 23 and 24 AWG Series options
  • PVC, LSZH and outdoor PE jacket choices
  • Bare-copper conductor; solid or stranded by released drawing
  • Exact searchable ordering code for every standard combination
Chat with Sales
AWG12 awg, 14 awg, 16 awg, 18 awg, 20 awg, 22 awg, 23 awg, 24 awg
BrandTMT Global
ColourBlack, Grey
Jacket TypePVC, LSZH, PE Outdoor
Length305 m
View / Print DatasheetContact Sales
Description

Choosing the 3 Core Unshielded Control Cable

Three cores suit one device: a lock, exit button, door contact or a powered sensor. No metallic screen keeps it light, flexible and quick to terminate; choose it for clean electrical environments where the route stays away from mains power and motor drives.

Related options in this range: 2-Wire Twisted Unshielded Door-Entry Bus Cable · 2 Core Unshielded Control Cable · 3 Core Foil Shielded Control Cable

Order code: 03U-BA. Send us the length, jacket and quantity for a project quotation and datasheet.

TMT 3 Core Unshielded Control Cable Series

TMT Global 3 Core Unshielded Control Cable is a configurable multicore control-cable family for machinery, control panels, building services and low-voltage automation interconnection. The product page fixes the 3-core unshielded construction, while the TMT Series ordering table provides exact AWG and jacket-specific item codes for customer search, quotation and project selection.

KEY FEATURES

  • 3-core controlled construction
  • No metallic screen
  • 12, 14, 16, 18, 20, 22, 23 and 24 AWG Series options
  • PVC, LSZH and outdoor PE jacket choices
  • Bare-copper conductor; solid or stranded by released drawing
  • Exact searchable ordering code for every standard combination

TYPICAL APPLICATIONS

  • Machine and equipment control circuits
  • Control panels, switchboards and plant rooms
  • Relays, contactors, actuators and interlock circuits
  • Building automation and process-control interconnection
  • Industrial facilities, commercial buildings and infrastructure

Technical Specification

PARAMETER SPECIFICATION
Product type Multicore control cable
Core configuration 3 insulated cores
Conductor material Bare copper
Conductor construction Solid or stranded
Available conductor sizes 12 / 14 / 16 / 18 / 20 / 22 / 23 / 24 AWG
Core insulation PVC or halogen-free compound
Screening No metallic screen
Outer-jacket options PVC / LSZH / PE Outdoor
Cable form Round
Standard colours Grey for PVC/LSZH; black for PE Outdoor
Series 03U-BA SERIES
Ordering combinations 8 conductor sizes × 3 jacket options
Standard searchable SKUs 24 per family
Package length 305 m standard TMT package

AWG / NOMINAL AREA / SERIES AVAILABILITY

AWG NOMINAL AREA SERIES AVAILABILITY
12 AWG 3.31 mm² PVC / LSZH / PE Outdoor • 305 m • Standard / project
14 AWG 2.08 mm² PVC / LSZH / PE Outdoor • 305 m • Standard / project
16 AWG 1.31 mm² PVC / LSZH / PE Outdoor • 305 m • Standard range
18 AWG 0.823 mm² PVC / LSZH / PE Outdoor • 305 m • Standard range
20 AWG 0.519 mm² PVC / LSZH / PE Outdoor • 305 m • Standard range
22 AWG 0.326 mm² PVC / LSZH / PE Outdoor • 305 m • Standard range
23 AWG 0.258 mm² PVC / LSZH / PE Outdoor • 305 m • Made to order
24 AWG 0.205 mm² PVC / LSZH / PE Outdoor • 305 m • Standard range
Download

visit: www.tmtglobal.co.uk

UL
BASEC
Intertek
IEC
ISO
SIRA
rohs
etisalat
DU
tmt global
tmt global
COO
Ordering Information
Item NameItem Code / SKUSeriesAWG / mm²JacketColourPackQR Code
3 Core Unshielded Control Cable03U-BA12 awgPVCGrey305 m QR code for 0312BPURG-BA
3 Core Unshielded Control Cable03U-BA12 awgLSZHGrey305 m QR code for 0312BLURG-BA
3 Core Unshielded Control Cable03U-BA12 awgPE OutdoorBlack305 m QR code for 0312BKURK-BA
3 Core Unshielded Control Cable03U-BA14 awgPVCGrey305 m QR code for 0314BPURG-BA
3 Core Unshielded Control Cable03U-BA14 awgLSZHGrey305 m QR code for 0314BLURG-BA
3 Core Unshielded Control Cable03U-BA14 awgPE OutdoorBlack305 m QR code for 0314BKURK-BA
3 Core Unshielded Control Cable03U-BA16 awgPVCGrey305 m QR code for 0316BPURG-BA
3 Core Unshielded Control Cable03U-BA16 awgLSZHGrey305 m QR code for 0316BLURG-BA
3 Core Unshielded Control Cable03U-BA16 awgPE OutdoorBlack305 m QR code for 0316BKURK-BA
3 Core Unshielded Control Cable03U-BA18 awgPVCGrey305 m QR code for 0318BPURG-BA
3 Core Unshielded Control Cable03U-BA18 awgLSZHGrey305 m QR code for 0318BLURG-BA
3 Core Unshielded Control Cable03U-BA18 awgPE OutdoorBlack305 m QR code for 0318BKURK-BA
3 Core Unshielded Control Cable03U-BA20 awgPVCGrey305 m QR code for 0320BPURG-BA
3 Core Unshielded Control Cable03U-BA20 awgLSZHGrey305 m QR code for 0320BLURG-BA
3 Core Unshielded Control Cable03U-BA20 awgPE OutdoorBlack305 m QR code for 0320BKURK-BA
3 Core Unshielded Control Cable03U-BA22 awgPVCGrey305 m QR code for 0322BPURG-BA
3 Core Unshielded Control Cable03U-BA22 awgLSZHGrey305 m QR code for 0322BLURG-BA
3 Core Unshielded Control Cable03U-BA22 awgPE OutdoorBlack305 m QR code for 0322BKURK-BA
3 Core Unshielded Control Cable03U-BA23 awgPVCGrey305 m QR code for 0323BPURG-BA
3 Core Unshielded Control Cable03U-BA23 awgLSZHGrey305 m QR code for 0323BLURG-BA
3 Core Unshielded Control Cable03U-BA23 awgPE OutdoorBlack305 m QR code for 0323BKURK-BA
3 Core Unshielded Control Cable03U-BA24 awgPVCGrey305 m QR code for 0324BPURG-BA
3 Core Unshielded Control Cable03U-BA24 awgLSZHGrey305 m QR code for 0324BLURG-BA
3 Core Unshielded Control Cable03U-BA24 awgPE OutdoorBlack305 m QR code for 0324BKURK-BA
