Card Reader Waterproof Mifare

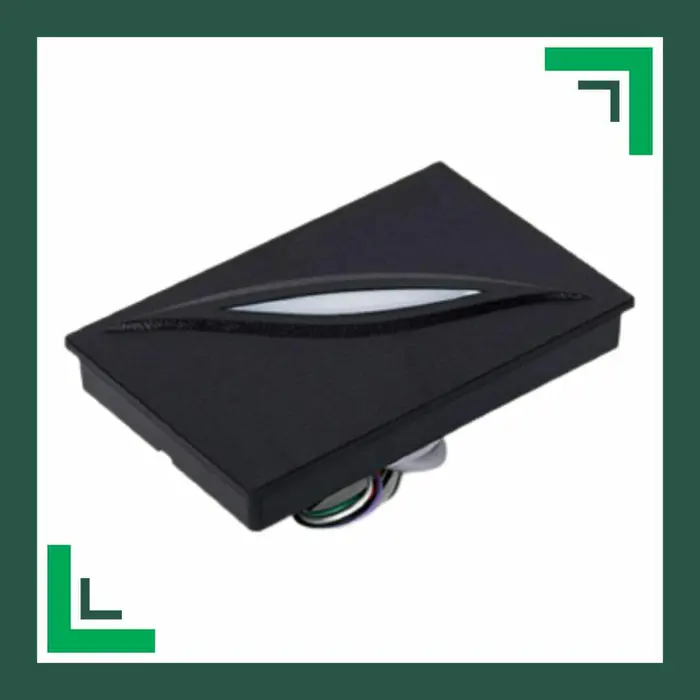

TMT Global Card Reader Waterproof Mifare

TMT Global Card Reader Waterproof Mifare single door multifunction standalone access controller or a Wiegand output keypad or card reader. It is suitable for mounting either indoor or outdoor in harsh environments. It is housed in a strong, sturdy and vandal proof Zinc Alloy electroplated case

Features

• 125KHz Proximity card reader with WG26 output
• Read Range: Up to 10CM(125KHz)/5CM(13.56MHz)
• 26/34bit Wiegand (default)
• Easy to install on Metal Door Frame or Mullion
• External LED Control
• External Buzzer Control
• Indoor / Outdoor Operation
• Waterproof IP65
• Reverse Polarity Protection
• Read Range: EM: Up to 10CM, MF:Up to 5CM

Reading Time (Card): ≤300ms
Power / Current: DC 6-14V / Max.70mA
Input Port: 2ea (External LED Control, External Buzzer Control)
Output Format: 26bit/34bit Wiegand (default)
LED Indicator: 2 Color LED Indicators(Red and Green)
Beeper: Yes
Material: ABS+PC with texture
Operating Temperature: -20° to +65°C
Operating Humidity: 10% to 90% relative humidity non-condensing
Color: Black
Dimension(W x H x T)mm: 115 x 75 x 18mm
Index of Protection: IP65
