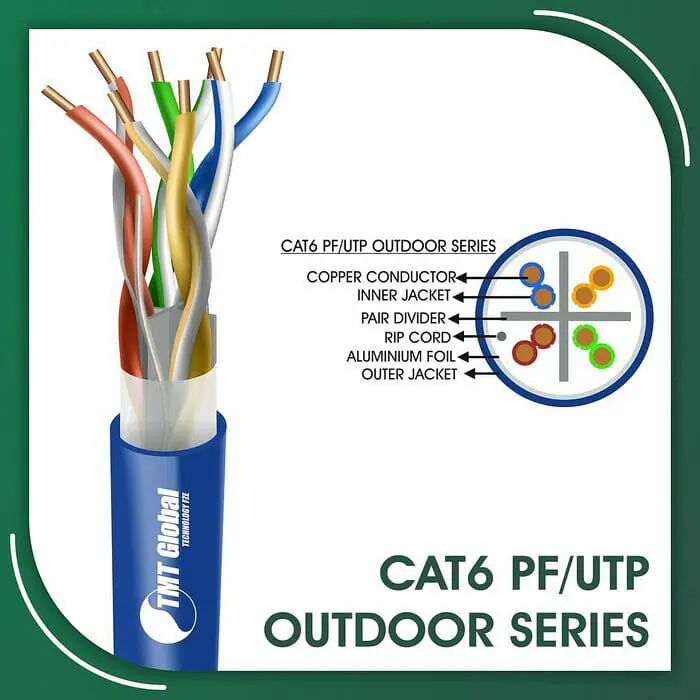

cat6 colour code & cat6 23awg u-utp Outdoor 305m
د.إ 290,00
General Specification:
Conductor: BARE Copper
Conductor Size: 23AWG
No. Of Pairs: 4 twisted pairs
Overall Coverage: N/L
Outer Jacket: PE
Jacket Color: Black /Grey/Blue/Orange/ Green/White/Aqua/ Yellows/Violet/Red
Packing: 305m / Box
Item Code: 6X132BOB
| color | Aqua, Black, Blue, Gray, Green, Orange, Red, Violet, white, Yellow |
|---|---|
| Brand | TMT GLOBAL |
TMT GLOBAL oman cat6 Network Cable 23awg twisted Outdoor
TMT Global cat6 Network Cable 23awg twisted Outdoor are manufactured tested and complied with ANSI/TIA/568.2-D CENELEC EN 50288-5IEC 61156-5 (ISO/IEC-11801 Class -Ea). Cat6a Series is Designed to ensure the highest levels of performance, reliability, and longevity, and are ideal for large enterprise and small business.cat6 colour code & cat6 23awg u-utp Outdoor 305m
PHYSICAL AND MECHANICAL PROPERTIES
Basic Conductor: 23AWG Bare Copper
Insulation:Â HDPE
Number of insulated conductors:Â 8 twisted in 4 pairs
Color Code of Pairs:Â Blue x White/Blue, Orange x White/Orange, Green x White/Green, Brown x White/Brown
Outer Jacket: PE
Standard Jacket Color: Black /Grey/Blue/Orange/ Green/White/Aqua/ Yellows/Violet/Red
Standard Surface Marking:Â Includes TMT Global P/N, cable description, Meter mark and Model Number
Pulling force: 100 N MAX.
Short Term Bend Radius: 6xOD (Mm)
Storage Temperature: -20 To +80C
Temperature operating range:Â -20 to +60C
Installation temperature range:Â 0 to +50C
Flame Test:Â IEC 60332-1
ELECTRICAL SPECIFICATIONS
Characteristic Impedance: 100―6 Ohm @ 1-100 MHz
DC Resistance:Â 93 Ohm/Km max.
Resistance unbalance:Â 2% max.
Mutual Capacitance:Â 5.6 nF/100m Max. @ 1 KHz
Cap. Unbalance (wire to ground):Â 1500 pF/Km max. @ 1 KHz.
Voltage rating:Â 72 Vdc max.
Dielectric strength:Â 1500 Volts/1 minute min rms
Velocity of Propagation (NVP):Â 67-69%
Insulation Resistance: 5000 MOhm•m min. @ 500 Vdc
Coupling attenuation: IEC 61156-5 TYPE III
