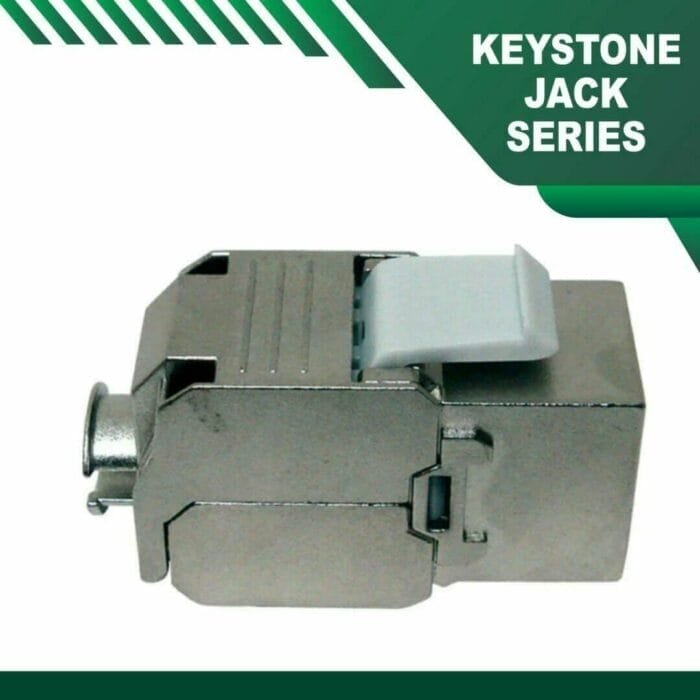

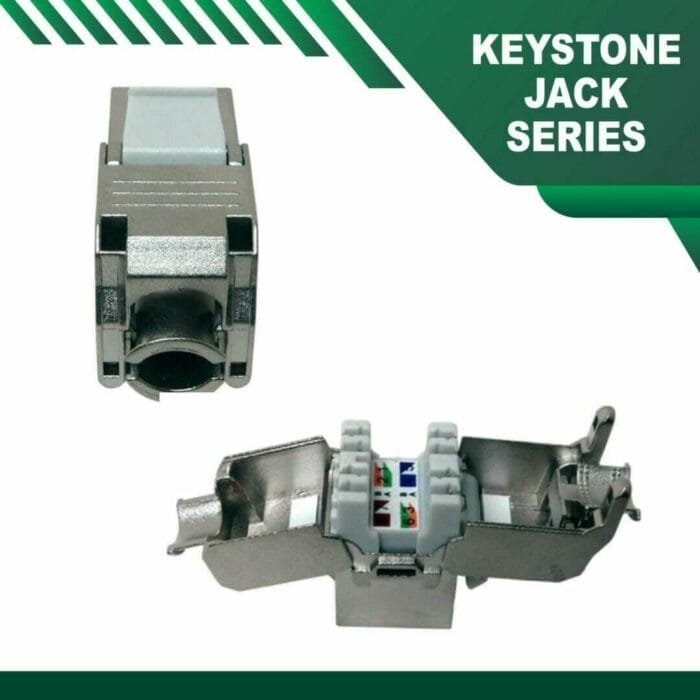

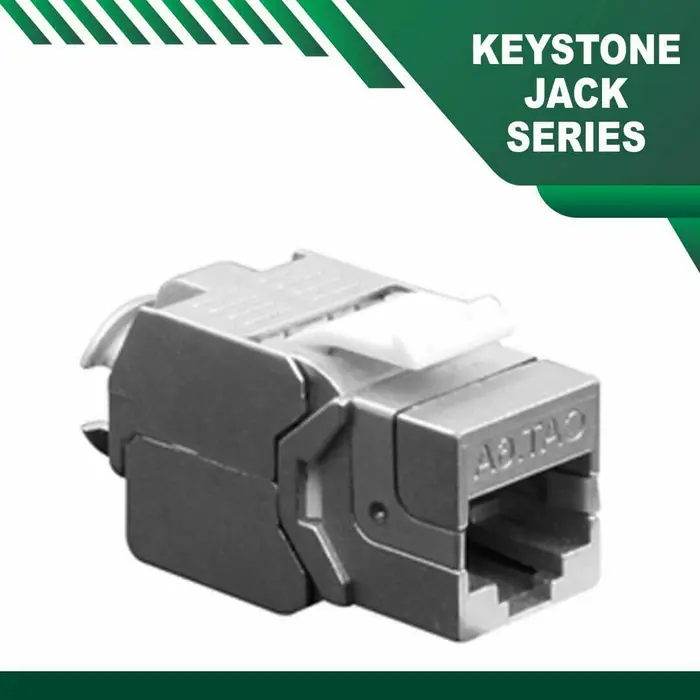

TMT Global cat6a keystone jack STP Tools Less
TMT Global Technology LTD aims to provide the best quality products r Structured Cabling Systems Copper And Fiber Optics Range Access Control Systems Gate Automation Lighting Control Systems Pir Motion Sensors UHF Long Range Readers Automatic Parking Solutions SMATV Systems Audio Video Intercom Systems Audio Visual Systems Public Address Systems. Industrial and Building Automation Cables and Accessories which leads to Satisfaction and reliability to customers. cat6a keystone jack STP Tools Less
Features
RJ45 8P 8C 180˚C 50u Punch Down Jack
Terminating 4 pairs, 22-26 AWG Cable
Universal labels color coded for T568A and T568B wiring schemes
Fitting high density keystone panel
UL, ETL, RoHS certified
IDC contacts that allows re-termination without damaging the unit
Specifications
- Material: UL-94V0 PC
- Insulation resistance: 500M.Ω
- Contact resistance: 20M.Ω
- Current rating: 1.5A
- DC resistance: Max 0.1Ω
- Data trans rate: UP to 500Mbps
- Eelectric Withstand Voltage: 1,000VAC RMS@60Hz (1 Minute)
- Plug insertion life: 1000 times(min.)
- IDC insertion life: 250 times(min.)
- IDC: 22-26AWG
- Gold plating: 3 μ”
- Plug insertion force: 17kg(min)
