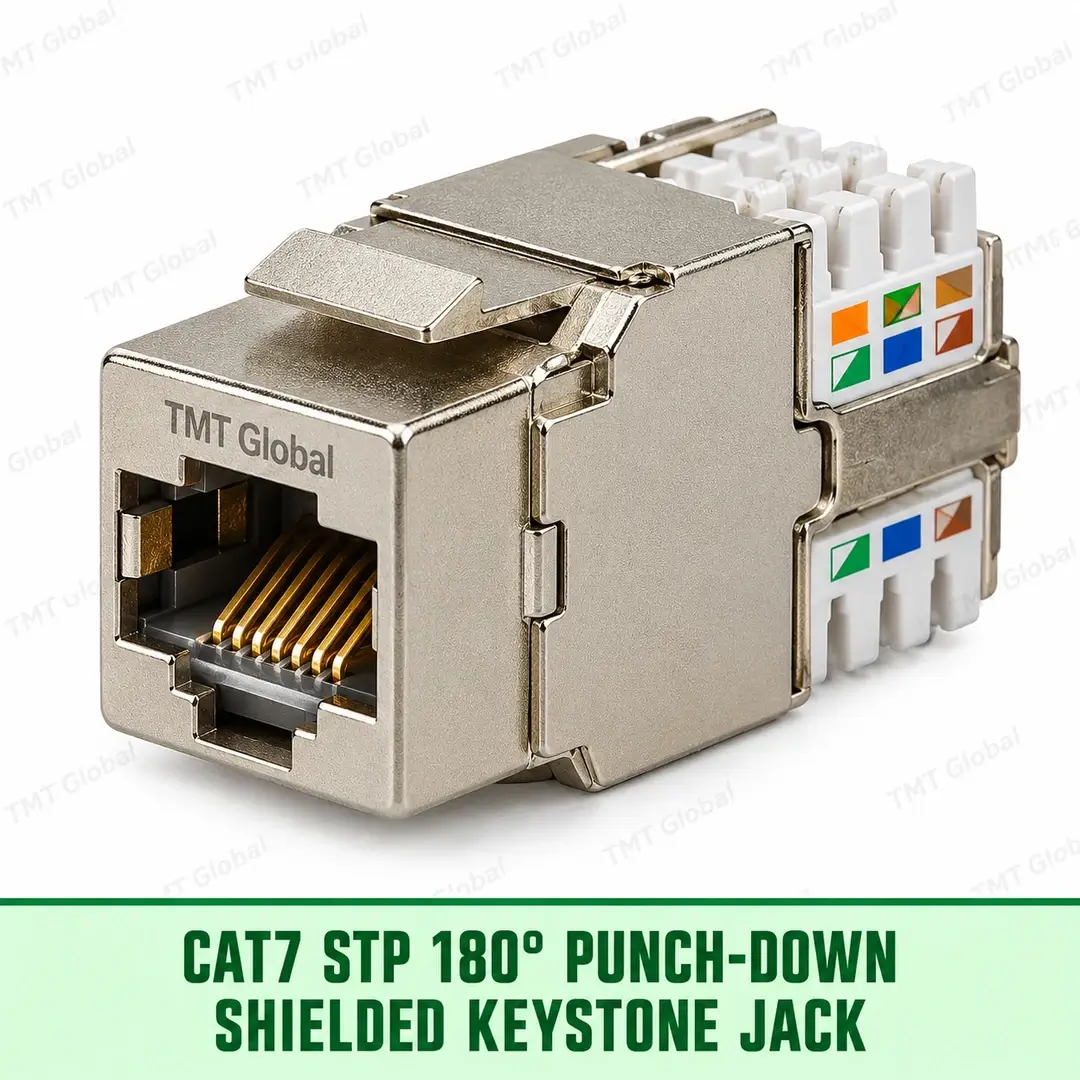

Cat7 STP 180° Punch-Down Shielded Keystone Jack
FEATURES
- Cat7 / Class F transmission target
- 1–600 MHz performance range
- S/FTP / Shielded RJ45 8P8C interface
- Punch-down IDC termination
- T568A / T568B wiring identification
- 360° shield continuity / earthing path
| Brand | TMT Global |
|---|
Supplied in Oman by Khan Cables from our Muscat office and showroom in Ruwi, for projects in Muscat and across the Sultanate. Request a quote
Full specifications & datasheet: tmtglobal.co.uk →
Choosing the Cat7 STP 180° Punch-Down Shielded Keystone Jack
Cat7-rated jacks match screened Cat7 cable for high-noise environments. The shielded body gives 360° screen continuity; use it only with shielded (F/UTP, S/FTP) cable and an earthed patch panel. The 180° straight-through entry suits patch panels and deep back boxes. Punch-down termination needs an IDC tool and gives a very consistent connection.
Order code: TMT-07SBS2. Send us the quantity for a project quotation and datasheet.
TMT Cat7 STP 180° Punch-Down Shielded Keystone Jack Series
The TMT Global Cat7 STP 180° Punch-Down Shielded Keystone Jack is a controlled keystone connectivity product for Cat7 / Class F structured cabling terminations. It provides a standards-aligned RJ45 8P8C interface with punch-down idc termination, 180° straight geometry and s/ftp / shielded construction. The product is intended for professional network installations where repeatable termination, reliable contact performance and consistent TMT specification control are required.
FEATURES
- Cat7 / Class F transmission target
- 1–600 MHz performance range
- S/FTP / Shielded RJ45 8P8C interface
- Punch-down IDC termination
- T568A / T568B wiring identification
- 360° shield continuity / earthing path
APPLICATIONS
- High-performance shielded LAN
- Data centres
- Industrial networks
- Class F installations
- High-EMI environments
Technical Specification
STANDARDS & COMPLIANCE
- IEC 60603-7-7:2010
- ISO/IEC 11801-1 structured cabling system application
- Shield continuity / bonding path for screened cabling
- ANSI/TIA-568.2-D where applicable
- EN 50173 where applicable
- UL 94 V-0 polymer components
- RoHS
- REACH
AUTHORITY FIRE-PERFORMANCE NOTE
Keystone jacks are connectivity hardware, not permanent telecom cables. Euroclass/CPR cable fire-rating and IEC/EN 60332-1-2 cable flame tests are not applied to this hardware unless a specific accredited assembly test covers the product. Use UL 94 V-0 for applicable plastic parts.
PRODUCT CONTROL STATEMENT
This SKU is defined by the published TMT website/datasheet specification. Any OEM production must match the listed construction, interface, category, termination and compliance requirements and provide supporting test/conformity evidence.
