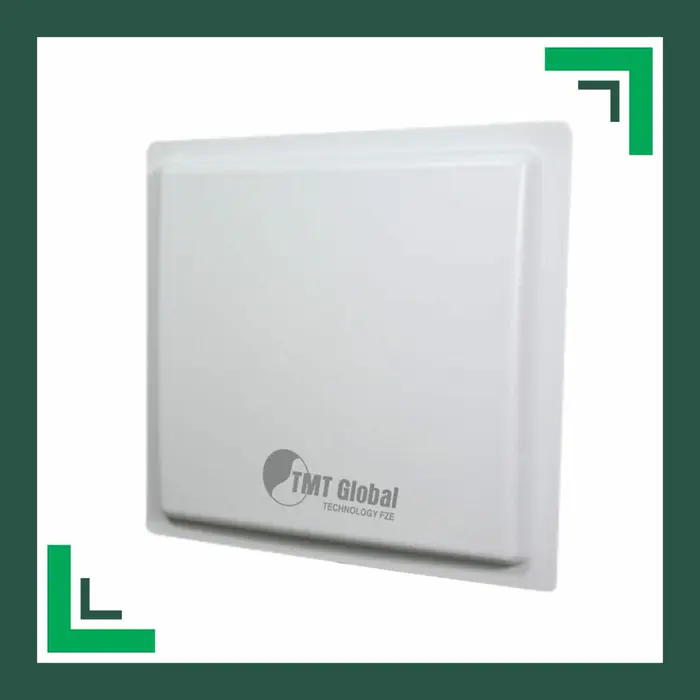

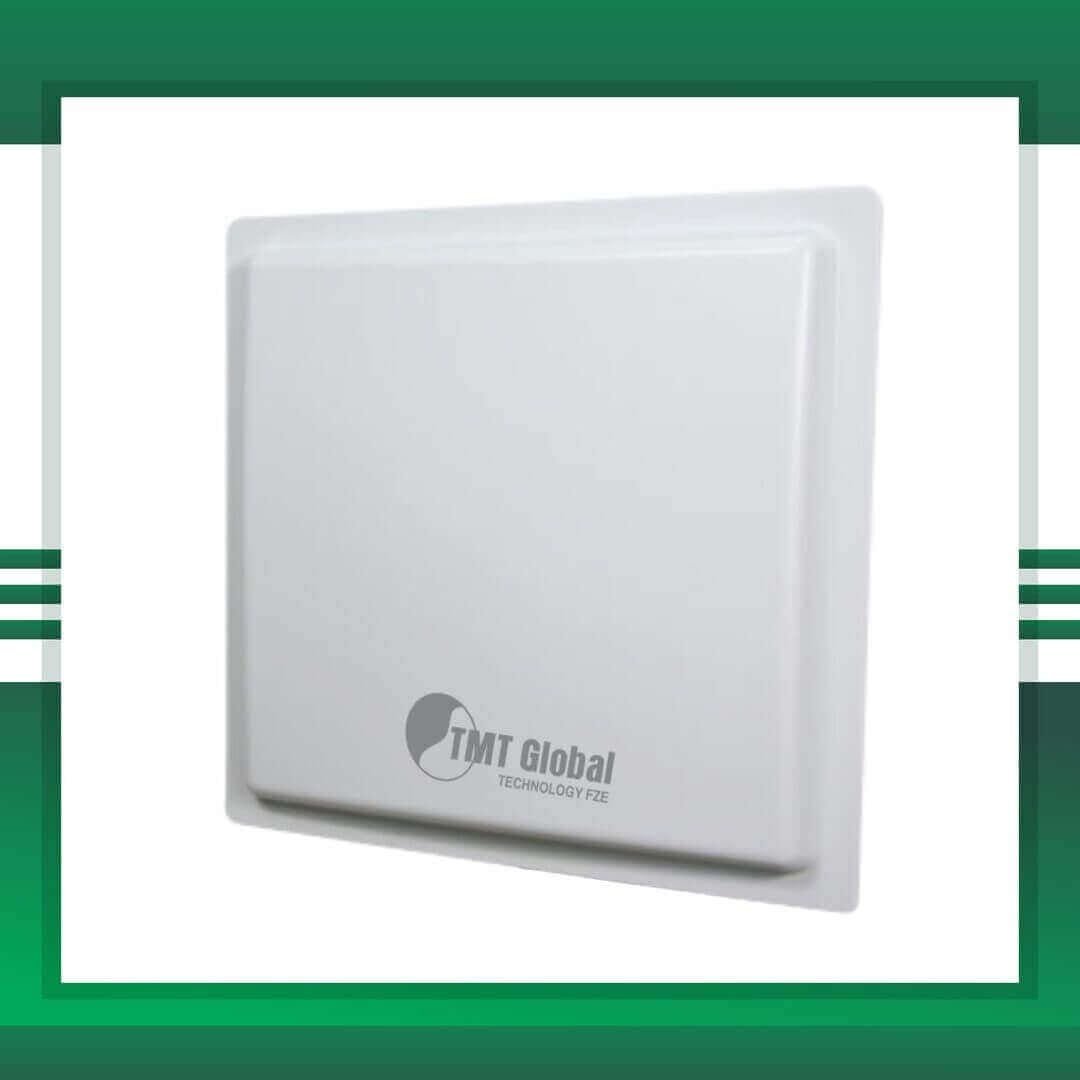

long range uhf reader up to 15m range

 TMT Global long range uhf reader up to 15m range

TMT Global long range uhf reader up to 15m range Integrated Reader widely applied in intelligent Transportation, customs access Management, Warehouse Logistics.

Functions

• UHF (860-868MHz) Band, Equipped with 12 DBI Antenna
• Support Standard RS-232, Wigand Interface
• Multi-Group I/O Ports, Controlling the Functional Mode of the Reader/writer
• Order-trigger, set Time-Trigger and out-trigger Suitable for Customer’s Applications
• Upgrade Firmware by Serial port online
• Strong API user interface

Applications

Vehicle Parking, intelligent Weighing
Warehouse, logistics Management
Asset management
Production line Management

Performance Index
Operating Frequency: 860-868MHz, RF band customized (optional)
Frequency Hopping: FHSS or Fixed Frequency
Power Output: +20dBm ~ +30dBm@50Ω load, 1dBm each step
Antenna: Built-in 12dBi linear polarization antenna (horizontal/vertical customized)
Communication Interfaces: RS-232, Wiegand 26/34
Optional Interfaces:RS-485, 802.11 WIFI Module and 10M/100M Ethernet interfaces
I/O Interfaces: 2-channel Relay Output, 2-channel Trigger Input, 2-channel level Output (optional)
Firmware Update: Firmware Upgrade
Application Software Platform: API(C++, C#) development kit (can be customized)

Tag Operation

Tag Protocol: ISO18000-6B, EPC Class 1 Gen 2(ISO18000-6C)
Reading Range: 0~15m
Writing Range: 0~5m
Mechanical/Electric Performance
IP Rating: IP66
Indicator: Buzzer and LED(Power, Antenna, Reading/Writing)
Power: DC 12V
Power Assumption: 2W(Standby), 10W(Working)
Product Dimension: 445mm x 445mm x 78mm (LxWxH)
Package Dimension: 600mm x 500mm x 110mm (LxWxH)
Net Weight: 3.5kg
Gross Weight: 6.23kg
Operating Temperature: -40℃ ~ +60℃
Storage Temperature: -60℃ ~ +80℃
Humidity: 5%～ 95%(non-condensing)
