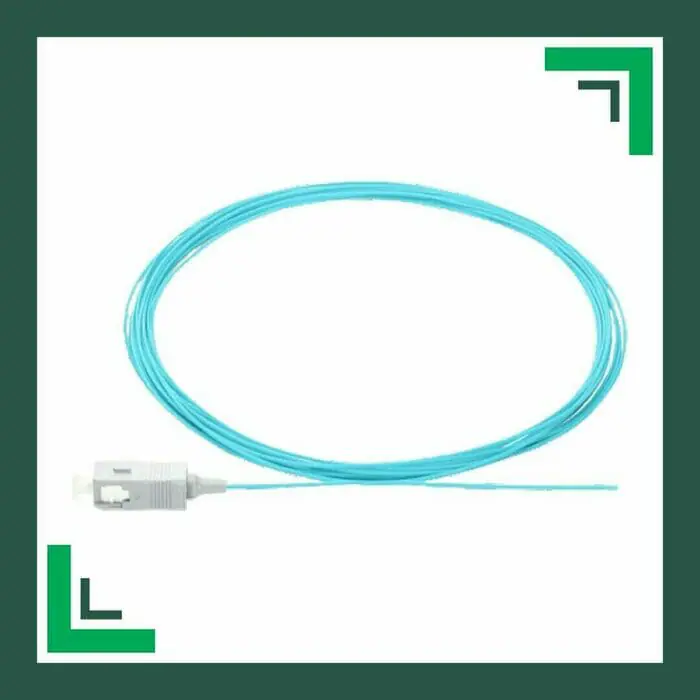

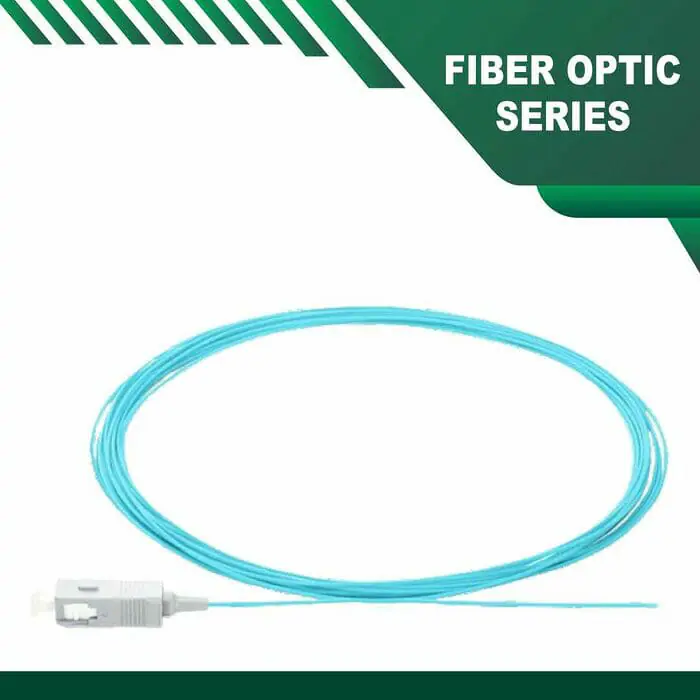

Pigtails Fiber OM3 Multimode SC-UPC LSZH 1m

TMT Global Fiber Pigtail OM3 MM SC-UPC Connector LSZH 1m

TMT Global Technology LTD aims to provide the best quality products r Structured Cabling Systems Copper And Fiber Optics Range Access Control Systems Gate Automation Lighting Control Systems Pir Motion Sensors UHF Long Range Readers Automatic Parking Solutions SMATV Systems Audio Video Intercom Systems Audio Visual Systems Public Address Systems. Industrial and Building automation Cables and Accessories which leads to Satisfaction and reliability to customers.Pigtails Fiber OM3 Multimode SC-UPC LSZH 1m

Optical Specification
Connector: SC,LC,FC,ST
Polish Type:APC,UPC,PC
Fiber  Mode: 9/125um,50/125um
Fiber Grade: ITU-TG.652D, G.657A1 /A2,OM2,OM3,OM4
Wavelength: SM:1310/1550nm, MM:850nm
Cable Diameter: 0.9 mm ,2.0MM,3.0MM
Insertion loss: ≤0.2dB, ≤0.12dB
Return loss: SM UPC ≥ 50dB(min), SM APC ≥ 60dB(min), MM P ≥ 35dB(min)
Interchangeability: ≤0.2dB
Vibration: ≤0.2dB
Impact (Nm): 0.2
Durability: >1000 Times
Minimum Bend Radius: 7.5mm
Buffer: Tight buffer,900um
Operating temperature: -45~75°C
Storage temperature: -45~85°C
Jacket Material: LSZH/PVC/OFNR/OFNP
Color: Yellow,Orange,Beige,Aqua,Purple
