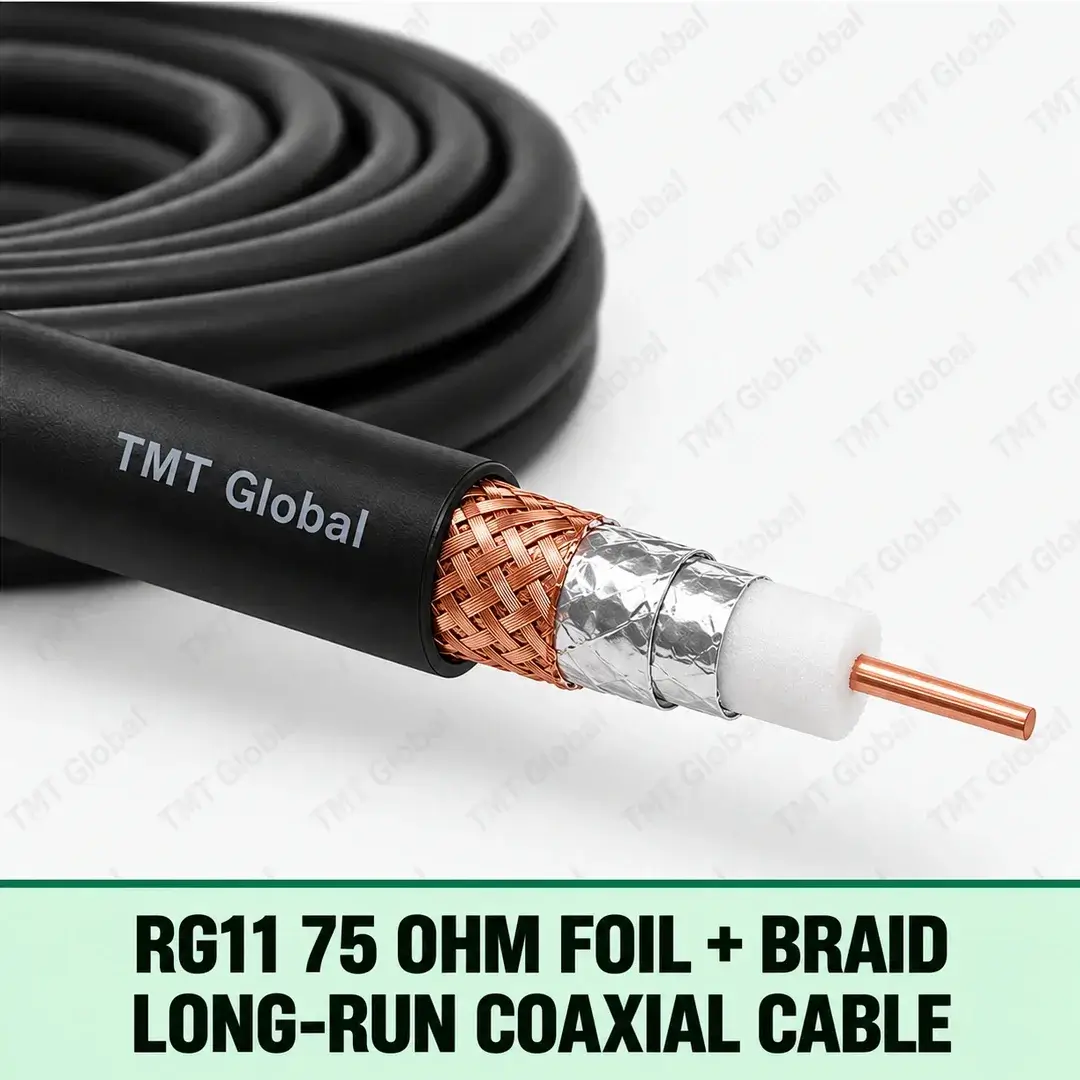

TMT Global RG11 75 Ohm Foil + Braid Long-Run Coaxial Cable, single RG11 coax with one centered copper conductor, white foam dielectric, one foil shield and one copper braid shield, black jacket, no extra cores.

RG11 75 Ohm Foil + Braid Long-Run Coaxial Cable

KEY FEATURES

  • RG11 controlled construction
  • 75 Ω nominal impedance family
  • 14 AWG copper-clad steel centre conductor
  • Foil + braid screening construction
  • 305 m standard package
Chat with Sales
AWG18 awg
BrandTMT Global
ColourBlack, White
Jacket TypePVC, LSZH, PE Outdoor
Length305 m

Supplied in Oman by Khan Cables from our Muscat office and showroom in Ruwi, for projects in Muscat and across the Sultanate. Request a quote

Full specifications & datasheet: tmtglobal.co.uk →

View / Print DatasheetContact Sales
Description

TMT Global RG11 75 Ohm Foil + Braid Long-Run Coaxial Cable Series

TMT Global RG11 75 Ohm Foil + Braid Long-Run Coaxial Cable is a controlled standalone coaxial-cable family for professional ELV, video and RF installations. Long-run RG11 construction with larger 14 AWG centre conductor for lower-loss 75 ohm video and RF distribution. This reuses the existing RG11 long-run product position. Jacket and colour are exact searchable Series ordering variants; the centre-conductor and shield construction are fixed by the family.

KEY FEATURES

  • RG11 controlled construction
  • 75 Ω nominal impedance family
  • 14 AWG copper-clad steel centre conductor
  • Foil + braid screening construction
  • 305 m standard package

APPLICATIONS

  • Long TV / CATV runs
  • Head-end distribution
  • Outdoor RF backbone

Technical Specification
