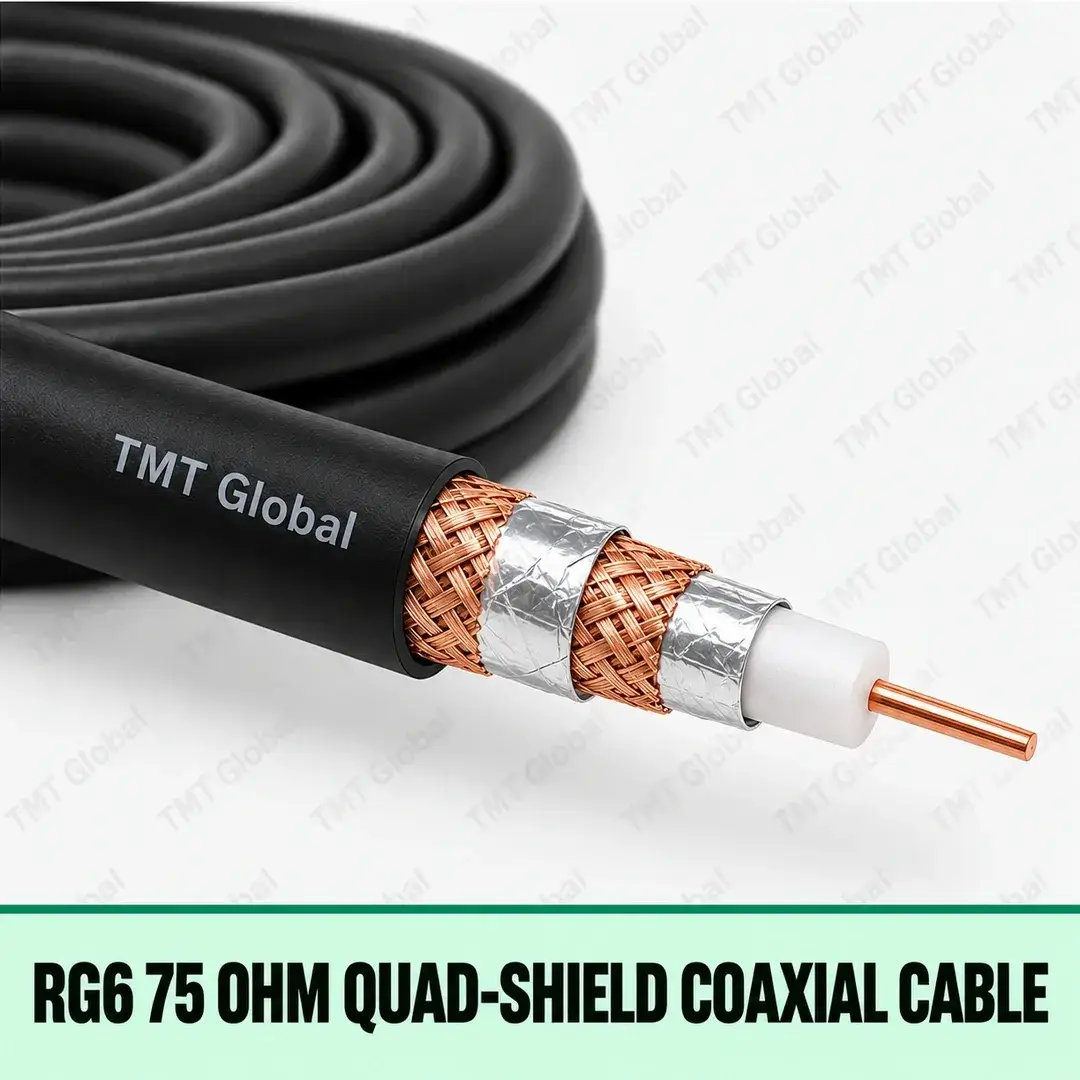

TMT Global RG6 75 Ohm Quad-Shield Coaxial Cable, single RG6 coax cable, center copper conductor with white dielectric, exactly two foil shields and two copper-braid layers, black jacket.

RG6 75 Ohm Quad-Shield Coaxial Cable

KEY FEATURES

  • RG6 controlled construction
  • 75 Ω nominal impedance family
  • 18 AWG copper-clad steel centre conductor
  • Quad shield screening construction
  • 305 m standard package



Chat with Sales
AWG18 awg
BrandTMT Global
ColourBlack, White
Jacket TypePVC, LSZH, PE Outdoor
Length305 m

Supplied in Oman by Khan Cables from our Muscat office and showroom in Ruwi, for projects in Muscat and across the Sultanate. Request a quote

Full specifications & datasheet: tmtglobal.co.uk →

View / Print DatasheetContact Sales
Description

TMT Global RG6 75 Ohm Quad-Shield Coaxial Cable Series

TMT Global RG6 75 Ohm Quad-Shield Coaxial Cable is a controlled standalone coaxial-cable family for professional ELV, video and RF installations. Series-6 quad-shield construction for RF/video distribution where higher screening performance is required. It is separated from standard RG6 because the shield stack and centre-conductor construction change materially. Jacket and colour are exact searchable Series ordering variants; the centre-conductor and shield construction are fixed by the family.

KEY FEATURES

  • RG6 controlled construction
  • 75 Ω nominal impedance family
  • 18 AWG copper-clad steel centre conductor
  • Quad shield screening construction
  • 305 m standard package

APPLICATIONS

  • Satellite distribution
  • CATV / broadband video
  • High-interference RF routes

Technical Specification
