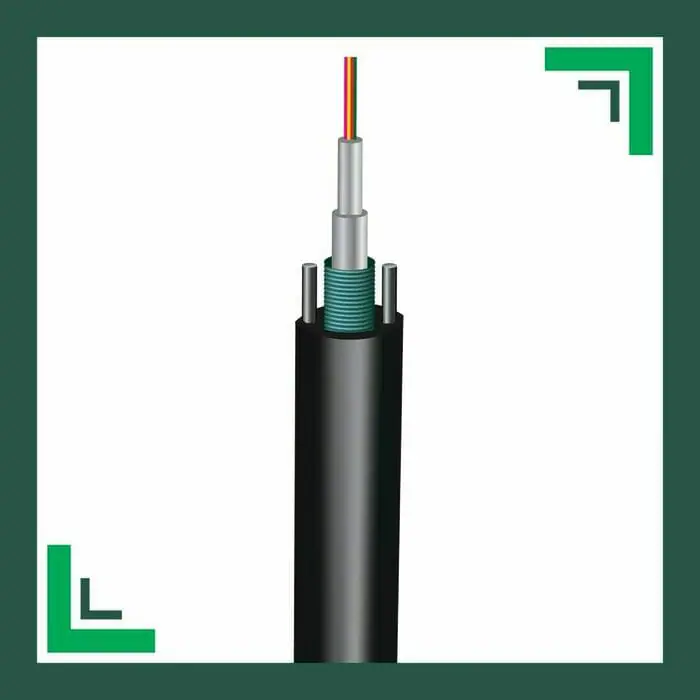

48 core fiber optic cable Multi Core single mode Armored G652D
د.إ 5,00
General Specification
Products : Fiber optic cable single mode
Fiber Count : 48
Fiber Type : ITU-T G.657A1/A2,G.652D
Armored : Corrugated Steel Tape
Outer Jacket : PE
Attenuation (max/KM) : 0.40 dB/km (1310 nm) 0.25 dB/km (1550 nm)
Length/ Drum : 2000 m Drum ±5%
Product ID : TMT-481LPK
| color |
Black |
|---|---|
| Brand |
TMT GLOBAL |
TMT Global oman fiber optic cable Multi Core single mode Armored 48 core G652D
TMT Global Technology LTD 48 core fiber optic cable Multi Core single mode Armored G652D aims to provide the best quality products r Structured Cabling Systems Copper And Fiber Optics Range Access Control Systems Gate Automation Lighting Control Systems Pir Motion Sensors UHF Long Range Readers Automatic Parking Solutions SMATV Systems Audio Video Intercom Systems Audio fiber optic cable Multi Core single mode Armored 48 core G652D Visual Systems Public Address Systems. Industrial and Building automation Cables and Accessories which leads to Satisfaction and reliability to customers.
PHYSICAL DESCRIPTION
- Products: Fiber optic cable single mode
- Tube Filling Compound: Thixotropic jelly
- Fiber Type: ITU-T G.657A1/A2,G.652D
- Tube material: PBT ( Polybutylene Terephthalate)
- Armored: Corrugated steel tape
Packing Detail
Fiber Count: 6,8,12,24,48,96,128
Tube Outer/Inner Diameter(mm): 3.0/2.0 ±
Cable Diameter(mm): 7.2*-12
Cable Weight(kg/km): 45±
Length/ Drum: 2000 m Drum ±5%
Ripcord: Polyester cord
Outer Jacket: PE,MDPE, LSZH
Optical Characteristics
Fiber type ITU-T G.652D ITU-T G.657/A1 ITU-T G.657/A2
Attenuation (max) 0.40 dB/km (1310 nm) 0.40 dB/km (1310 nm) 0.35 dB/km (1310 nm)
0.25 dB/km (1550 nm) 0.25 dB/km (1550 nm) 0.22 dB/km (1550 nm)
MFD 9.0±0.4 μm (1310 nm) 9.0±0.4 μm (1310 nm) 8.6 ± 0.4 μm (1310 nm)
10.1±0.5 μm (1550 nm) 10.1±0.5 μm (1550 nm)
Cladding diameter 125 ± 0.3 μm 125 ± 0.7 μm 125 ± 0.7 μm
Core/Clad Concentricity error ≤ 0.5 μm ≤ 0.5 μm ≤ 0.5 μm
Zero dispersion wavelength 1300nm≤ ≤1324nm 1300nm≤ ≤1324nm 1302nm≤ ≤1322nm
Cladding non-circularity ≤ 0.7 % ≤ 0.7 % 1%
Coating diameter 245 ± 10 μm 242 ± 7 μm 240 ± 5 μm
Cut Off Wavelength ≤ 1260nm ≤ 1260nm ≤ 1260nm
Proof Test ≥ 1% (100kpsi or 0.7GPa) ≥ 1% (100kpsi or 0.7GPa) ≥ 1% (100kpsi or 0.7GPa)
Macro bending Attenuation : (10 turn on a 15 mm radius mandrel) ≤ 0.25 dB @1550 nm ≤ 0.5dB @1550 nm
