cat6 23awg 4pair 305m fahad cables green

TMT Global oman cat6 23awg 4pair 305m fahad cables green

TMT Global cat6 23awg 4pair 305m fahad cables are Manufactured Tested and Complied with IEC 60332-1-2 EN 50173-1:2011 ISO/IEC11801:2011(Ed. 2.2) ANSI/TIA/EIA-568.2-D IEC61935-2:2010(Ed.3.0) EN 50173-2:2007 including Amendment A1:2010 Requirements for Patch Cord Assemblies and Provide High Performance levels for structured cabling systems.

Introduction to TMT Global CAT6 Cables

TMT Global has established itself as a prominent manufacturer in the networking solutions industry, renowned for its commitment to quality and innovation. Specializing in high-performance cables, TMT Global focuses on providing reliable connectivity options that meet the demands of modern communication infrastructures. Among their offerings, the CAT6 23AWG 4Pair 305m Fahad cables stand out due to their advanced specifications and features designed for enhanced network performance.

These CAT6 cables are engineered to support data transmission speeds of up to 1 Gbps, making them an ideal choice for both residential and commercial applications. With four twisted pairs of 23 AWG copper wiring, these cables ensure reduced crosstalk and interference, which are critical factors in preserving the integrity and speed of network connections. The robust construction not only enhances performance but also contributes to the longevity and durability of the product, essential for any networking environment.

Moreover, TMT Global’s commitment to sustainability is reflected in their manufacturing processes and materials. The CAT6 23AWG 4Pair cables are designed to minimize environmental impact while delivering outstanding performance. This focus on eco-friendly practices aligns with the growing trend of seeking green technology solutions in various sectors, making TMT Global products a responsible choice for conscientious consumers.

APPLICATION

• 10BASE-T, 100BASE-TX Fast Ethernet,
• 1000BASE-T (IEEE802.3
• 100VG-AnyLAN (IEEE802.12)
• 550 MHz Broadband Video
• Voice, T1, ISDN
• 155/ 622 Mbps ATM
• Power over Ethernet (POE)

GENERAL SPECIFICATION

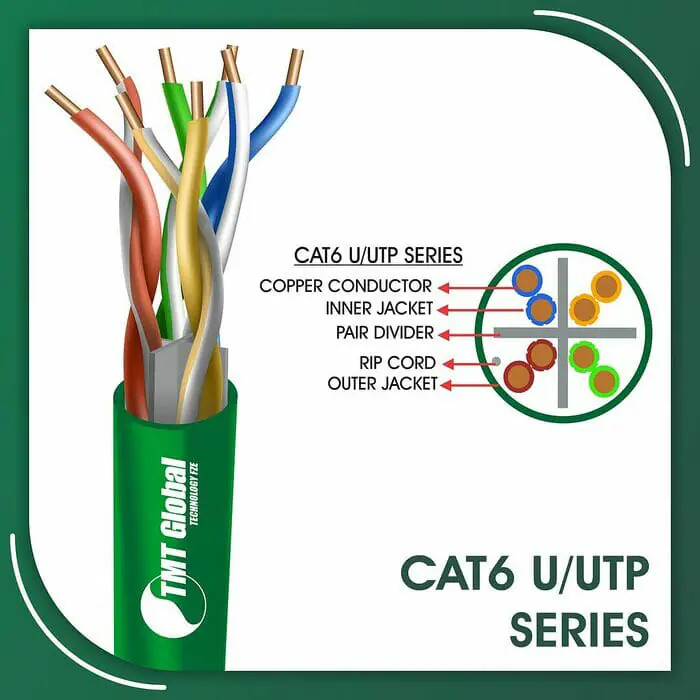

4 Pairs UnShielded Twisted Pair (UTP) Cable
Gold Plated: 30U”
Color Code: Aqua/Black/Blue/green/Grey/Orange/Red/Violet/White/Yellow r custom color
Length : 0.12/0.15/0.50/1/2/3/5/8/10/15/20/25/30/40/50/70/100/meter r custom Length
Contact blade: Phosphor Bronze
Insulation Material: HD-PE-PVC-LSZH
Jacket Material: PVC UL94V-0

PHYSICAL AND MECHANICAL PROPERTIES
Conductor Resistance: ≤5Ω – ≤20Ω
Insulation Resistance: ≥10MΩ
Characteristic Impedance: 100 ― 6 Ohm @ 1-250MHz -1-500 MHz
Contact Resistance: 20 m Ohm max
Resistance Unbalance: 2% max
Dielectric strength: 1000 volts/1 minute min rms
Cable to Plug Tensile Strength: 9 Kgf (90N) min
Durability: 750
Temperature Operating Range: -25°C to 70°C
Country Of Origin: Made in UAE
By Fahad Cables Industry FZE
